Chapter 4 Instruction for installation

4.1 Preparation before installation

Installation and connection of CV730 camera requires special skills. To install by yourself,

please follow necessary steps, ensure steady and tight installation of the device, and pay

attention to your safety to avoid any accident.

4.1.1 Ensure the safety of the installation environment. Please do not install the device on

unstable ceiling or in a place where the device is in danger of falling to avoid any accident.

4.1.2 Please check whether accessories in the box are complete or not. Please contact the

supplier for any shortage, and make sure to keep the accessories in the box intact.

4.1.3 Please choose a proper place for installation of camera in advance. Please determine

an installation place according to the following requirements

4.1.1.1 Confirm the position for the object to be captured.

4.1.1.2 Confirm whether the camera is set at a proper distance from other light sources.

4.2 Instruction for installation

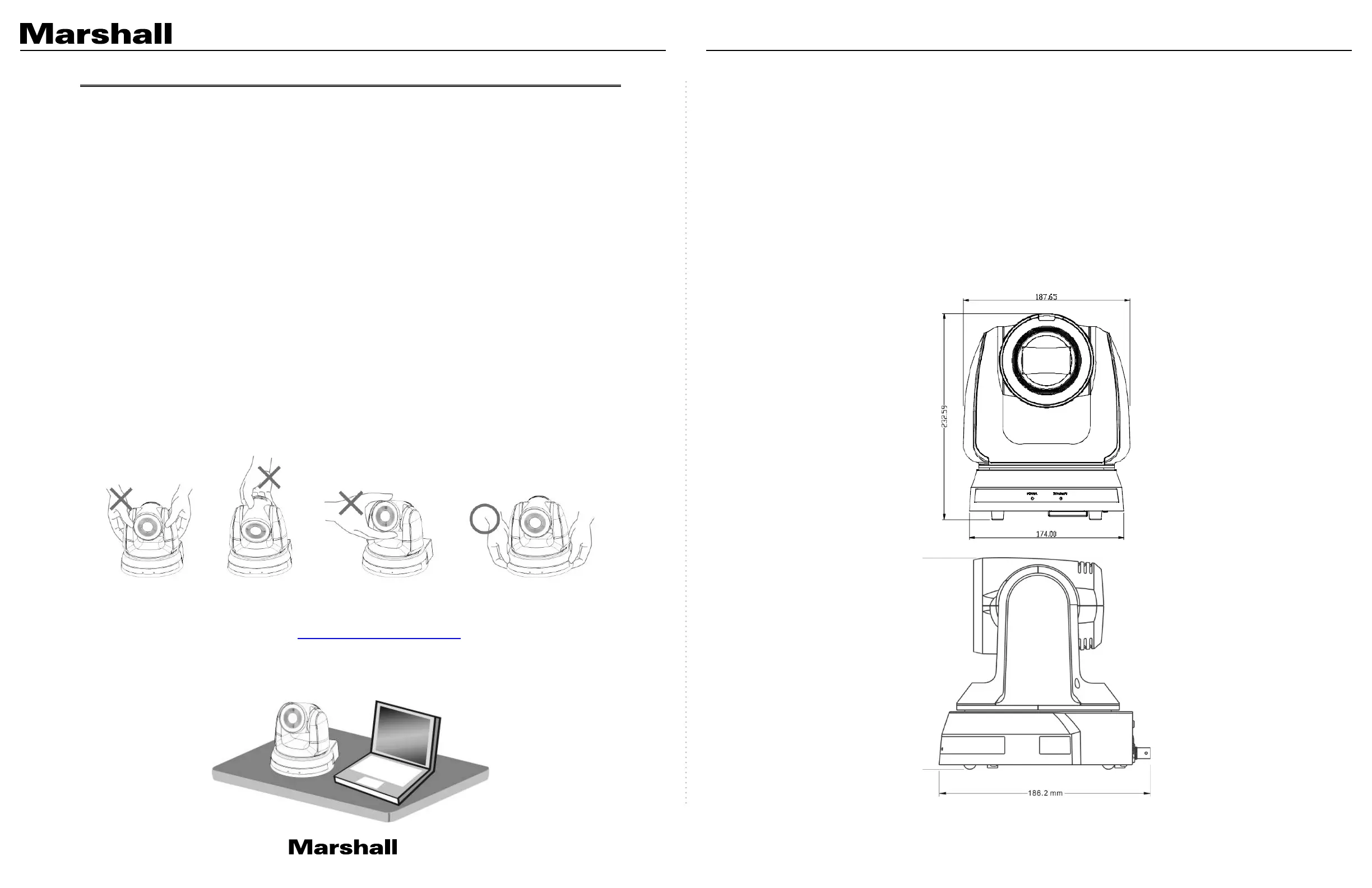

4.2.1 I would like to install camera on the desk

4.2.1.1 Precautions for installation

 Please install the machine on a flat desk

 Do not grab the camera head by hand when handling the device

 Do not rotate the camera head by hand. Improper rotation may result in breakdown

of the camera

4.2.1.2 Installation steps

1. Please adjust DIP switch at first prior to installation

<Remark> Please refer to Chapter 7 DIP Switch Setting for the relevant

descriptions on DIP switch.

2. Place the camera on a flat desk directly to ensure the normal vertical and

horizontal operation of the machine

4.2.2 I would like to install the camera on the ceiling

4.2.2.1 Prepare for the parts and equipment required during the installation

1. Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)

2. Screw for locking on ceiling mounted hanger x 4

3. Drilling machine, screw driver, ladder

4.2.2.2 Camera Size

Length x Width x Height : 186 x 232.6 x 187.7 mm

Weight : 3.0 Kg
