Marshall Amplification CV730 - 4.2.2.3 Max Rotation Dimensions; 4.2.2.4 Size Diagram

12

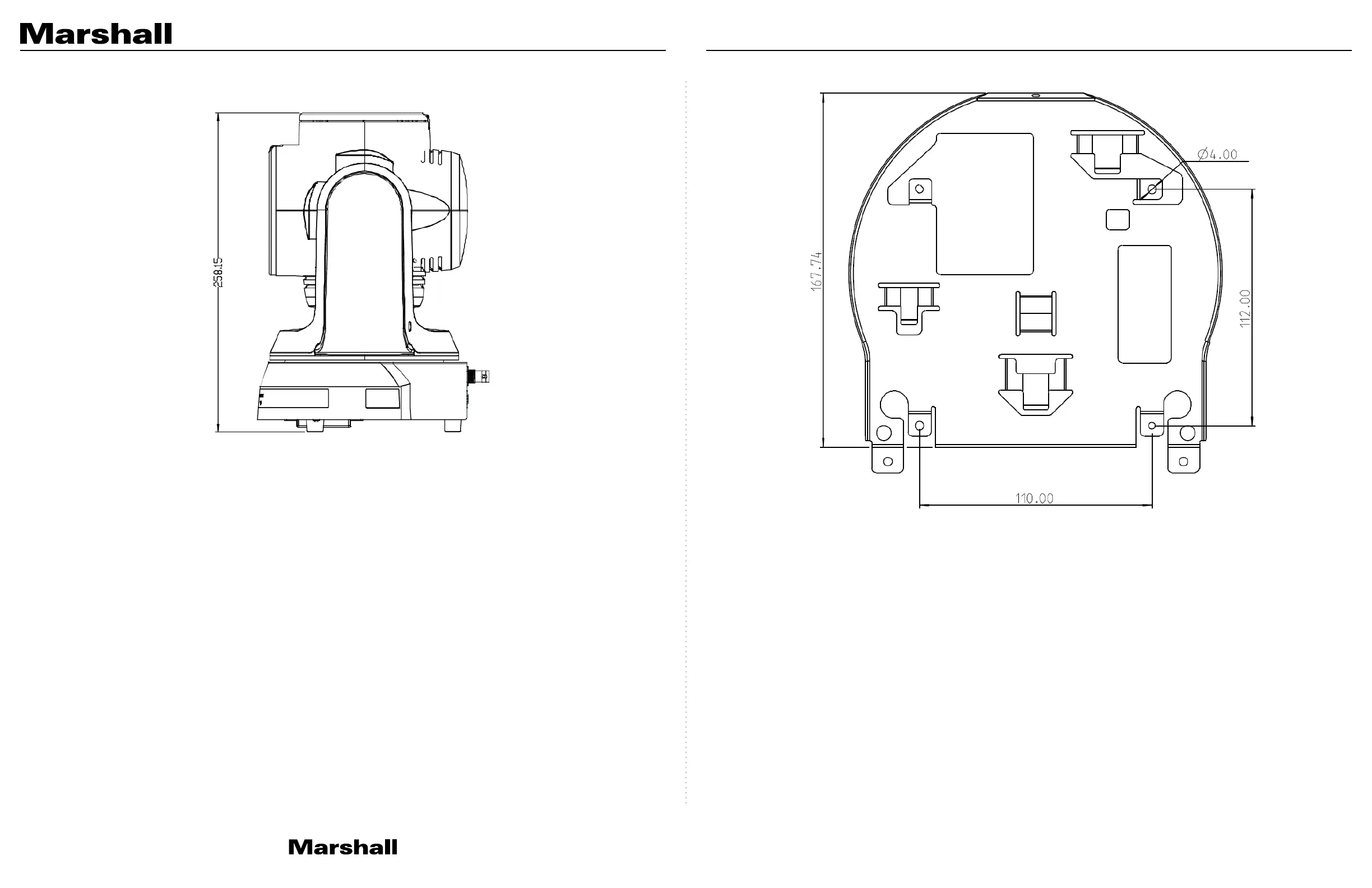

4.2.2.3 Max. rotation dimension of camera
4.2.2.4 Size Diagram
1. Bottom of machine
The camera can be mounted on a 1/4”, -
20 UNC PTZ tripod deck by using the lock
holes on the bottom for the tripod
13
CV730 Manual
www.marshall-usa.com11 12
