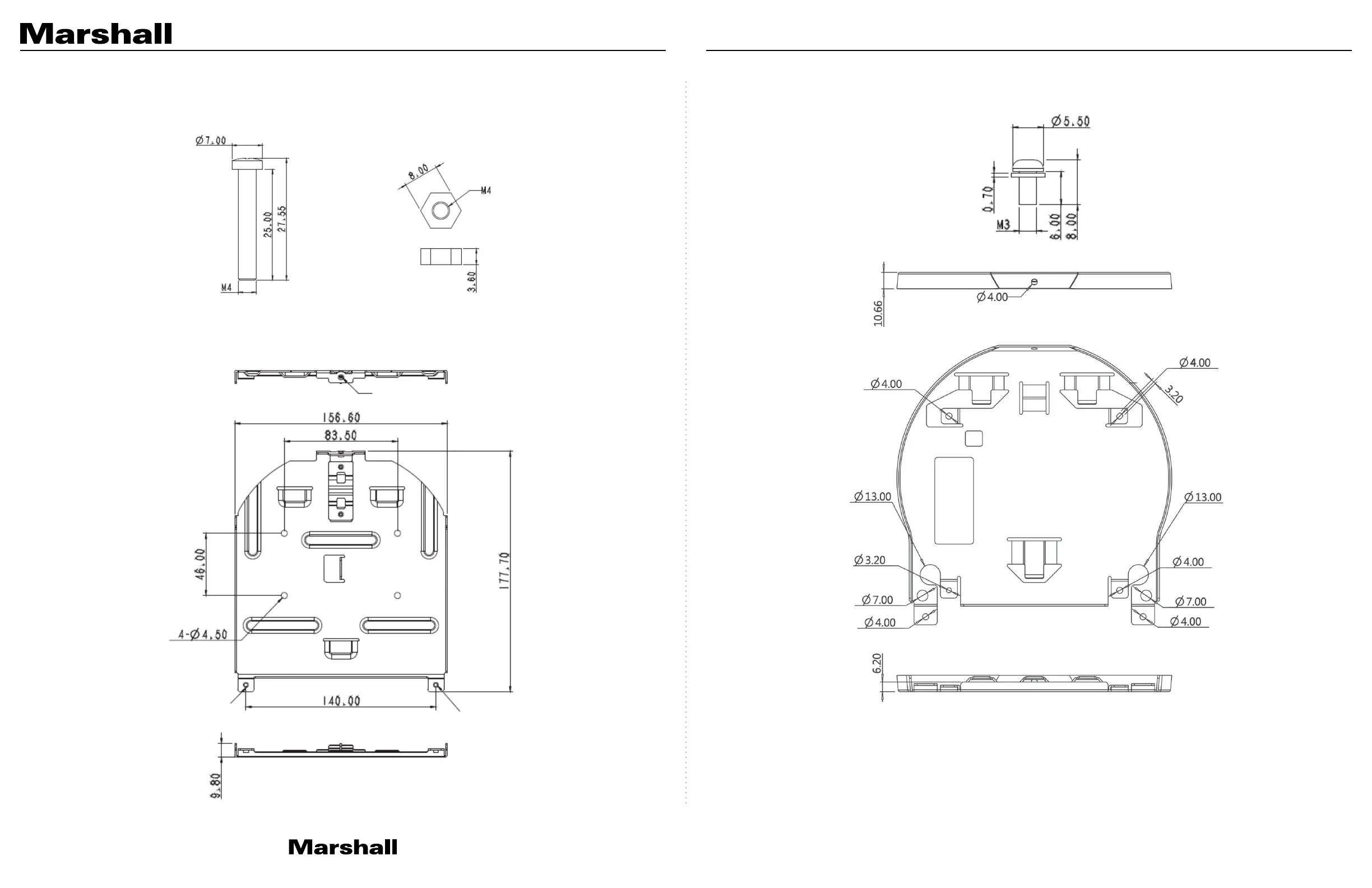

2. Metal Plate size diagram
 Metal plate B - ceiling side
Metal plate B locking screw
Metal plate B locking bolt
M3 threaded hole
M3 threaded hole
M3 threaded hole
15
 Metal plate A - machine side
Metal plate A locking screw
