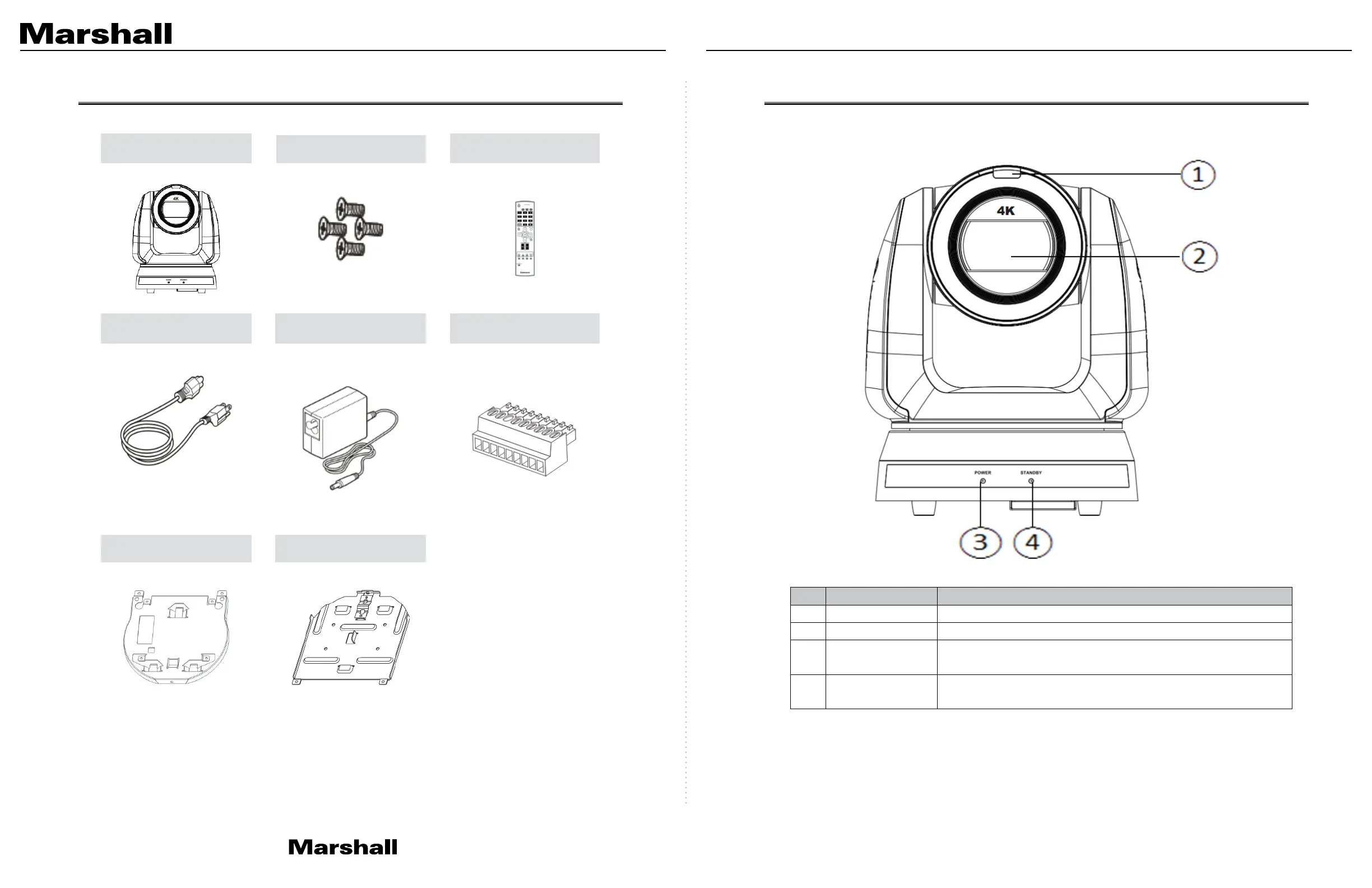

Chapter 2 Package Contents
CV730
Instruction for
installation
Remote Control
Power Cord Power Adapter RS-422 Connector
Appearance may vary
depending on
country/region
Metal Plate A Metal Plate B M3 Screws
Silver x8 / Black x2
Quick Installation Guide
6
Chapter 3 Function Introduction
3.1 I/O functions Introduction
3.1.1 Front View
NO.
Item
Function Descriptions
1.
Tally Lamp
Display the Tally Lamp status of the camera
2.
Camera lens
30x HD camera lens
3. Power LED
indicator
Display the status of the camera, please refer to 3.2 Description of
LED indicator
4. Standby LED
indicator
Display the status of the camera, please refer to 3.2 Description of
LED indicator
5
Chapter 2 Package Contents
CV730
Instruction for
installation
Remote Control
Power Cord Power Adapter RS-422 Connector
Appearance may vary
depending on
country/region
Metal Plate A Metal Plate B
M3 Screws
Silver x8 / Black x2
Quick Installation Guide
CV730 Manual
