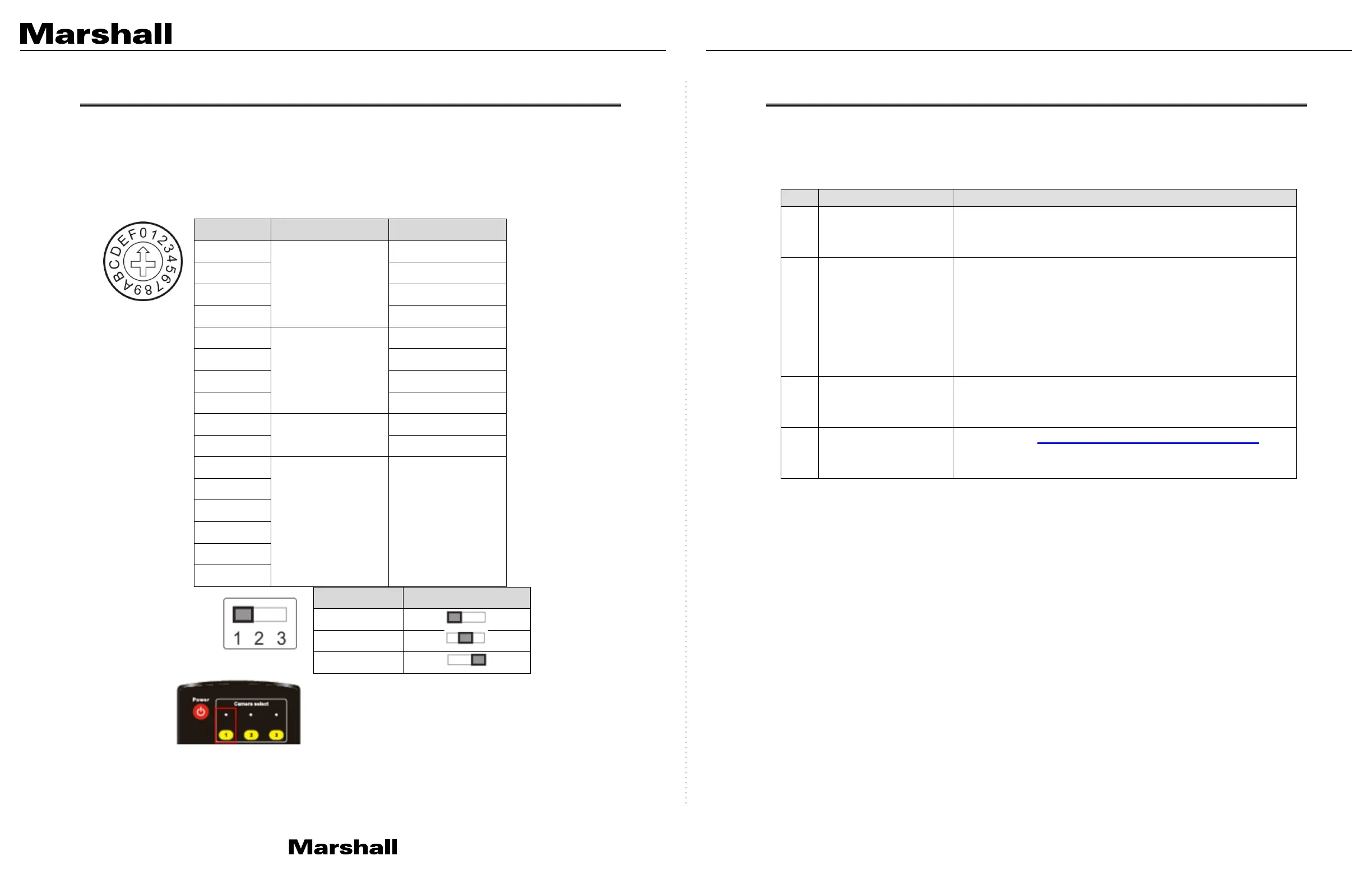

Chapter 7 DIP Switch Setting
7.1 DIP SWITCH
7.1.1 OUTPUT Switch (Switch to different output resolutions)
To switch via the OSD/ RS-232 Command is also available based on the last
executed action
7.1.2 IR SELECT
(Selected by
Remote control)
When using the
remote control,
please make sure
the settings of IR
SELECT and the
Camera Select of
the remote control are
consistent
ID
Setting
1
2
3
ID
Resolution
Frame Rate
0
3840 x 2160
59.94
1
50
2
29.97
3
25
4
1920 x 1080
59.94
5
50
6
29.97
7
25
8
1280 x 720
59.94
9
50
A
Reserved Reserved
B
C
D
E
F
49
Chapter 8 Troubleshooting
This chapter describes problems you may encounter while using CV730. If you have
questions, please refer to related chapters and follow all the suggested solutions. If the problem
still occurred, please contact your distributor or the service center.
No.
Problems
Solutions
1.
Boot without power
signal
1. Make sure you have plugged in the power cord.
2. When using a PoE connection, ensure that the power supply
supports POE++ (IEEE 802.3bt) hubs
2.
There is no image
output from CV730
1. Check the power supply or PoE supply functions.
2. Confirm the output signals are in streaming output.
3. Confirm whether the camera resolution can be used together
with the monitor equipment
 If 4k output, confirm the monitor equipment supports 4K
output
4. Replace the cables and make sure they are not faulty.
3.
RS-232 cannot be
controlled
1. Confirm the connection is correct (RS-232 In/ Out)
2. Please make sure the Baud rate setting is the same as the
control equipment
4.
Whether the Internet
can be used for
operation
Please refer to Chapter 6 Network Function Description for
the Internet usage
CV730 Manual
