VS-102-HDSDI User Manual
IP Server Instruction Manual
9/61

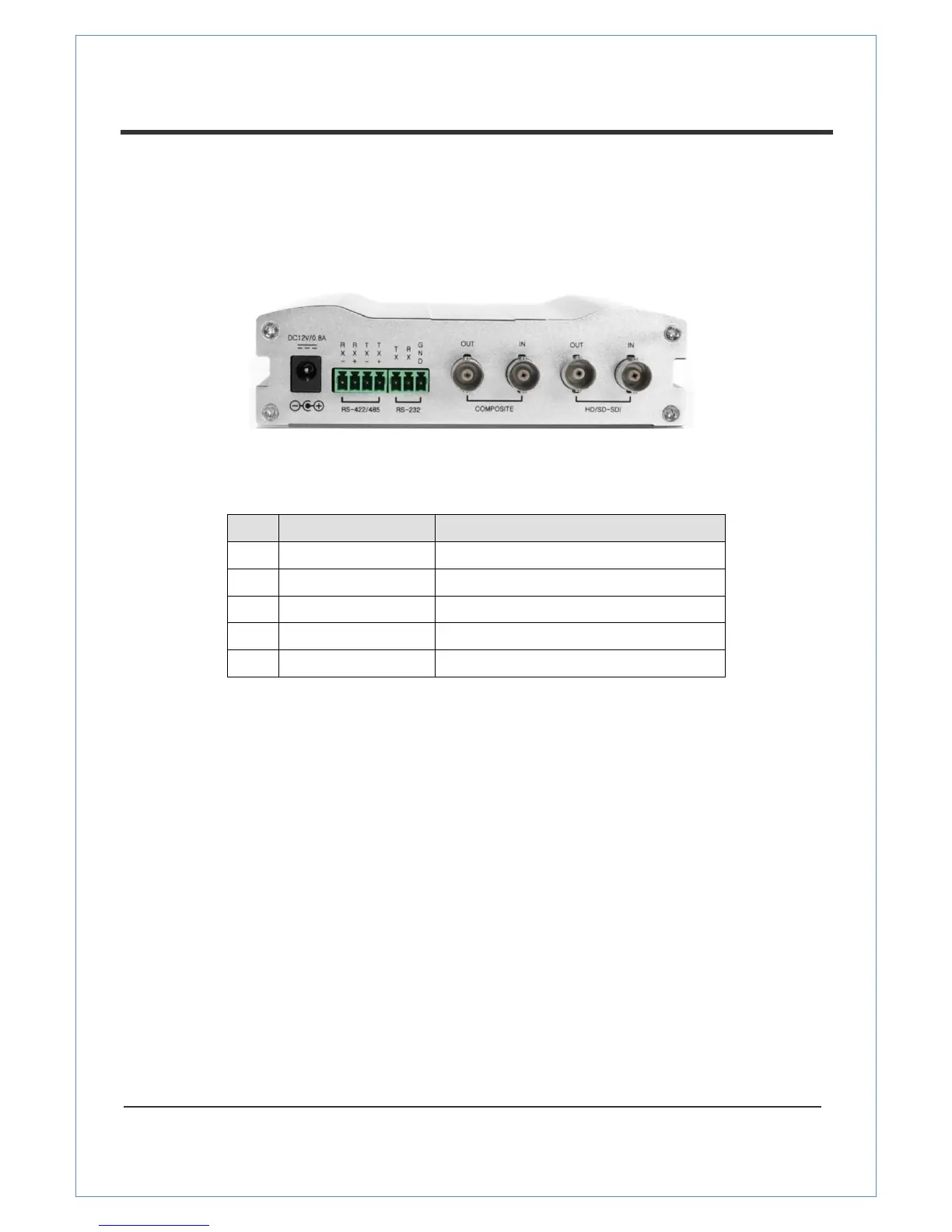

 Rear View
No.
Part
Function
①
Power
DC +12V power input
②
RS-422/485
Serial port for PTZ control and etc
③
RS-232
Serial port for PTZ control and etc
④
Composite In/ Output
Composite Video Input / Output
⑤
HD/SD-SDI In/Output
HD/SD-SDI Video Input / Output
※HD/SD-SDI output is optional
①
②
③
④
⑤
