Marshall Electronics VS-102-HDSDI - Part Names and Functions; Front View

VS-102-HDSDI User Manual
IP Server Instruction Manual
8/61

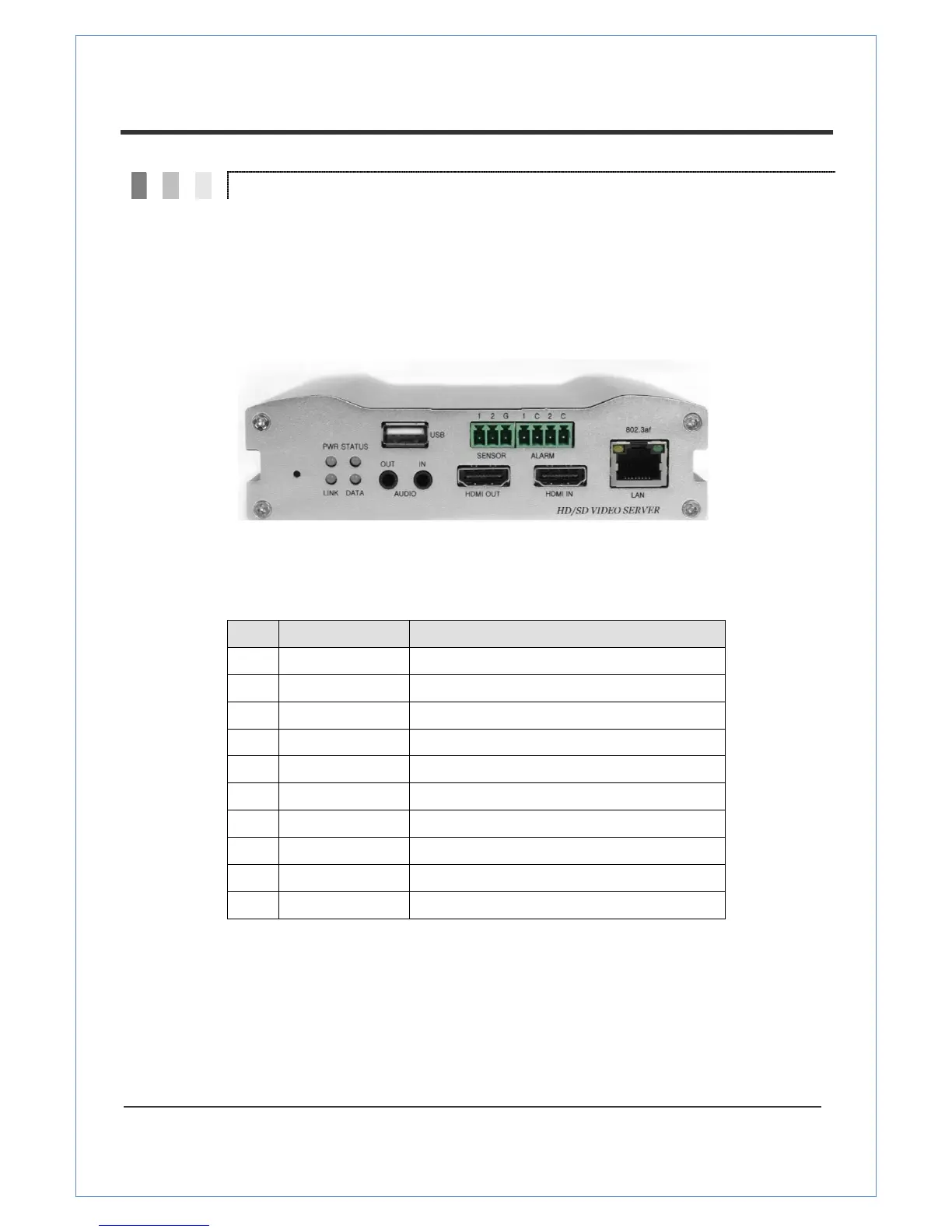

4. Part Names and Functions
 Front View
No.
Parts
Function
①
LED
Display system status
②
Audio Input
Audio Input
③
Audio Output
Audio Output
④
HDMI Input
HDMI Video Input
⑤
HDMI Output
HDMI Video Output
⑥
USB Port
USB 2.0
⑦
LAN
100/10-base-T Ethernet
⑧
Reset Button
Initialization of network setting
⑨
Sensor
Sensor Input
⑩
Alarm
Alarm or Relay Output
③
②
①
④
⑤
⑥
⑦
⑧
⑨
⑩
