e-Tracker portable energy monitor operating and maintenance manual
11

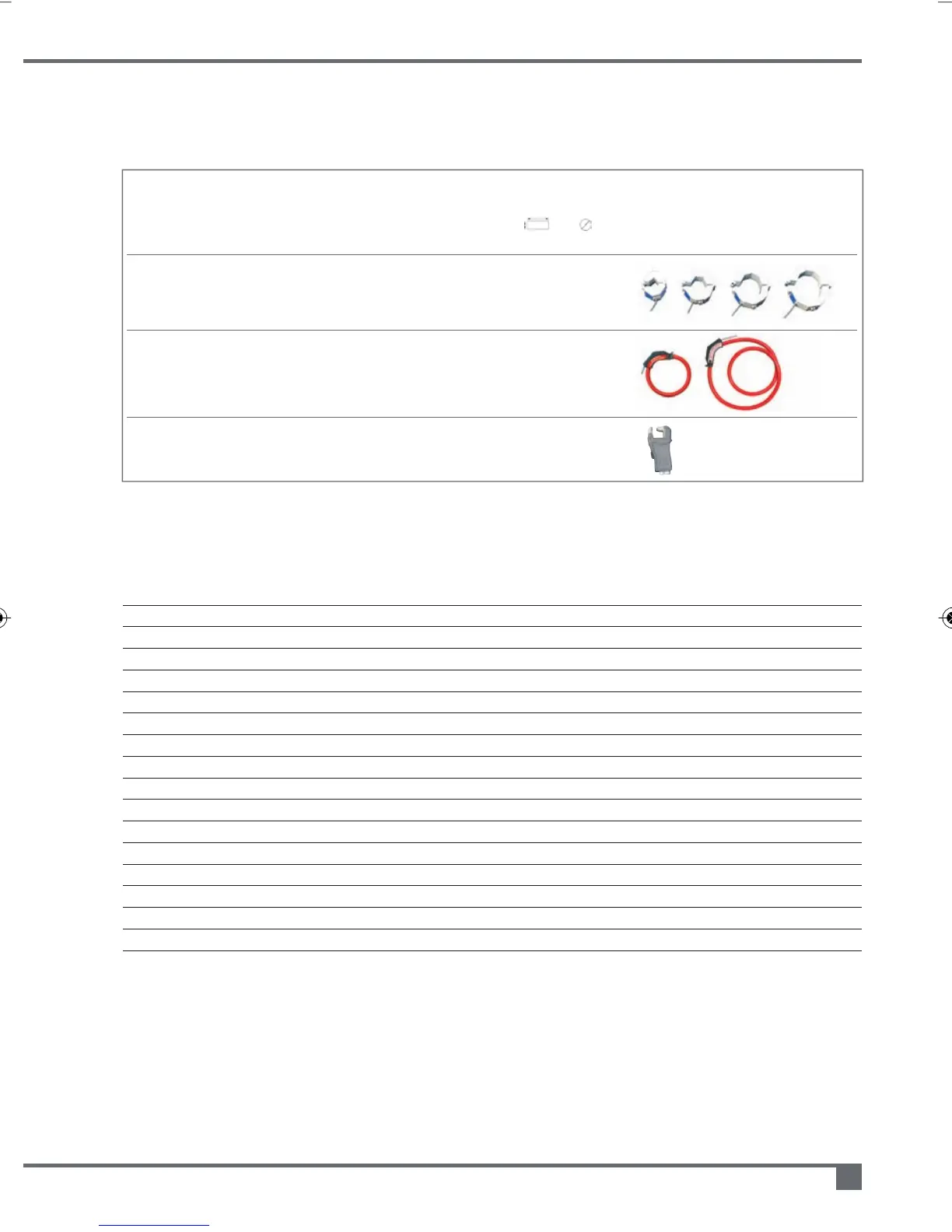

e-Tracker CT selection
CT Style CT Part NOMINAL Size Nominal Ip Accuracy Clip-on Outlines
Number ID OD Amps range PF-0.6 Capacity
to unity mm Nom
temp 25’c
50/60Hz
Hinged Clip On TC16 16mm 54mm 4-200 1.0% 16x16 16
TC32 32mm 72mm 5-500 1.0% 32x18 32
TC48 48mm 84mm 6-1000 1.0% 42x25 48
TC60 60mm 90mm 8-1500 1.0% 58x25 60
Flexeclamp Clip TF30 300mm length 10-1000 2.0% 20x85 75
Round TF40 400mm length 10-1500 2.0% 60x130 120
TF50 500mm length 20-2500 2.0% 70x150 155
TF60 600mm le
ngth 20-2500 2.0% 70x200 190
TF70 700mm length 20-2500 3.0% 70x265 215
Precision Clip On THSSB 15mm 45mm 1-100 1.0% 15
Deltrax5 software guidelines
Contents
1. The File List 12
2. The File Menu 12
2.1 Import from USB memory stick (e-Tracker Mk 2B) 12
2.2 Graph 13
2.3 Report 14
2.4 Delete 14
2.5 Show files 14
2.6 Manage data 14
2.7 Manage reports 14
3. The Preference Menu 15
3.1 Graph preferences 15
3.2 Change excel location 15
4. The Tariff Menu 16
4.1 Create tariff 16
4.2 Edit tariff 17
5. The Window Menu 17
6. Windows operating systems 17
