20 MAC Quantum Profile Safety and Installation Manual

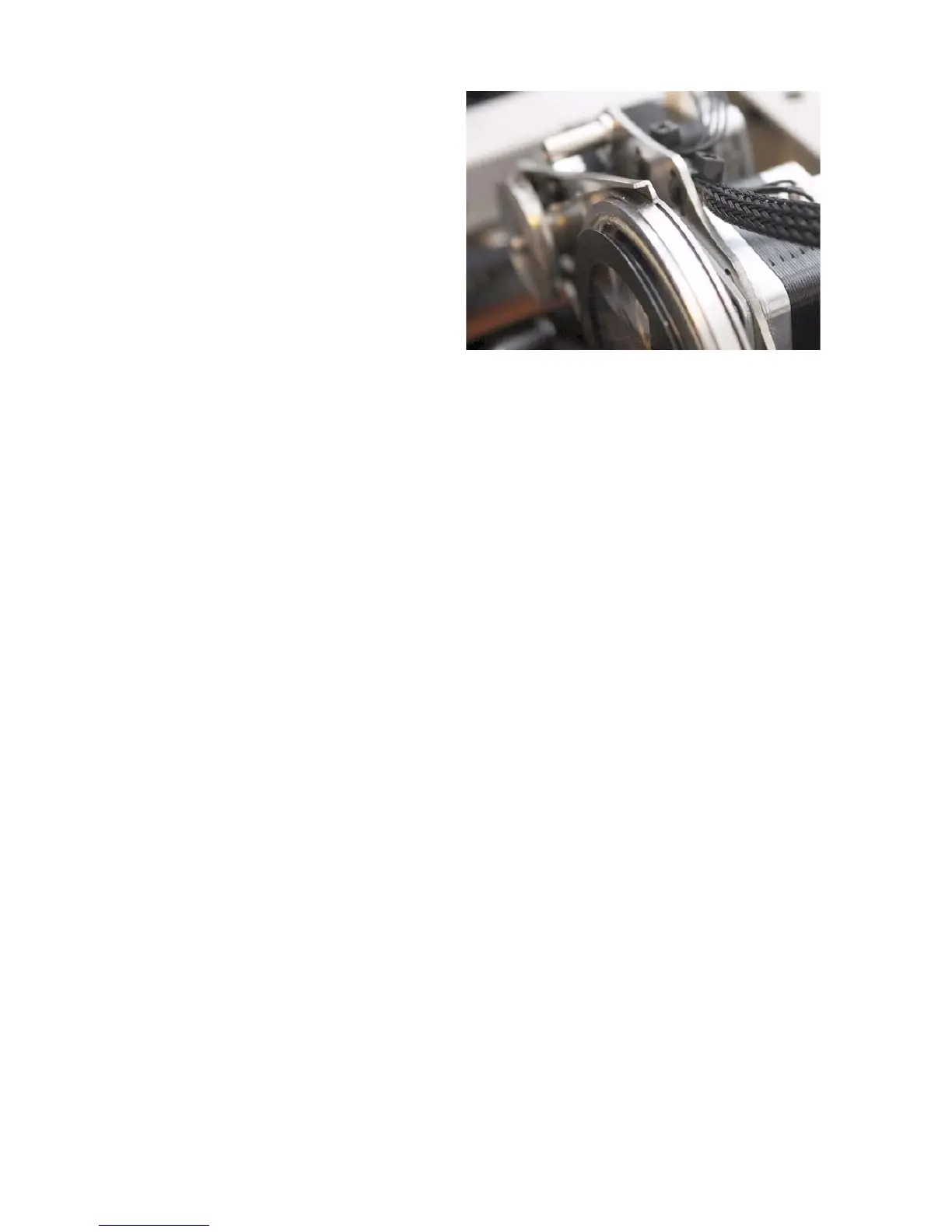

5. To install a prism, follow the above
procedure in reverse. See Figure 20.
Before you install the prism drivebelt,
check that the prism is correctly
located as shown.
6. When service work is finished,
reinstall the top head cover as
described above.
Color wheel service
Color wheel replacement must be carried out by an authorized Martin™ Service agent with Martin™ service
documentation.
Lubrication
The MAC Quantum Profile does not require lubrication under normal circumstances. Moving parts can be
checked and a long-lasting teflon-based grease reapplied by a Martin™ Service agent if necessary.
