FINISHED WALL
FRAMING
1/4"

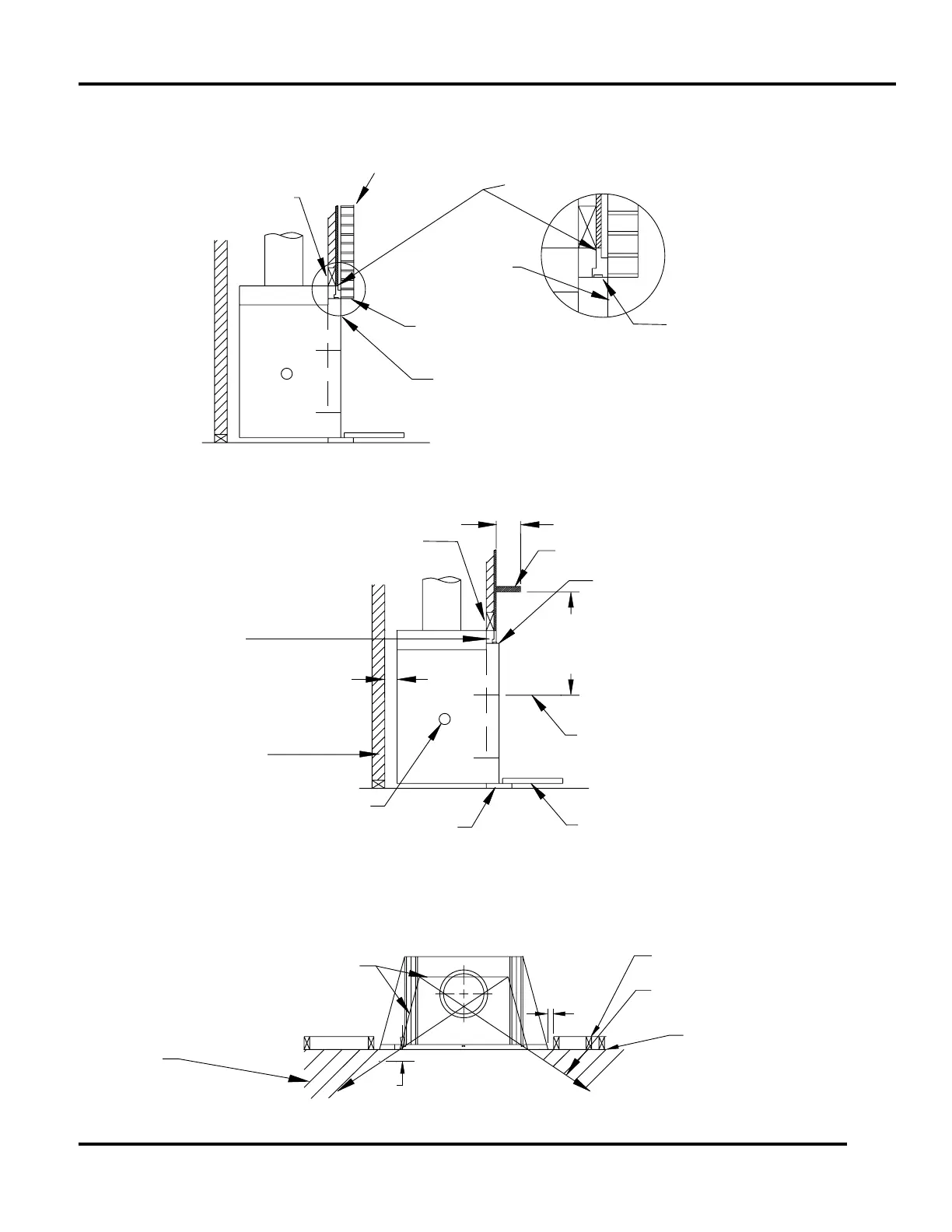

INSTALLATION OF NON-COMBUSTIBLE FACING MATERIALS TO THE FRONT FACE OF THE FIREPL
INSTALLATION OF NON-COMBUSTIBLE FACING MATERIALS TO THE FRONT FACE OF THE FIREPL
ACE
COMBUSTIBLE FRAMING
MEMBERS FACING MATERIAL
TO TOP OF SPACERS.
CAUTION:
DO NOT COVER
OR RESTRICT SIDE VENT
AREAS WITH SURROUND
OR TRIM MATERIALS.
USE ONLY NON-COMBUSTIBLE
MATERIALS BELOW TOP OF SPACERS.
NON-COMBUSTIBLE
FACING MATERIAL
FIREPLACE FACE
STEEL LINTEL
(OPTIONAL)
WARNING:
THE SPACE BETWEEN THE
FACE OF THE FIREPLACE
AND THE NON-COMBUSTIBLE
FACING MATERIAL MUST BE
SEALED. FAILURE TO
PROPERLY SEAL THIS CRACK
CAN CAUSE A POSSIBLE FIRE
HAZARD AND WILL VOID THE
WARRANTY.
SCREENED OPENING
OF FIREPLACE
4"
(REF.)
EXTEND LINE FROM OPPOSITE REAR OF
EXTEND LINE FROM OPPOSITE REAR OF
FIREBOX THRU A POINT 4" IN FRONT OF
FIREBOX THRU A POINT 4" IN FRONT OF
FIREPLACE FACE, AND 1" OUTSIDE OF
FIREPLACE FACE, AND 1" OUTSIDE OF
SCREENED OPENING.
OUTLINE OF
FIREPLACE
FIREBRICK
COMBUSTIBLE SURROUND
MATERIALS MAY BE PLACED
WITHIN SHADED AREAS.
(NOTE: COMBUSTIBLE
MATERIALS MUST NOT
OVERLAP BLACK PAINTED
SURFACE.)
IT IS RECOMMENDED THAT YOU
INSULATE OUTER AND INNER WALLS
OF CHASE. ALWAYS MAINTAIN THE
OF CHASE. ALWAYS MAINTAIN THE
PROPER CLEARANCE.
18" MINIMUM FROM FIREPLACE OPENING
TO BOTTTOM OF COMBUSTIBLE MANTEL,
(MANUFACTURER RECOMMENDATION).
SEE NOTE BELOW REGARDING H2853 CANOPY.
SEE NOTE BELOW REGARDING H2853 CANOPY.
NOTE:
WHEN AN APPROVED ANSI Z21.11.2 UNVENTED ROOM HEATER IS INSTALLED
WHEN AN APPROVED ANSI Z21.11.2 UNVENTED ROOM HEATER IS INSTALLED
IN THIS FIREPLACE, AN H2853 CANOPY MUST ALSO BE INSTALLED.
1" AIR SPACE TO SIDES
AND REAR OF FIREBOX
USE ONLY NON-COMBUSTIBLE
MATERIALS BELOW TOP
OF SPACERS.
OUTSIDE AIR INLET
SAFETY STRIP
HEARTH EXTENSION
TOP EDGE OF FIREPLACE OPENING
TOP EDGE OF FIREPLACE
INSTALLATION OF COMBUSTIBLE DECORATIVE TRIM AND THE FIREPLACE SURROUND
INSTALLATION OF COMBUSTIBLE DECORATIVE TRIM AND THE FIREPLACE SURROUND
COMBUSTIBLE FRAMING MEMBERS
FACING MATERIAL TO TOP OF SPACERS.
COMBUSTIBLE MANTEL
12" MAXIMUM
TRIM INSTALLATION
FIGURE 31
FIGURE 30
FIGURE 29
53D9022. Rev 1 03/03
