7
FIREPLACE LOCATION
CAUTION: Do not install fireplace over carpeting.
This fireplace does not weigh more than large pieces of furniture and can normally be located near a load
bearing wall without requiring additional foundations or supports. If however, the fireplace is to be trimmed
with a heavy stone or brick facing and hearth extension, be sure the supporting structure is adequate.

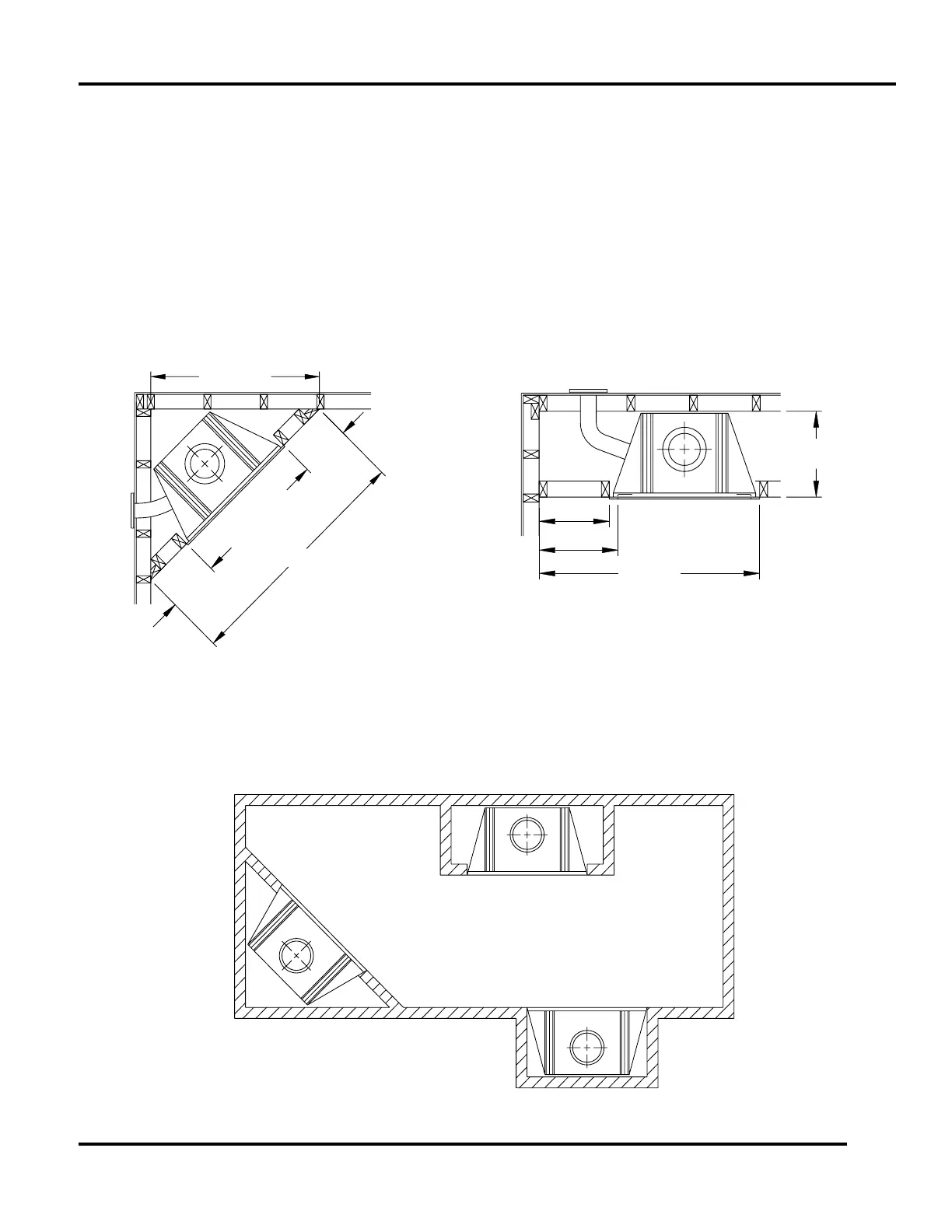

Figures 4 and 5 provide dimensional details of the fireplace, required spacing to combustible walls, and some
suggested fireplace locations. When selecting a location, choose one that is away from frequently opened
doors, central heat outlets or returns, or other places where air movements may disturb the airflow around the
fireplace. Air turbulence near the fireplace may cause smoke to spill out of the fireplace opening.
SIDE WALL INSTALLATION
55" MIN.
(WITH GLASS DOORS INSTALLED)
(WITH GLASS DOORS INSTALLED)
24" MIN.*
23" MIN.
21 1/2" MIN.
FRAMING DIM.
NOTE: Combustible side wall clearance may be reduced by 12" if the
NOTE: Combustible side wall clearance may be reduced by 12" if the
fireplace is provided with the GD42B or GD42PB glass door assembly.
fireplace is provided with the GD42B or GD42PB glass door assembly.
71 1/2" MIN.
13 3/4"
MIN.
13 3/4"
MIN.
50 9/16" MIN.
CORNER INSTALLATION
FULL PROJECTION
FLUSH
CORNER
FIGURE 4
F
IGURE 5
53D9022. Rev 1 03/03
