Marus TL 500 - Mounting Methods; General Mounting Guidance

6

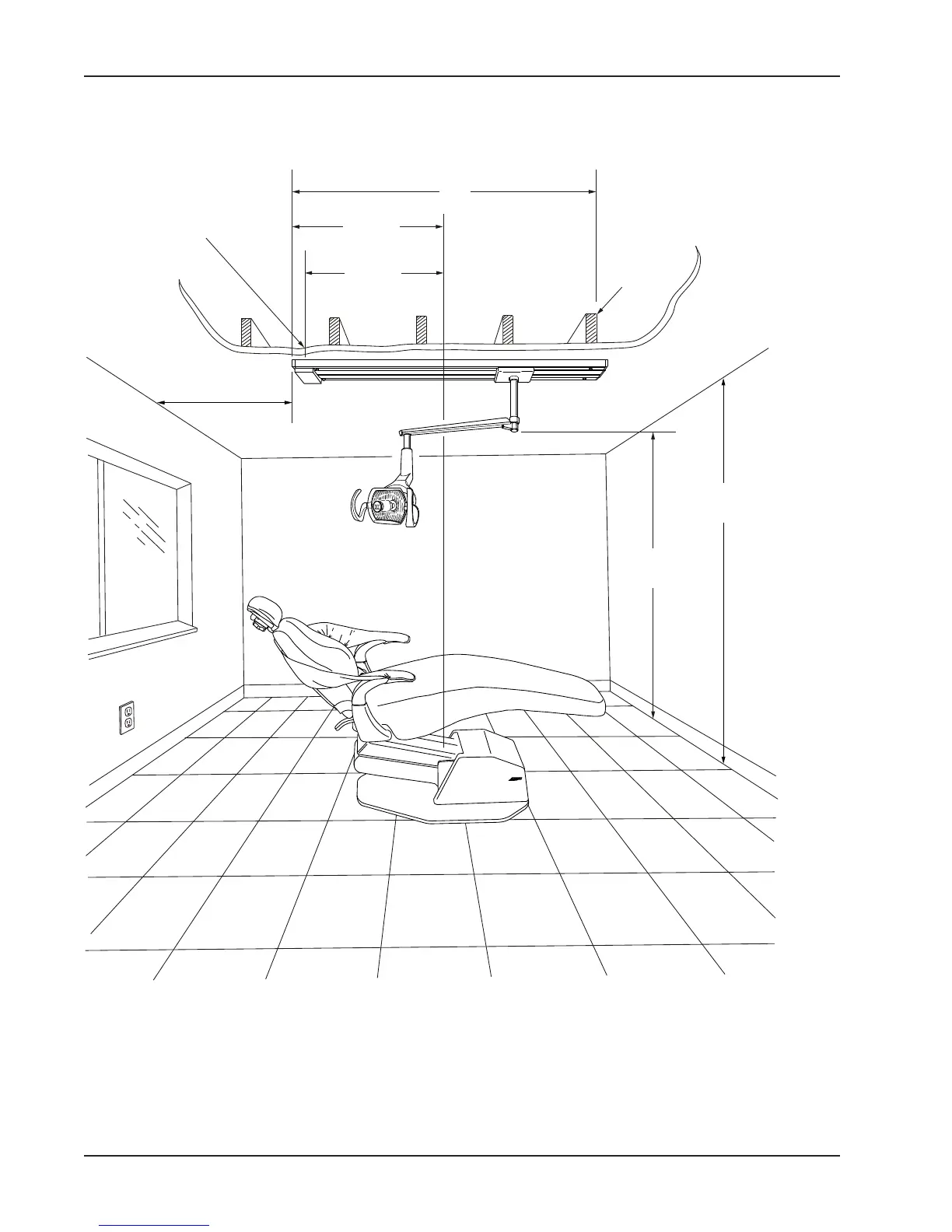

Suggested Mounting Methods
Stub out wiring at
this point (1-1/4”)
access hole in
mounting pallet
64”
35-1/2”
33-5/8”
Chair
Centerline
42” min.
Recommended
Ceiling
joists
6‘-3”
+/-3”
8‘-0” min.
12’-0” max.
