− US-9 −
Loop Handle
Screw (4)
Bottom Clamp
Nut (4)
Assembly

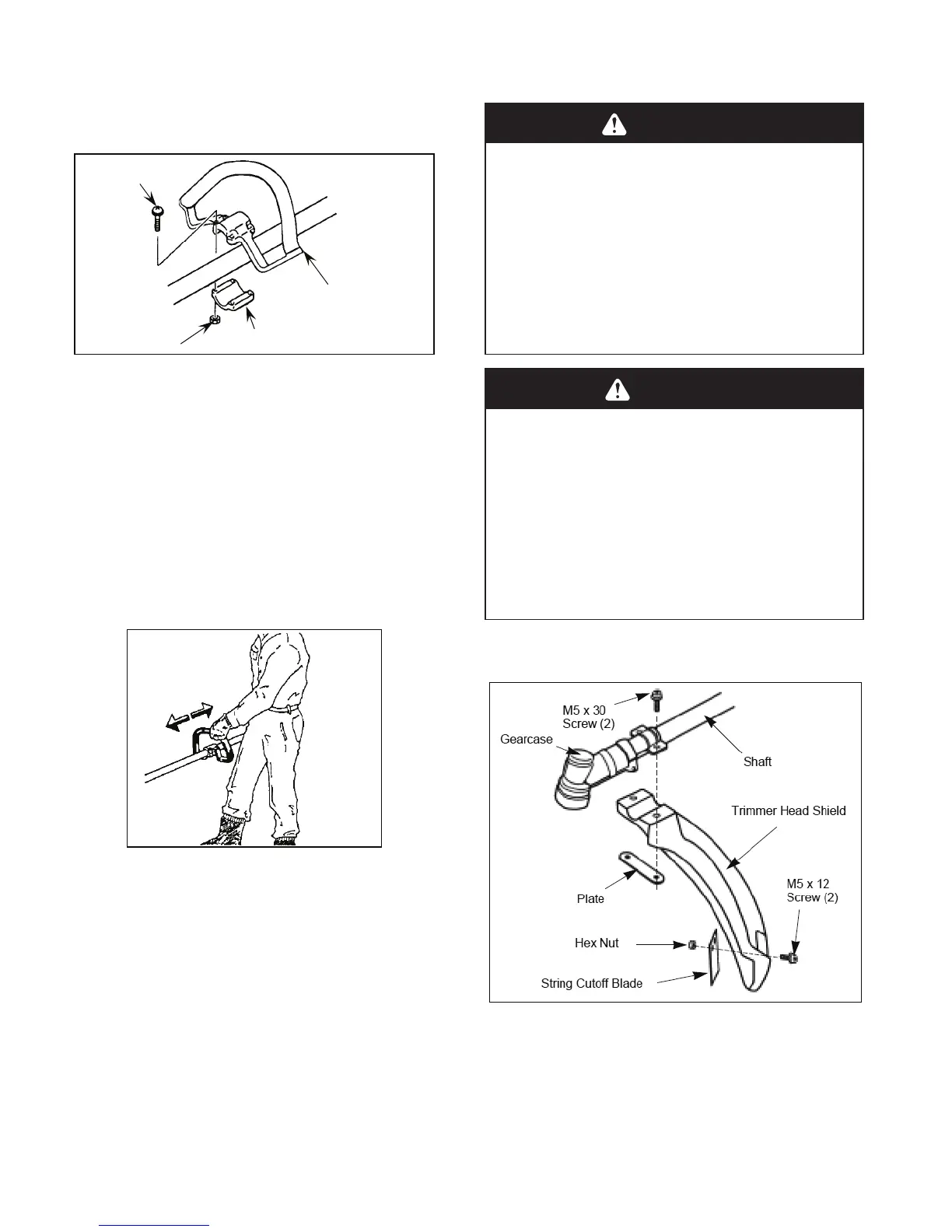

Loop Handle Installation
1. Place the loop handle and the bottom clamp on the
shaft approximately 28cm(11 inches) from the end
of the stop switch/throttle trigger assembly.
2. Install the four screws and nuts. Leave the screws
fingertight.
3. Reposition the loop handle up or down the
driveshaft to the most comfortable position, but
no closer than 9 inches (22.8 cm) from the end of
the stop switch.
4. Tighten the screws and nuts.
Installing Debris Shield
WARNING
POTENTIAL HAZARD
•
Foreign objects can be thrown by String
Trimmer. WHAT CAN HAPPEN
•
Contact with thrown objects can cause
personal injury. HOW TO AVOID THE
HAZARD
•
Never operate the String Trimmer without
the trimmer head shield in place.
CAUTION
POTENTIAL HAZARD
•
The String cutoff blade is sharp. WHAT
CAN HAPPEN
•
Contact with cutoff blade can cause serious
cuts or personal injury. HOW TO AVOID
THE HAZARD
•
Keep hands, feet and clothing away from
cutoff blade.
1. Fasten the string cutoff blade to the trimmer head
shield with two M5 x 12 screws and hex nuts.
2. Attach the trimmer head shield to the gearcase
with the two M5 x 30 screws and plate as shown.
Loop Handle
Screw (4)
Bottom Clamp
Nut (4)
Loop Handle
Screw (4)
Bottom Clamp
Nut (4)
