Marvell 88E1111 - 2.2 96-pin BCC Package - Top View

Doc. No. MV-S105540-00, Rev. A
Page 44 Document Classification: Proprietary Information

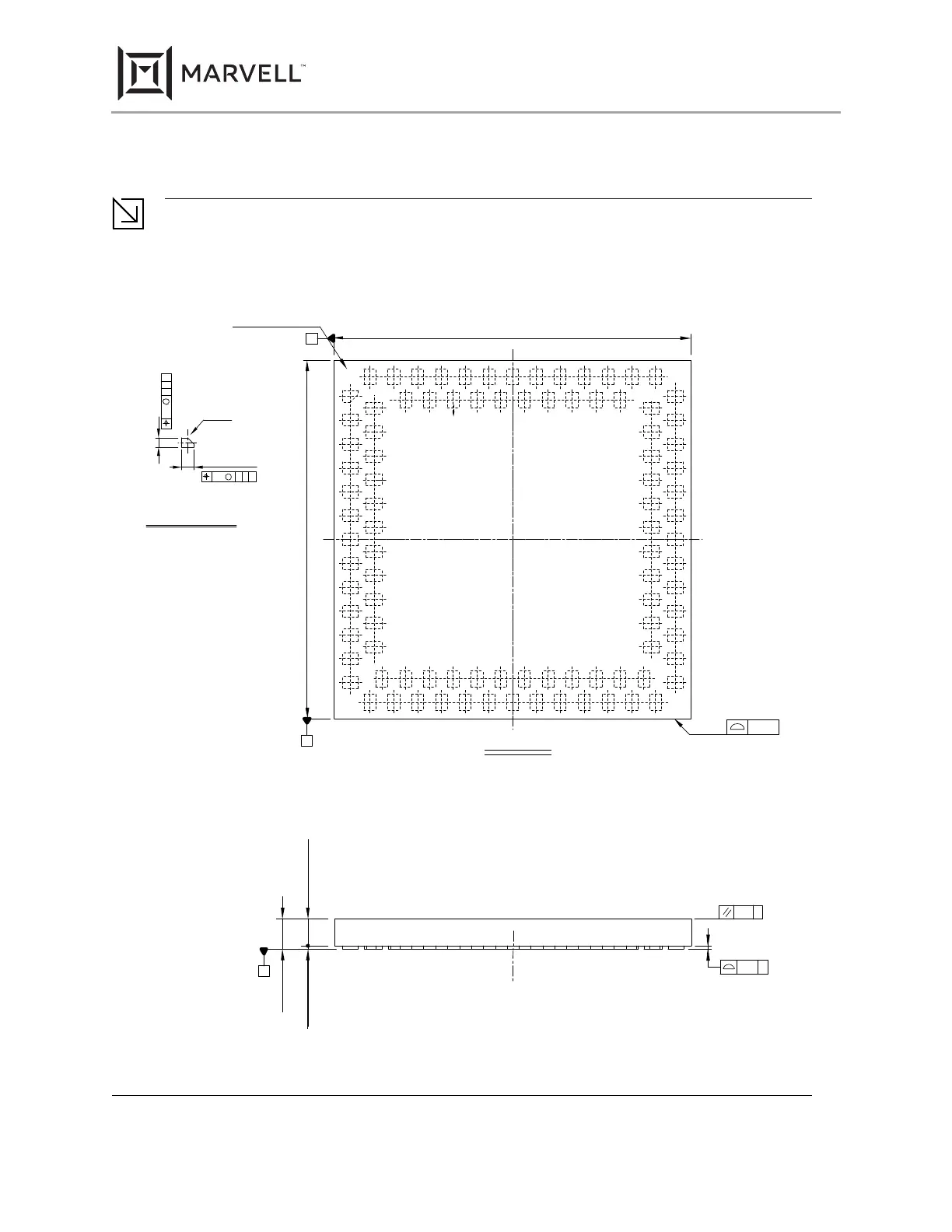

2.2 96-pin BCC Package - Top View - OBSOLETE - No Lon-
ger Available - Replaced by the 96-Pin aQFN Package
Note
The 96-Pin aQFN package is a pin compatible replacement for the 96-Pin BCC package. See Product
Change Notification 1210066 and Table 20 for details.
9.00±0.10
Z
Y
TOP VIEW
0.15
0.670±0.025
0.80 MAX
0.075±0.025
PIN 1 CORNER
X
9.00±0.10
0.20
0.05
1
3
50
51
71
73
24
95 96
74
75
27
49
47
25
23
0.30±0.05
DETAIL "A" (1X)
0.08 Z
C0.2
0.08 Z X Y
0.400±0.05
X Y
M
M
Z
Z
OBSOLETE - NO LONGER AVAILABLE - REPLACED by 96
-
pin aQFN
88E1111 Product Brief
