Marvell 88E1111 - 3.1.2 RoHS 6;6 Compliant Marking Examples

Doc. No. MV-S105540-00, Rev. A
Document Classification: Proprietary Information Page 53
Order Information
Ordering Part Numbers and Package Markings
3.1.2 RoHS 6/6 Compliant Marking Examples

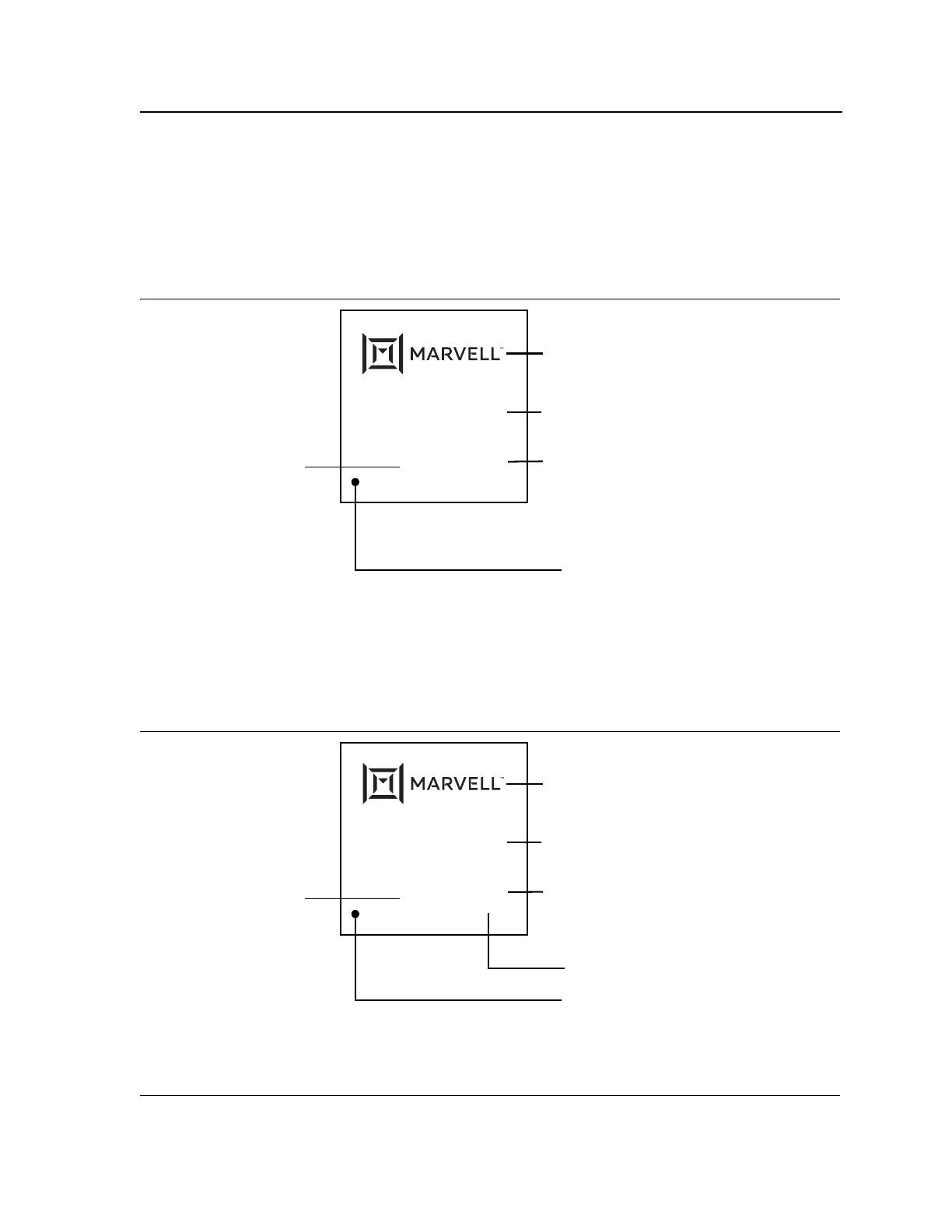

Figure 10 is an example of the package marking and pin 1 location for the 88E1111 117-pin TFBGA commercial
RoHS 6/6 compliant package.
Figure 10: 88E1111 117-pin TFBGA Commercial RoHS 6/6 Compliant Package Marking and Pin
1 Location
Figure 11 is an example of the package marking and pin 1 location for the 88E1111 117-pin TFBGA industrial
RoHS 6/6 compliant package.
Figure 11: 88E1111 117-pin TFBGA Industrial RoHS 6/6 Compliant Package Marking and Pin 1
Location
88E1111-BAB1
Lot Number
YYWW xx@
Country
Country of origin
(Contained in the mold ID or
marked as the last line on
the package.)
Pin 1 location
Note: The above example is not drawn to scale. Location of markings is approximate.
Logo
Part number, package code, environmental code
Environmental Code - No code = RoHS 5/6
1 = RoHS 6/6
Date code, custom code, assembly plant code
YYWW = Date code
xx = Custom code
@ = Assembly location code
88E1111-BAB1
Lot Number
YYWW xx@
Country
Country of origin
(Contained in the mold ID or
marked as the last line on
the package.)
Pin 1 location
Note: The above example is not drawn to scale. Location of markings is approximate.
I
Logo
Part number, package code, environmental code
Environmental Code - No code = RoHS 5/6
1 = RoHS 6/6
Date code, custom code, assembly plant code
YYWW = Date code
xx = Custom code
@ = Assembly location code
Industrial Grade Package Marking
