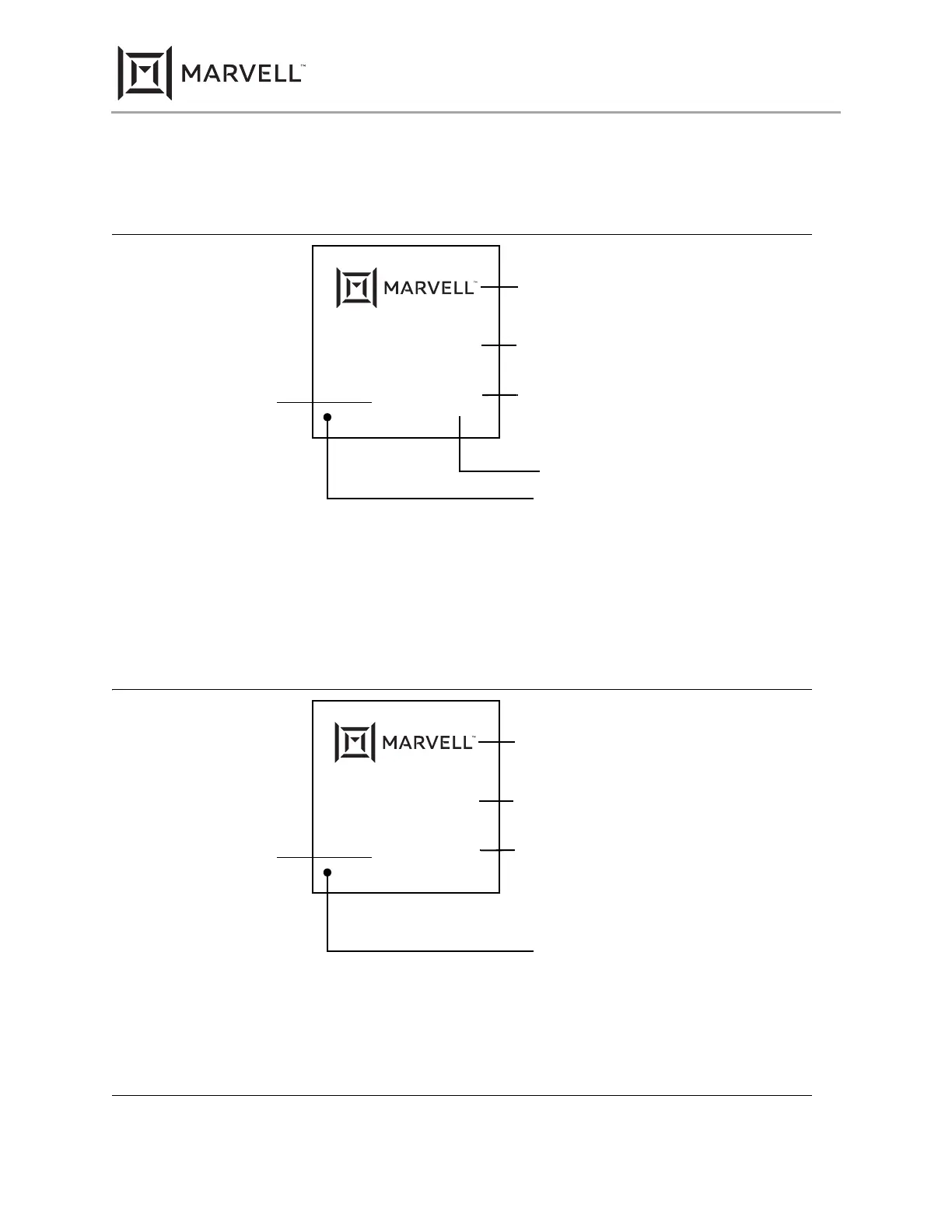

Figure 8 is an example of the package marking and pin 1 location for the 88E1111 117-pin TFBGA Industrial RoHS
5/6 compliant package.
Figure 8: 88E1111 117-pin TFBGA Industrial RoHS 5/6 Compliant Package Marking and Pin 1
Location
Figure 9 is an example of the package marking and pin 1 location for the 88E1111 128-pin PQFP Commercial
RoHS 5/6 compliant package.
Figure 9: 88E1111 128-pin PQFP Commercial RoHS 5/6 Compliant Package Marking and Pin 1
Location
88E1111-BAB
Lot Number
YYWW xx@
Country
Country of origin
(Contained in the mold ID or
marked as the last line on
the package.)
Pin 1 location
Note: The above example is not drawn to scale. Location of markings is approximate.
I
Logo
Part number, package code, environmental code
Environmental Code - No code = RoHS 5/6
1 = RoHS 6/6
Date code, custom code, assembly plant code
YYWW = Date code
xx = Custom code
@ = Assembly location code
Industrial Grade Package Marking
88E1111-RCJ
Lot Number
YYWW xx@
Country
Country of origin
(Contained in the mold ID or
marked as the last line on
the package.)
Pin 1 location
Note: The above example is not drawn to scale. Location of markings is approximate.
Part number, package code, environmental code
Environmental Code - No code = RoHS 5/6
1 = RoHS 6/6
Date code, custom code, assembly plant code
YYWW = Date code
xx = Custom code
@ = Assembly location code
Logo
88E1111 Product Brief
