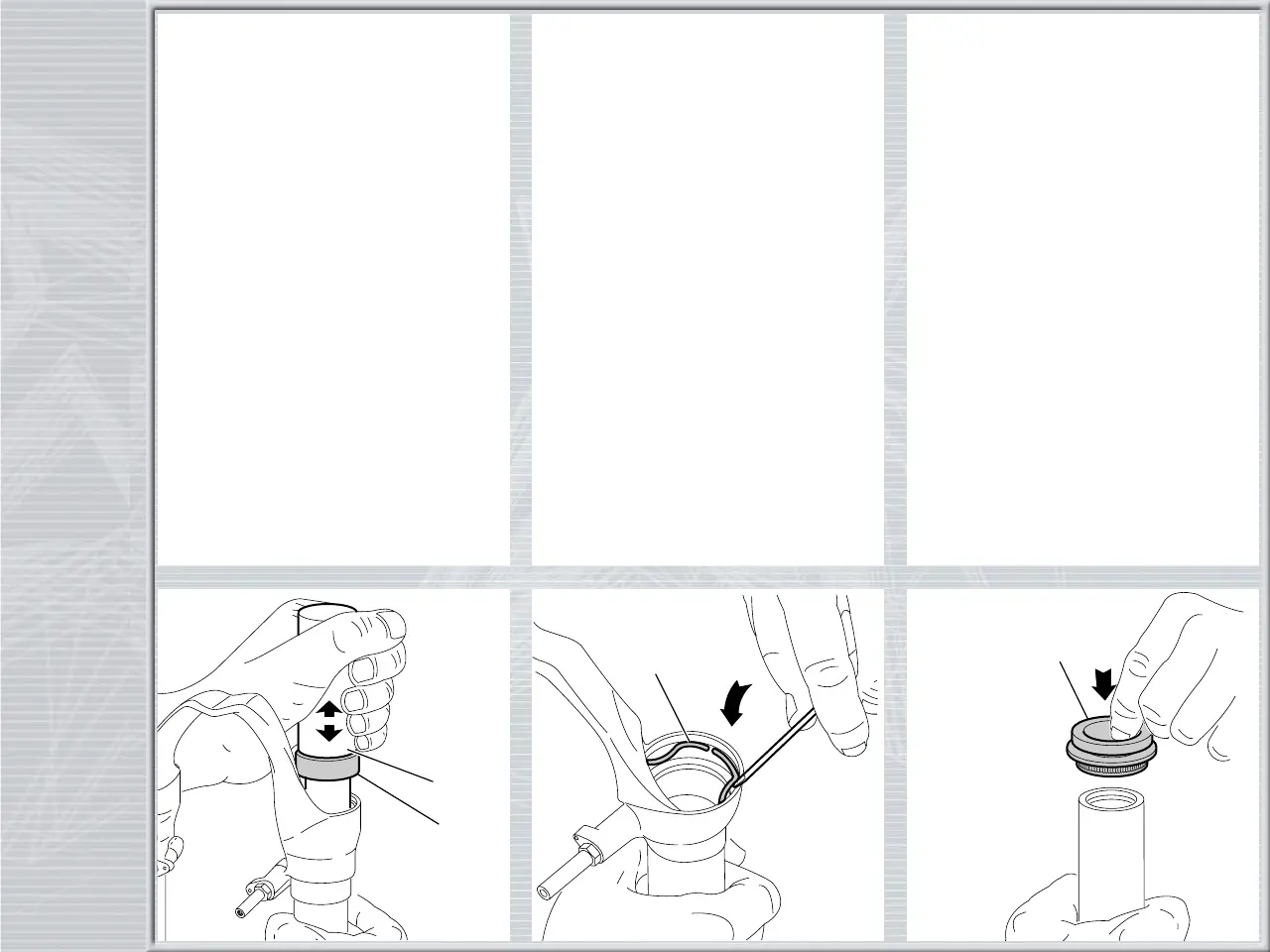

FIG. 23
Lubricate the dust seals (10) and fit them
into the stanchions from the spring end.
FIG. 22
Insert the stop ring (9) into the slider making
sure it is properly seated into place.
Use buffer (B) to properly seat the ring into
the slider.
8
B
FIG. 21
Lubricate the oil seal (8) and place it onto
the seal press (B) with the hollow side
toward the slider.
Press the oil seal until it touches the lower
washer by using the above seal press.
