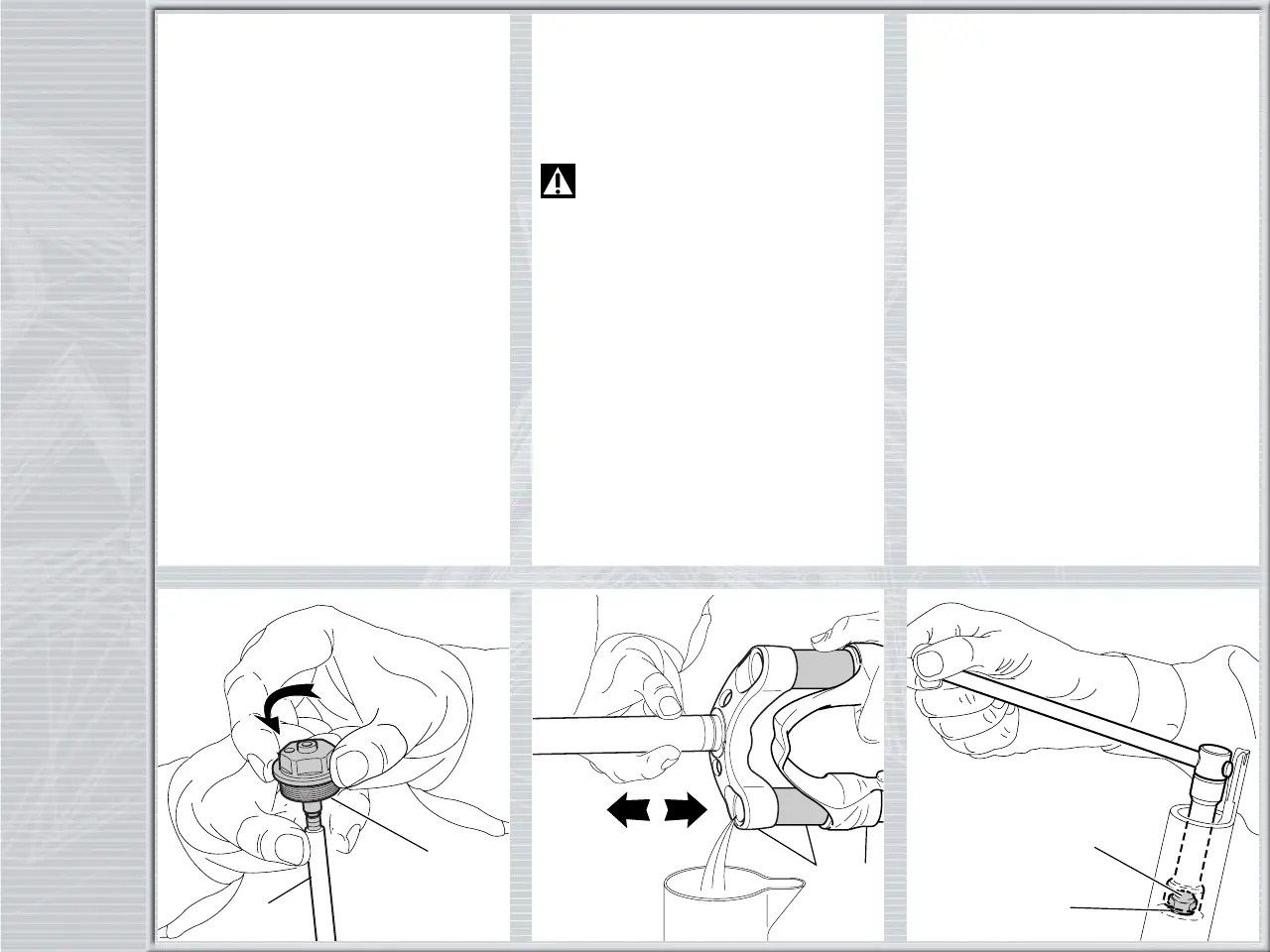

FIG. 4 (only left leg)
Lock the rod (16) and remove the cap (33)
from hydraulic cartridge end (22).
If this operation proves difficult, vice the rod
with jaws (E) (see Fig. 28).
FIG. 5
Push the stanchions (23) into the sliders (3)
and let all the oil drain out from the fork legs.
Pump the stanchions several times to help
oil drain off.
WARNING: dispose of exhausted
oil in compliance with current laws.
To change the fork leg oil follow the proce-
dure as described in section “REASSEMBLY”
from Fig. 29 to Fig. 33.
REMOVING CARTRIDGES
FIG. 6
Turn the fork leg upside-down and unscrew
the foot nuts (2) by the use of a 15 mm
socket wrench complete with O-Rings (1).
