Marzocchi MARATHON - REASSEMBLY; RE-ASSEMBLING AIR-OPERATED CARTRIDGE; PILOT BUSHING AND SEAL ASSEMBLY

M
A
R
A
T
H
O
N
7
6

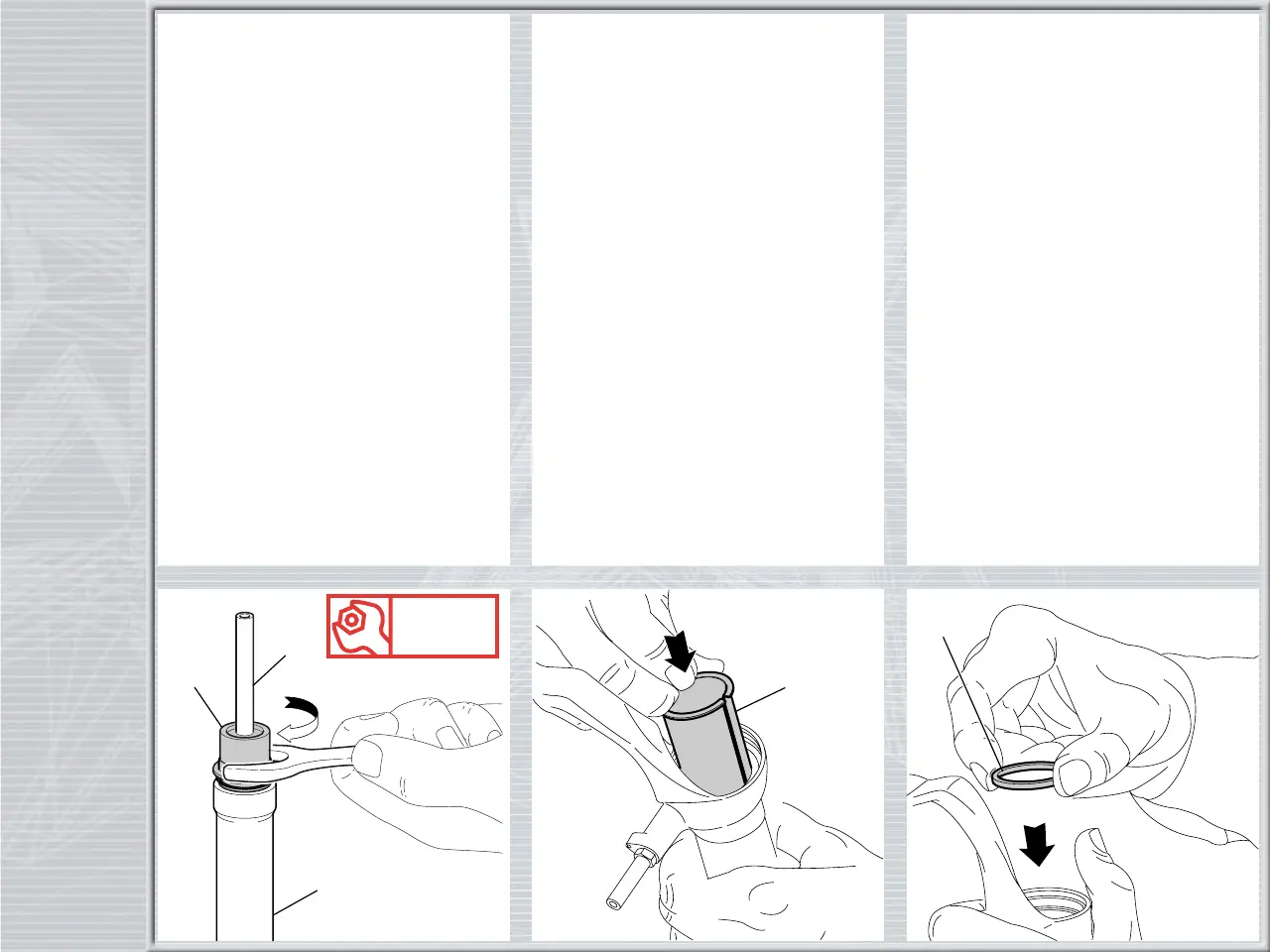

PILOT BUSHING AND SEAL
ASSEMBLY
FIG. 19
Check that no dirt or debris is between
slider and bushing. Insert the pilot bushing
(6) into place so that it adheres to the slider.
FIG. 20
Fit the upper washer (7) into the slider so
that it touches the pilot bushing.
14
16
22
Nm10
REASSEMBLY
CAUTION: before reassembling, all metal
components should be washed carefully
with inflammable, preferably biodegrad-
able, solvent and dried with compressed
air.
RE-ASSEMBLING AIR-OPERATED
CARTRIDGE
FIG. 18
Insert the rod (16) and ring nut assembly
(14) in the cartridge body (22) and tighten
the ring nut to the specified torque. During
this operation, be careful not to damage the
O-rings (15) and (18).
