29 28 32
Nm3

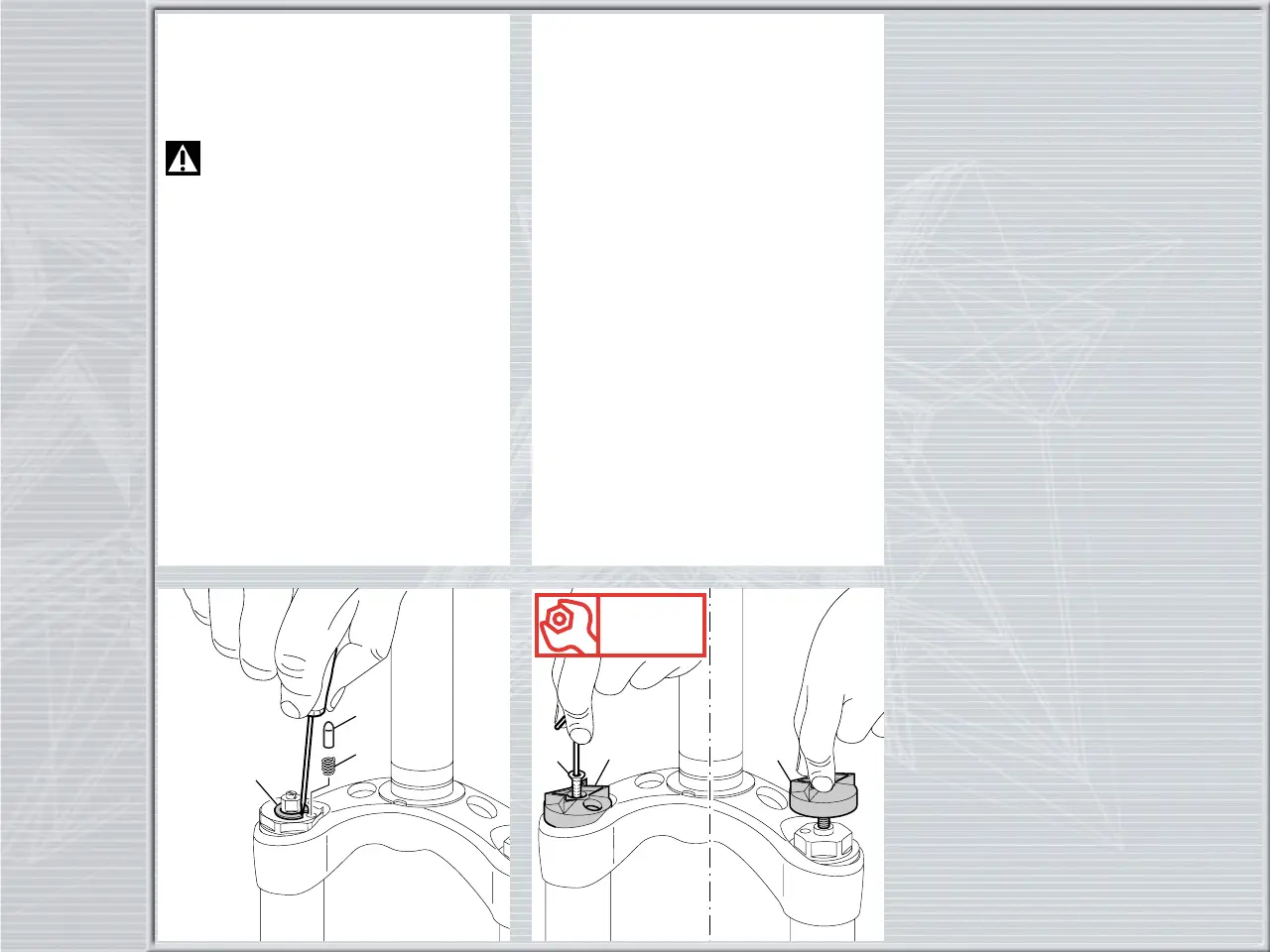

FIG. 31
(r.h. fork leg)
Fit knob (28) and fully tighten the bolt (29)
to the recommended torque.
(l.h. fork leg)
Screw knob (32) fully home.
26
27
25
FIG. 30
Fit circlip (27) of the adjustment knob
support and check for the proper position in
the seat. Fit also spring (25) and pin (26).
WARNING: never use the fork with-
out this component otherwise the
hydraulic cartridge fitted to the slider bot-
tom might slide out from the top cap and
release the arch-slider monolith.
