Marzocchi X-Fly - DISASSEMBLY STEPS; STANCHION PLUG AND CAP REMOVAL

X-Fly
4
3
7
26
11-12
7
STANCHION PLUG

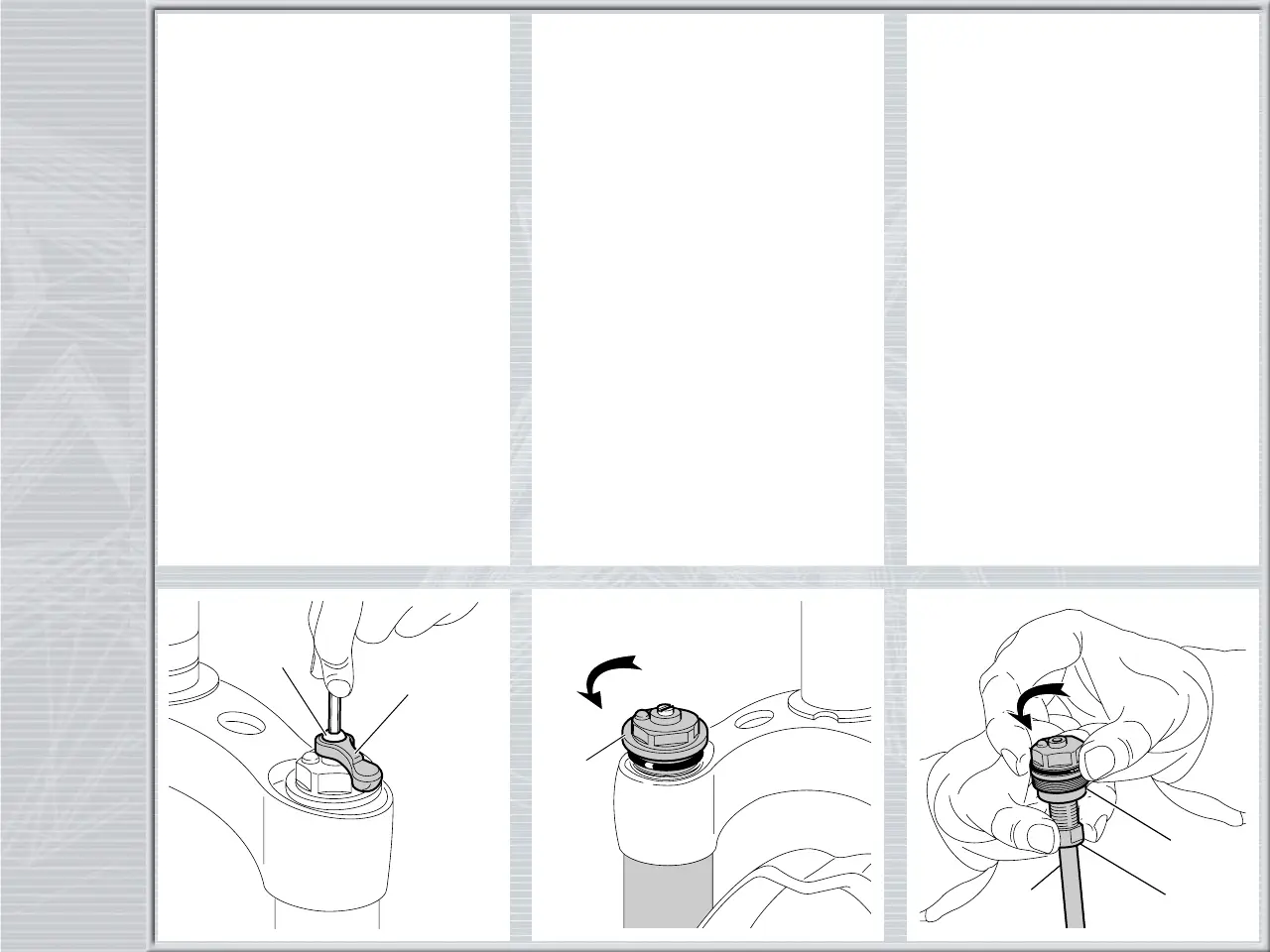

FIG. 1 (only left leg)
Loosen screw (3) and remove rebound
limiting knob (4).
FIG. 2
Depressurize each fork leg (see section
ADJUSTMENT).
Unscrew the caps (7) with a 21 mm socket
wrench.
FIG. 3
Lock the check nut (26) and remove the cap
(7) from hydraulic cartridges ends (12)
and (11).
