X-Fly
1
18
13
14
REPLACING SEALING UNIT AND
GUIDE BUSHES

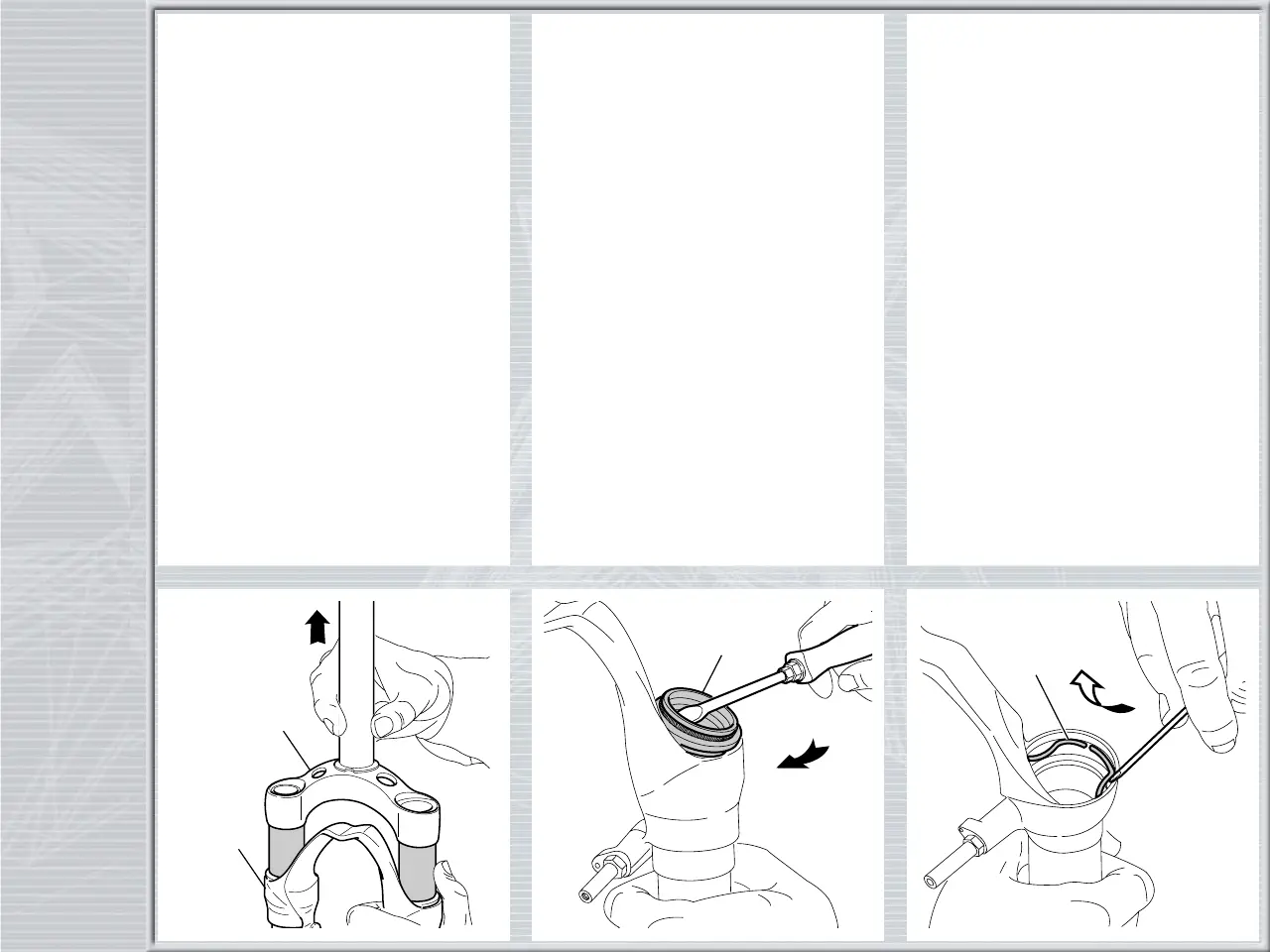

FIG. 7
Withdraw the crown and stanchions as-
sembly (1) from the sliders (18).
FIG. 8
Remove the dust seal (13) from the top of
the sliders using a small screwdriver.
FIG. 9
Remove the stop ring (14) from the sliders
by placing the screwdriver bit in one of the
three openings on the stop ring.
IMPORTANT: when removing the stop
ring, make sure not to damage its seat.
