MAS DAF YPSP Series User Manual

13

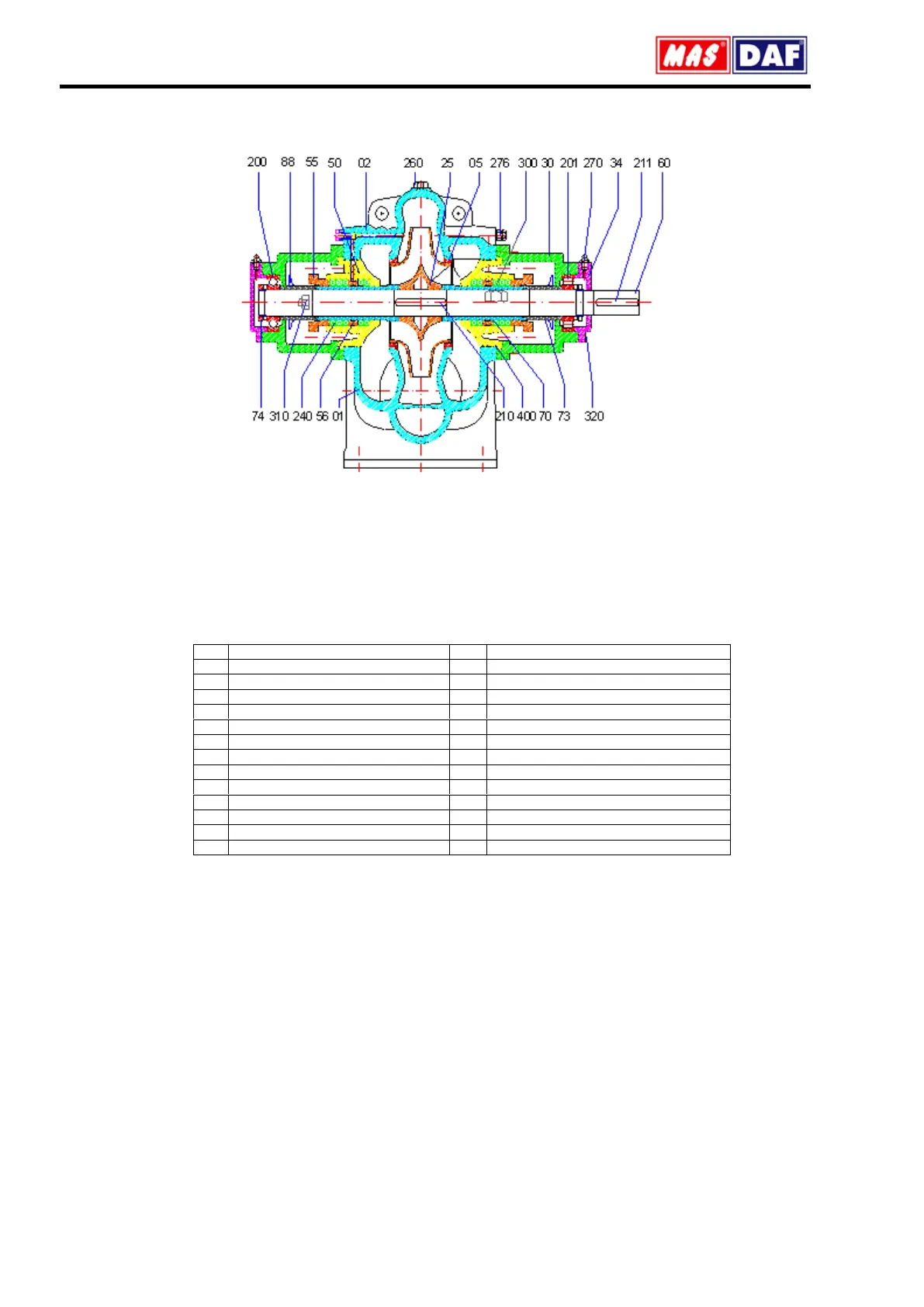

15.YPSP SECTIONAL DRAWING AND PARTS LIST
Figure 11: Soft Packing Design
PART LİST:
No
Name of the part
No
Name of the part
01
Casing-Lower Half
88
Deflector
02
Casing-Upper Half
200
Ball Bearing
05
Casing Ring
201
Roller Bearing
25
Double Suction Impeller
210
Impeller Key
30
Bearing Housing
211
Coupling Key
34
Bearing Cover (Coupling Side)
240
Soft Packing
50
Stuffing Box
260
Plug
55
Gland
270
Grease Thrower
56
Lantern Ring
276
Valve
60
Shaft
300
Casing Stud and Nut
70
Stuffing Box Bush
310
Gland Stud and Nut
73
Secondary Bush
320
Hex-Bolt
74
Shaft Adjusting Nut
400
O-Ring (For Casing)
