IS 2500 - 3500 - 4500 - 5500
22
GENERATORS
Code E - 85 This code indicates that the unit has
stopped because the voltage has dropped to below 70%
of the nominal value for longer than 15 seconds.
Code E - 87 This code indicates that the unit has
stopped because the generator voltage has not reached
80% of the nominal value 30 seconds after starting. This
could be caused by insufficient motor RPM or a broken
alternator.
batt This code indicates that the battery
is low. When this code appears, the generator is not
stopped.
When a circuit breaker has tripped with a consequent
generator stop, the panel must be reset by pressing the
“OFF” button in order to restart the unit.
If the unit is started and the alternator does not produce
voltage, or the control panel does not read voltage, the
latter switches off completely after one minute, stopping
the unit.
8 PROTECTION FUSE ( fig. 4 )
1) RELAY CIRCUIT FUSE
2) BATTERY CHARGER FUSE
9 DIMENSIONS AND WEIGHT( fig. 7 )
IS 2500 IS 3500 IS 4500/5500
a) Lenght mm.580 mm.660 mm.720
b) Width mm.430 mm.460 mm.490
c) Height mm.430 mm.545 mm.565
Weight Kg. 80 Kg 94 kg 110
10 DESCRIPTION WIRING DIAGRAM (fig. 8 )
1 ROTOR
2 STATOR
3 DIODE 3A
4 VARISTOR
5 PRINTED CIRCUIT RELAY
6 POWER TERMINAL BOARD
7 RELAY CIRCUIT TERMINAL BOARD
8 CONTROL PANEL TERMINAL BOARD
9 FUSE 1A
10 CAPACITOR
11 BATTERY CHARGER REGULATOR
12 FUSE
13 STARTER
14 BATTERY
15 FUEL PUMP
16 FUEL SOLENOID
17 OIL PRESSURE SWITCH
18 OVERHEAD ENGINE THERMOSTAT
19 WATER TERMOSTAT
20 ALTERNATOR THERMOSTAT

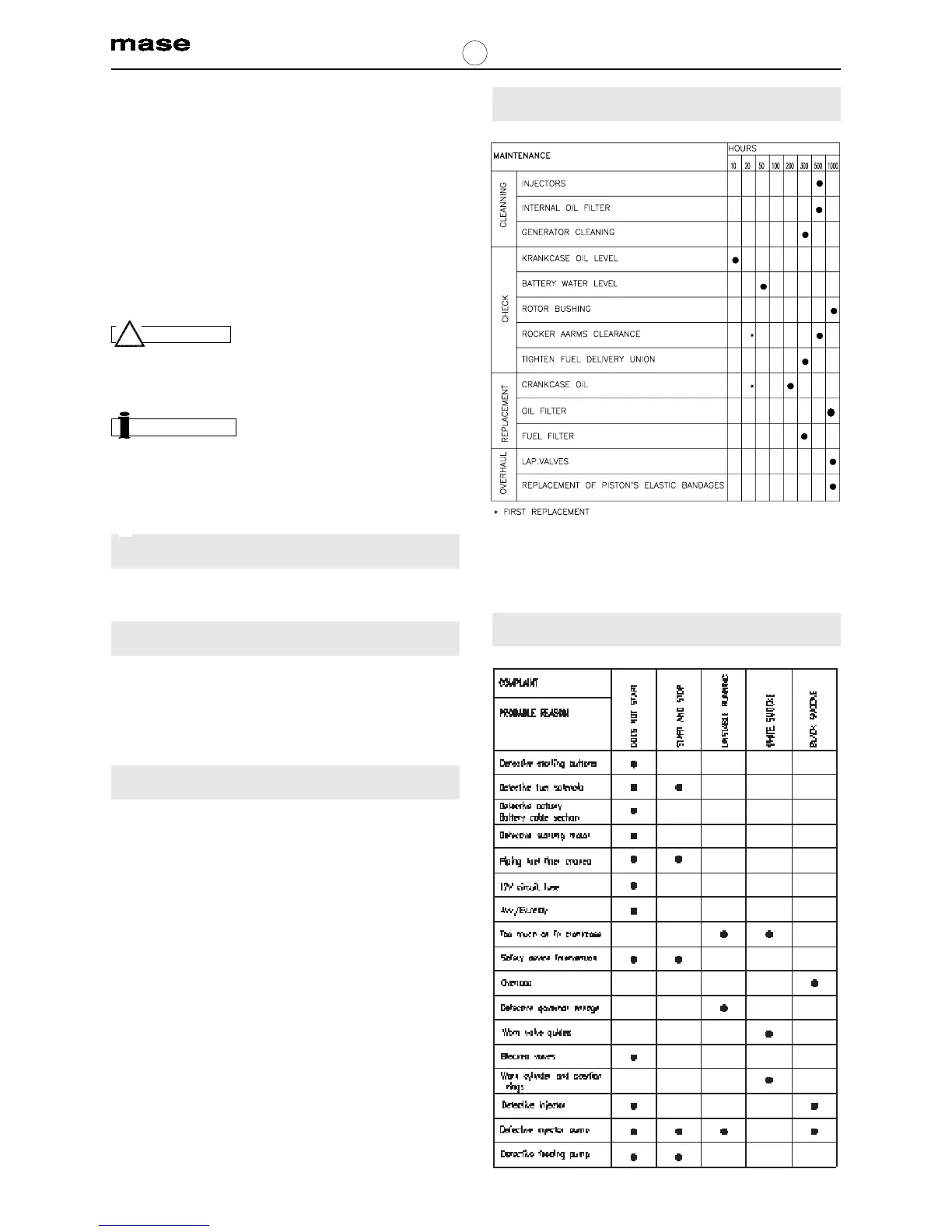

11 TROUBLE MAINTENANCE
12 TROUBLE SHOOTING
INFORMATION
WARNING
GB
