1. General Instructions
Thank you for purchasing this LCR digital bridge meter. It is a
professional instrument for measuring inductance, capacitance
and resistance. It has many features, such as automatic
identification, automatic measurement range, high
measurement accuracy and speed, wide measuring range and
so on.
An ordinary multimeter only provides DC mode for resistance
measurement, while this meter provides both AC and DC
measurement modes. A variety of test frequencies up to
100Khz can be provided for inductance, capacitance and
resistance in AC mode to meet the actual needs better.

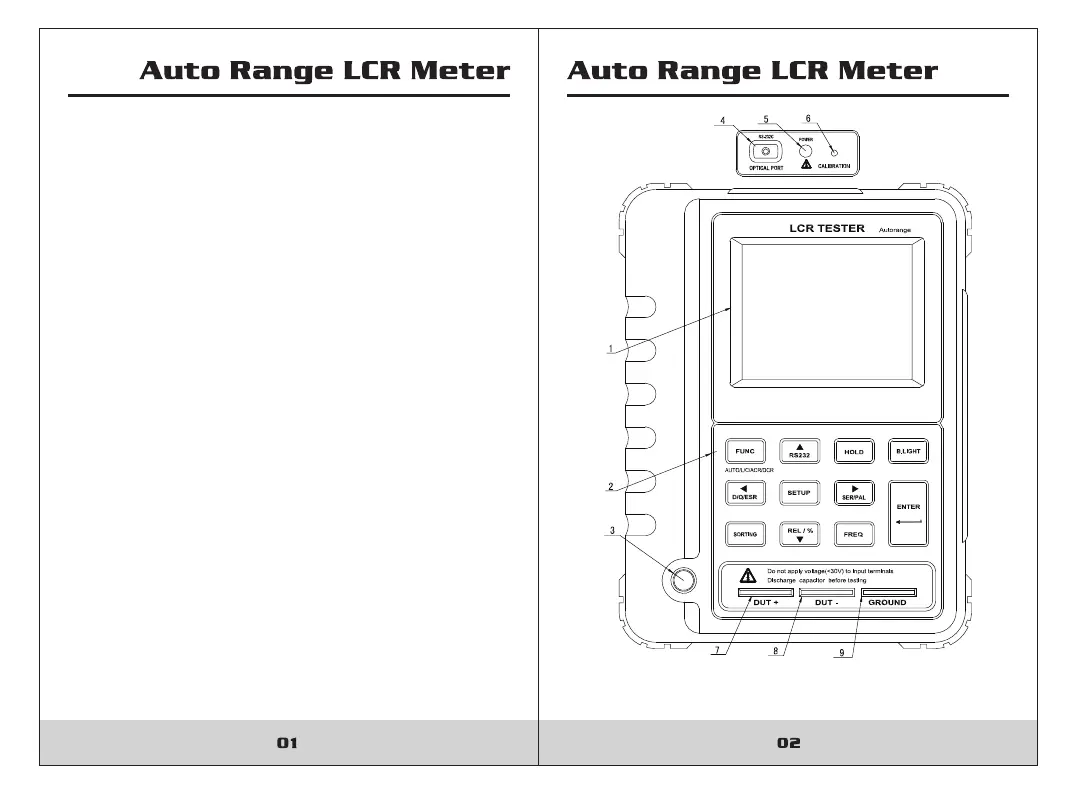

1.1 Panel Description
1
Display
2
Functional buttons area
3
Power switch
4
IR Port
5
External power port
6
Calibration button port
7
DUT + jack
8
DUT - jack
9
Shielding grounding jack
Correct usage can ensure that the instrument will work
precisely for a long time. Please read the instructions carefully
before using and operate the instrument strictly in accordance
with the instructions .
