5. Meter Probe Measurement
Use Kelvin clip or SMD clamp to connect according to the
following diagram:

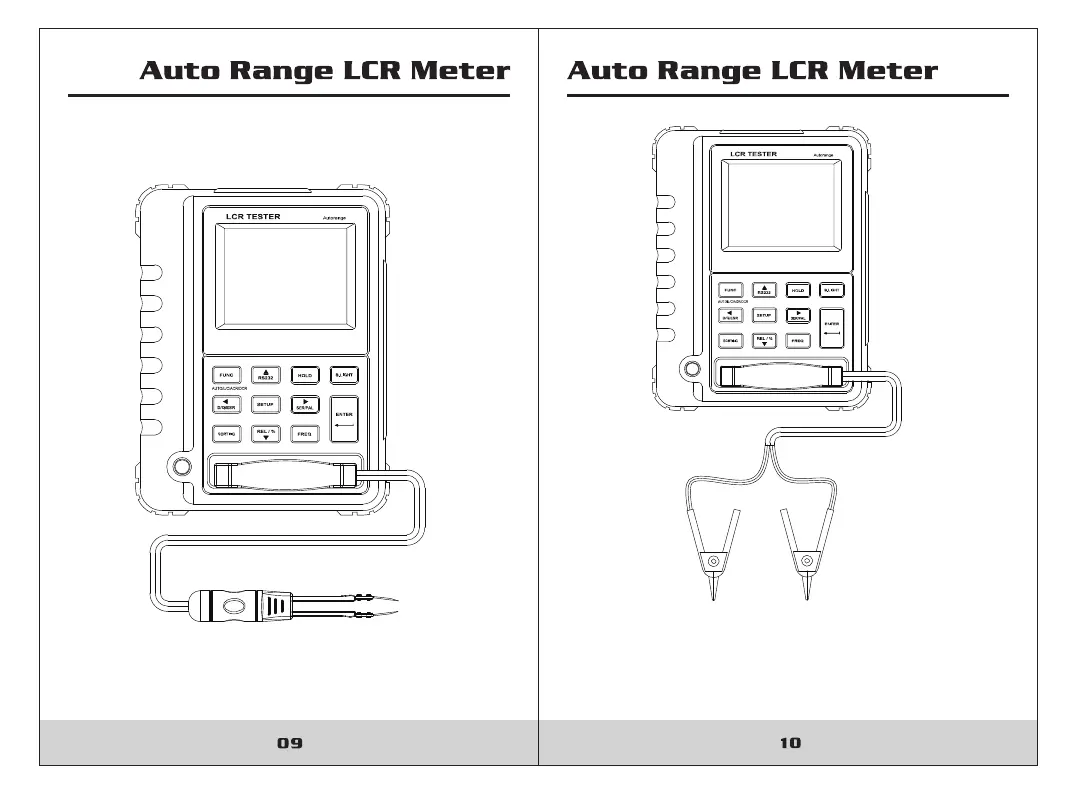

Schematic diagram for using SMD clamp to measure
Remarks: insert the plug correctly according to the diagram.
Measurement can’t be done if inserted incorrectly
Schematic diagram for using Kelvin clip to measure
Remarks: insert the plug correctly according to the diagram.
Measurement can’t be done if inserted incorrectly
To Next Page
