Master Bilt Master Controller 2.0 - Typical Wiring Diagram (Electric Defrost)

Master Bilt Master Controller 2.0
31 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
27

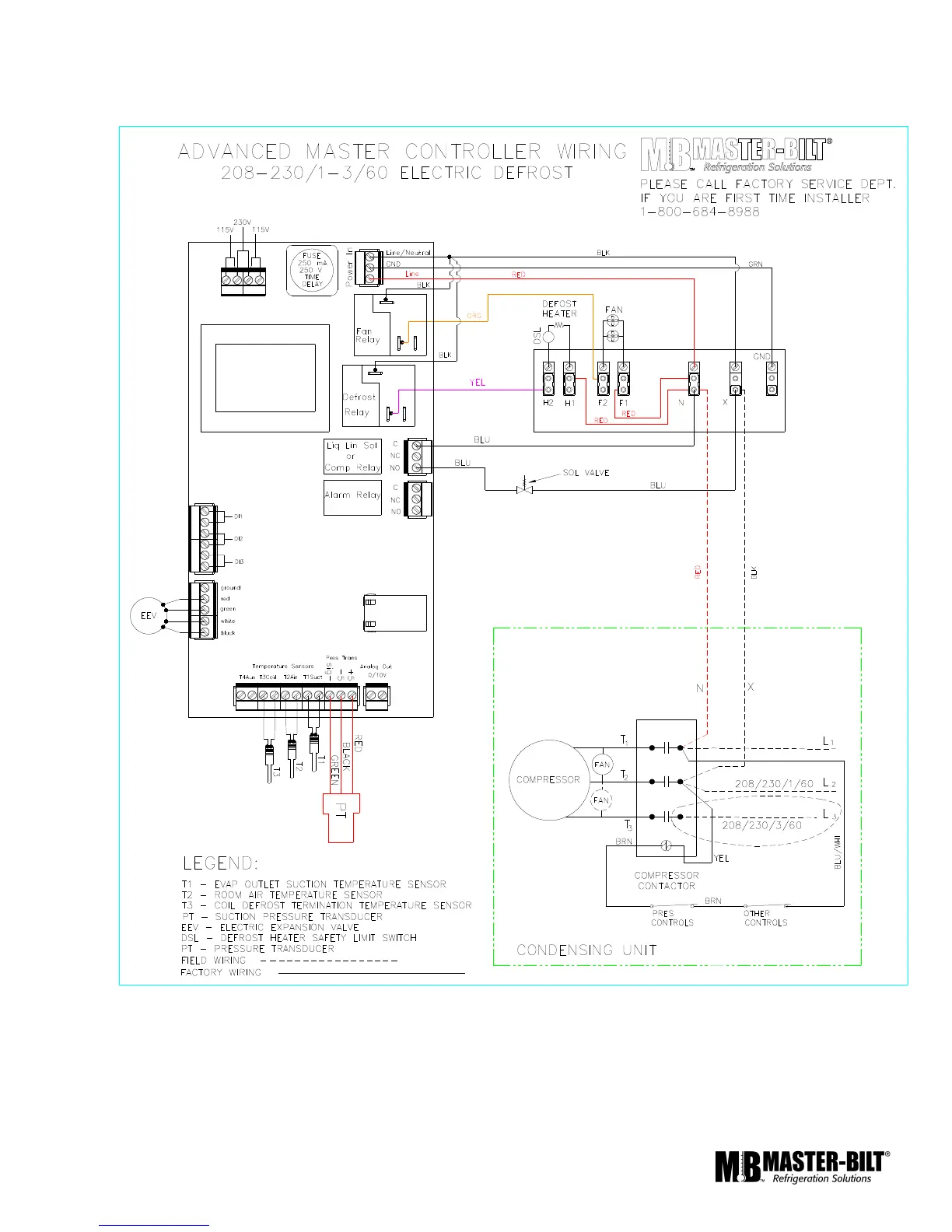

TYPICAL WIRING DIAGRAM (ELECTRIC DEFROST)
Note: For feature configuration, please refer to the wiring
diagram in the actaul system for installation.
