ASSEMBLY INSTRUCTION

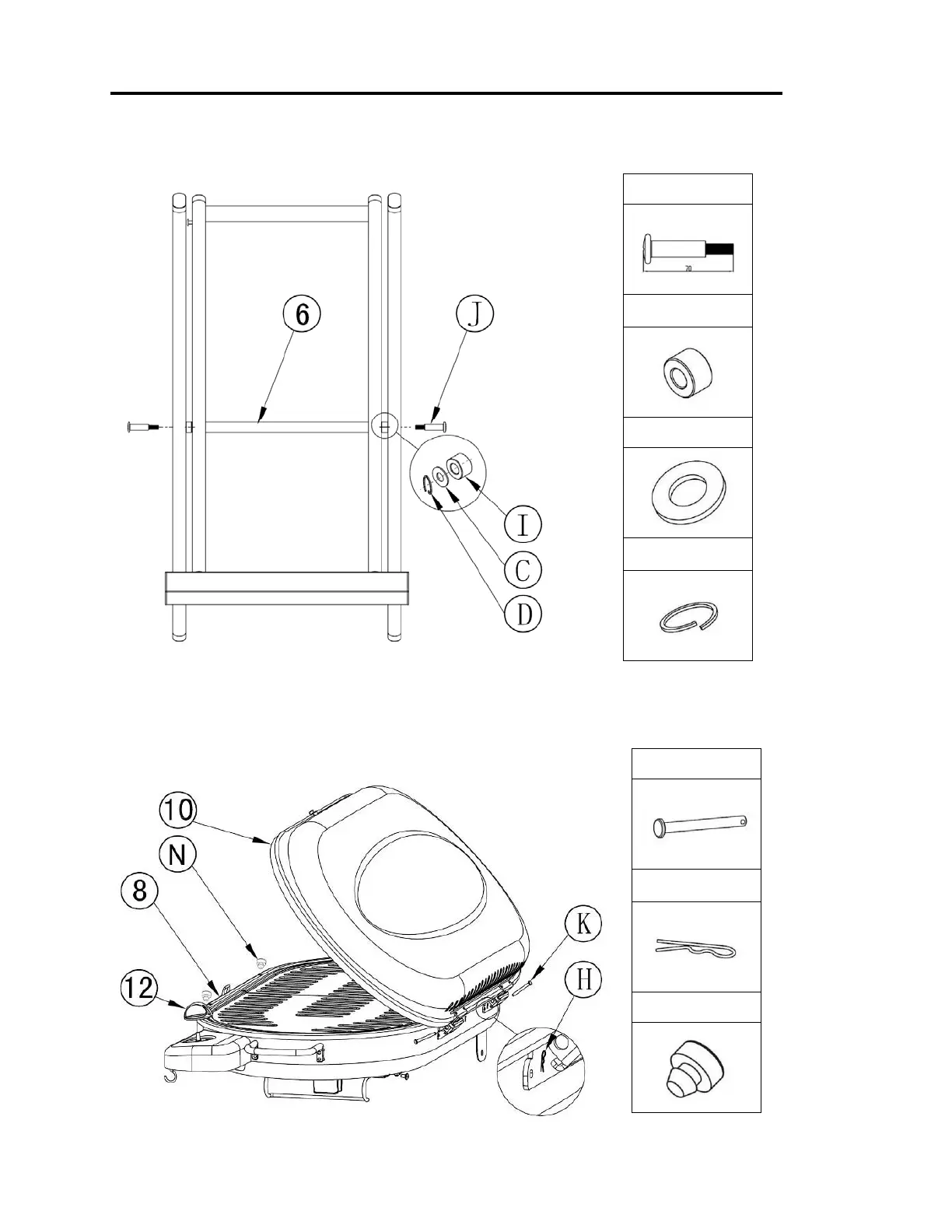

Step 3. Attach long leg assembly (14) to short leg assembly (4 and 5) using leg bolts (J),
leg spacers (I), and flat washer (C), lock washer (D) and Middle Tube Assembly (6).
Step 4. Attach hood (10) to grill body assembly (8) using hood bolts (K), and pin (H). Press
control knob (12) onto control valve. Press the lid bushing (N) to the grill body.
J. Leg Bolt (2PCS)
I. Leg Spacer
(2PCS)
C. Flat Washer Ø8
(2PCS)
D. Lock Washer Ø6
(2PCS)
K. Hood Bolt (2PCS)
H. Pin (2PCS)
N. Lid Bushing
(2PCS)
To Next Page
