ASSEMBLY INSTRUCTION

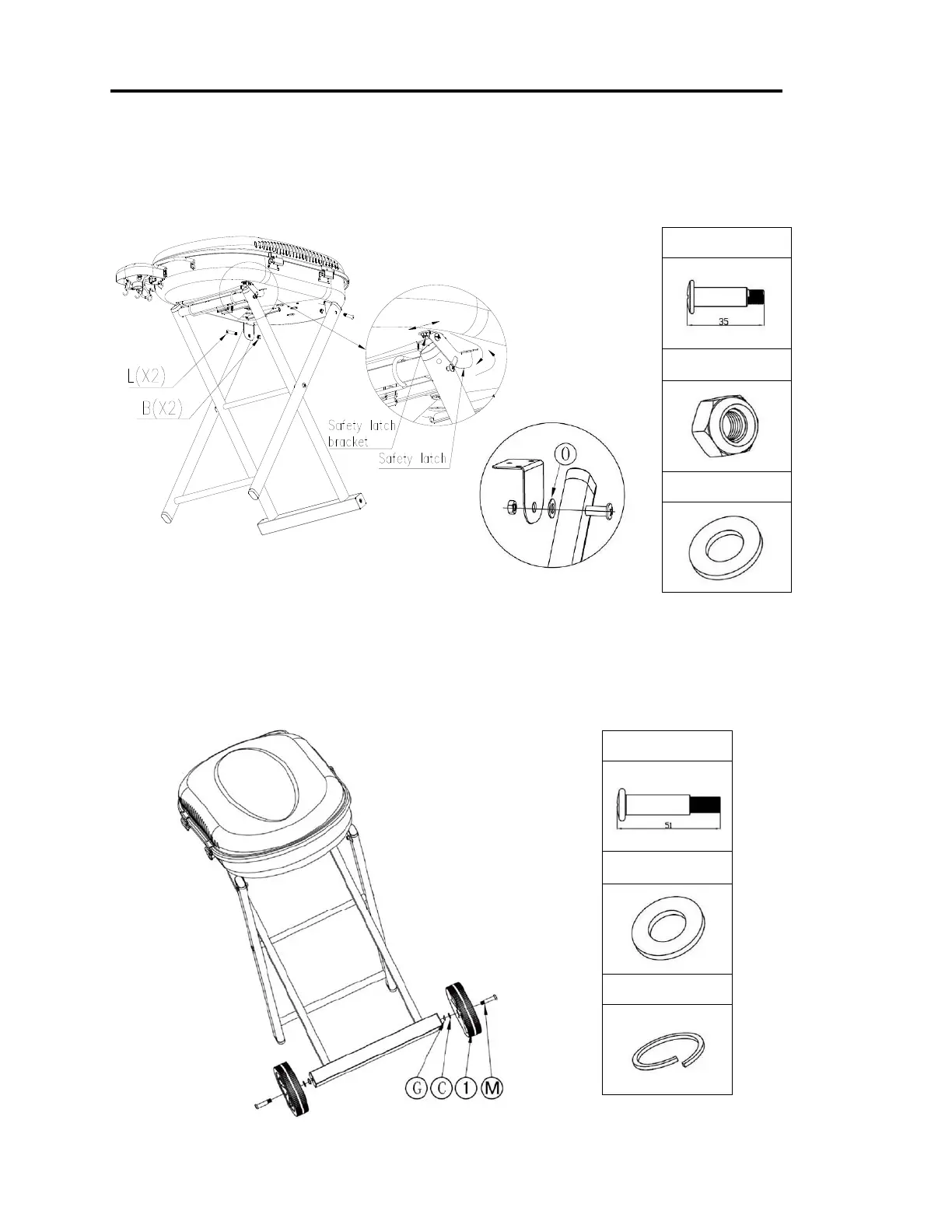

Step 5. Attach long leg assembly (14) to grill bottom using leg bolts (L) and M6 lock nuts
(B) and Heat resistant washer (O). When the legs are unfolded, the safety latch will
automatically slide over the pin in the leg to prevent the grill from accidentally collapsing.
Before folding the legs, lift the safety latch to allow the legs to fold. The safety latch bracket
can be adjusted if it does not fit over the pin correctly.
Step 6. Attach the wheels (1) to the short leg assembly (4 and 5) using the wheel bolts
(M), Flat Washer (C), and Lock Washer (G), and then attach wheel covers (3) by pressing
them into the wheel.
L. Leg Bolt (2PCS)
B. Lock Nut M6
(2PCS)
O. Heat Resistance
Washer (2PCS)
M. Wheel Bolt
(2PCS)
C. Flat Washer Ø8
(2PCS)
G. Lock Washer Ø8
(2PCS)
To Next Page
