9

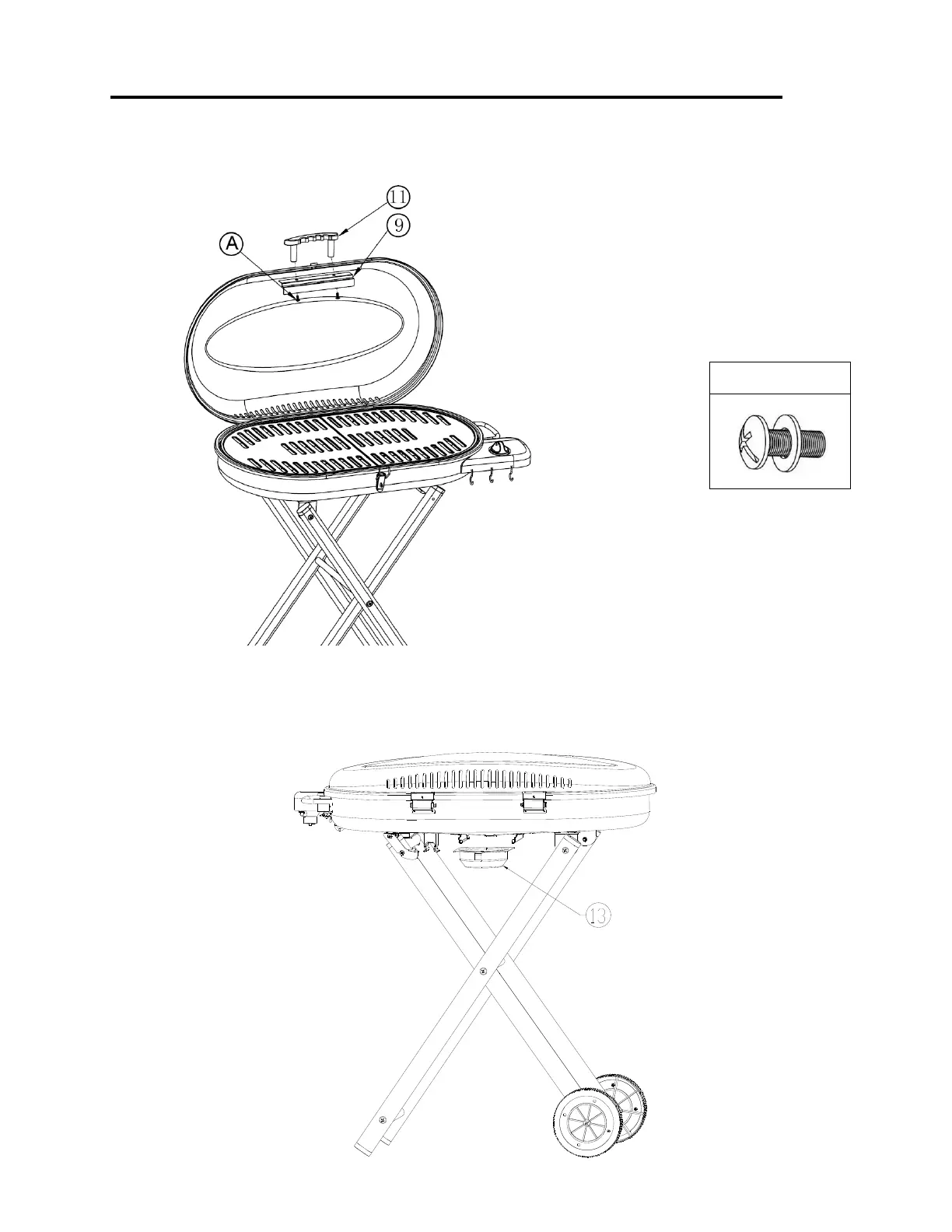

ASSEMBLY INSTRUCTION
Step 7. Attach lid handle (11), and cooking grid fix panel (9) using M6 x 16(A) with fibre
washer between bolt head and lid.
Step 8. Install grease cup (13).
A. Bolt M6 x 16 with
fibre washer (2PCS)
