Master Chef 280 Barbecue - Parts Identification; Parts List; Exploded Diagram

2 3

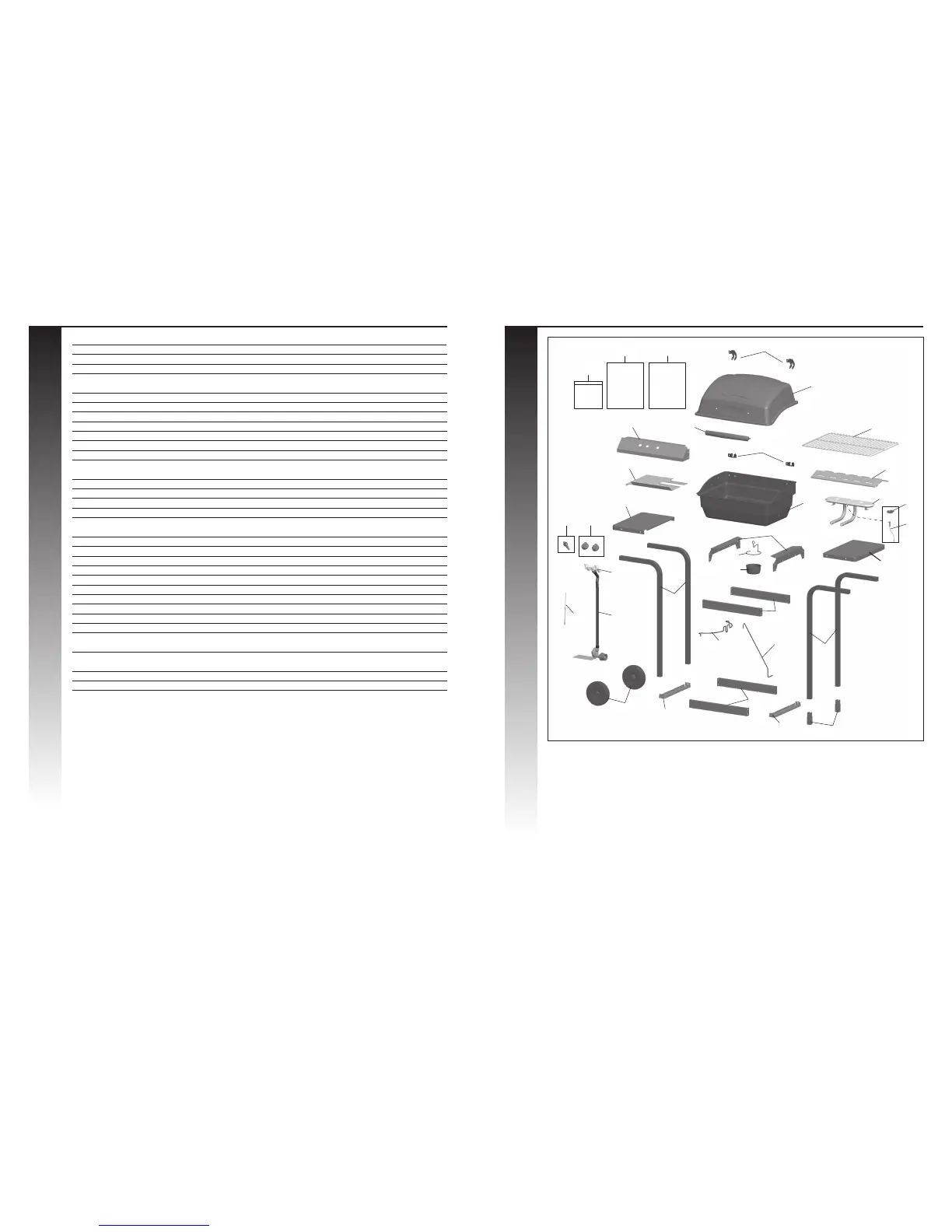

PARTS LIST PROPANE FOR 8530018 G20718 EXPLODED DIAGRAM PROPANE FOR 8530018 G20718
KEY # QUANTITY DESCRIPTION PART NO.
AA 1 Top lid assembly G208-0001-01
AB 1 Top lid handle G305-0090-01
AC 2 Upper hinge G206-0002-A1
BA 1 Burner box assembly G205-0010-02
BB 2 Lower hinge G206-0010-A1
BC 1 Cooking grate G206-0006-01
BD 1 Flame tamer G210-0003-01
BE 1 Burner G207-2400-01
BF1 1 Collector box G206-0014-02
BF2 1 Electrode G206-0302-01
BG 1 Heat shield G207-0032-01
CA 1 Control panel G207-0029-01
CB 2 Control knob G401-0023-01
CC 1 Ignitor G206-0701-01
CD 1 Valve assembly G208-3801-01
CE 1 Regulator G602-0050-01
DA 4 Cart legs G207-0023-01
DB 2 Burner box support G206-0017-02
DC 1 Grease cup hook G305-0043-01
DD 1 Grease cup G430-0033-02
DE 4 Support brace G207-0024-01
DF 1 Gas tank support G207-0027-01
DG 1 Tank exclusion G207-0026-01
DH 2 Bottom brace G207-0025-01
DI 2 Wheel G206-0025-01
DJ 2 End cap G206-0022-01
DK 1 Match holder G401-0079-01
EA 2 Side shelf G206-0065-01
F1 1 Assembly Manual G207-M018-01
F2 1 Hardware pack G207-B018-01
F3 1 Safe Use and Care Manual G207-M015-02
AC
AA
BC
AB
BB
CA
BG
CBCC
EA
DD
DC
DB
BD
BE
BF1
BF2
EA
DA
DJ
DH
DE
DH
DI
CE
CD
DA
DE
DG
DF
BA
DK
F2
F1
ASSEMBLY
MANUAL
F3
SAFETY
AND CARE
MANUAL
HARDWARE
PACK
F2
F1
