ASSEMBLY INSTRUCTIONS
6
7

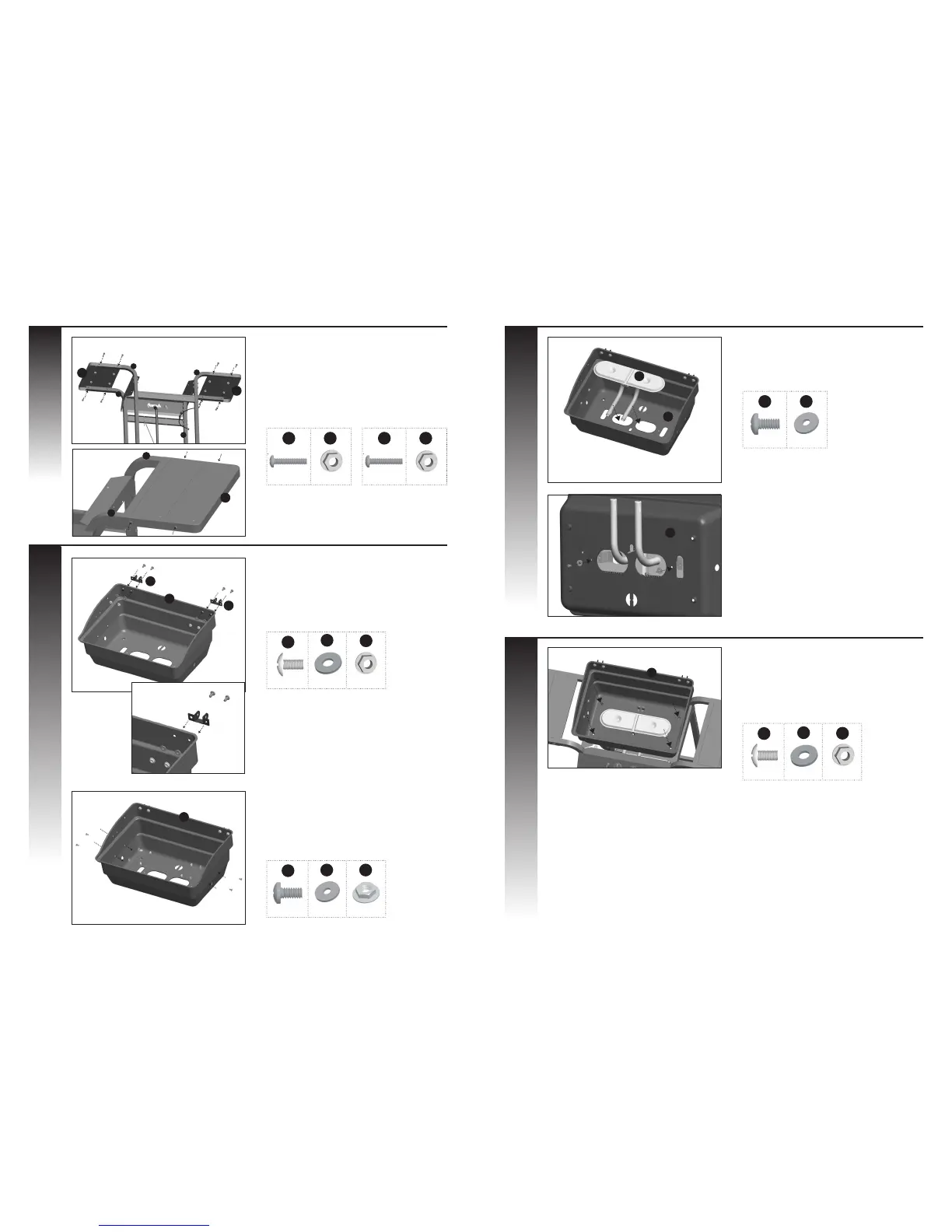

SIDE SHELF ASSEMBLY
a. Assemble a side shelf (EA) to the left cart legs
(DA), as shown.
b. Assemble a side shelf (EA) to the right cart legs
(DA), as shown.
BURNER BOX ASSEMBLY
a. Assemble the lower hinge (BB) x 2 on the back
of the burner box assembly (BA), as shown.
Note: Do not over tigthen
b. Assemble hardware into burner box assembly
(BA), as shown.
Note: This hardware will be used in a later step
to support the ame tamer (BD).
ASSEMBLY INSTRUCTIONS
8
9
Assemble the burner (BE) into the burner box
assembly (BA), with the burner venturi tubes
facing forward.
YOU WILL NEED:
YOU WILL NEED:
2
6
X 4
X 4
Position the burner box assembly (BA) onto the
burner box supports (DB).
Before assembling make sure the burner (BE)
engages the valve assembly (CD).
YOU WILL NEED:
YOU WILL NEED:
RIGHT LEFT
1 13 3
X 4 X 4X 4 X 4
6 9
X 2 X 2
YOU WILL NEED:
2
X 4
3
X 4
3
X 4
7
X 4
8
X 4
8
X 4
9
X 4
EA
EA
DA
DA
DA
DA
DA
DA
EA
BA
BB
BB
BA
BE
BA
BA
BA
