Master Chef BG1207G4 - Step 3 Attach Legs and Braces; Step 4 Attach Handles and Grease Cup

9
Assembly Instructions
Step 3
Step 4
B
8 Pcs
C 8 Pcs
D 4 Pcs
E 12 Pcs

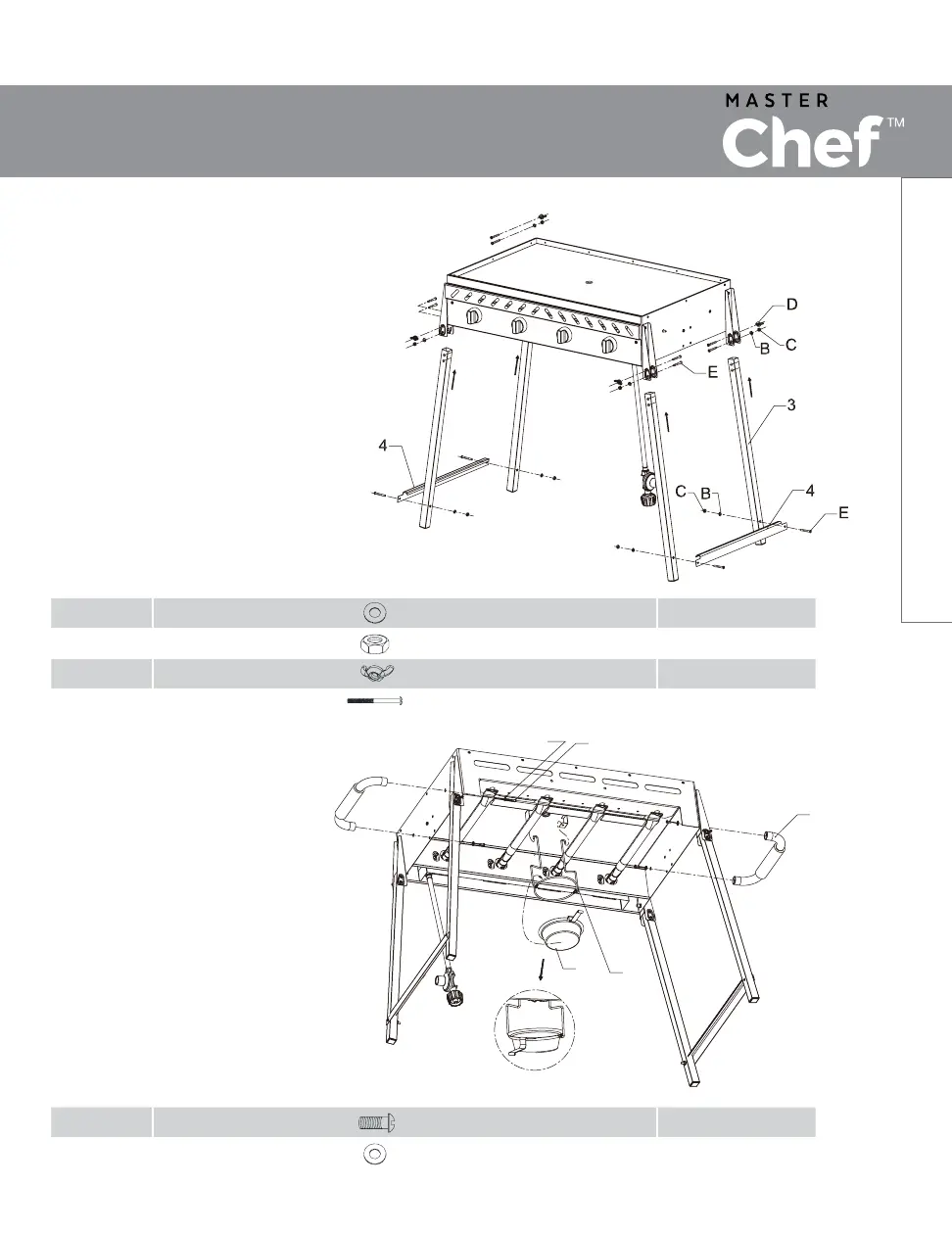

Attach the legs (3) to the leg support bracket
(2) using long screws (E), washers (B), nuts
(C) and wingnuts (D). Then attach the leg
cross brace (4) using long screws (E),
washers (B) and nuts (C) on the left side. Continue another leg cross
brace (4) on the right using long screws (E), washers (B) and nuts (C).
Attach the handles (7) to the both side of the
firebox using screws (F) and washers (B). Attach
the grease cup hook (9) underneath the firebox
and insert the grease cup (8) onto the grease cup hook.
F 4 Pcs
4 Pcs
B
7
8
F
B
9
