16
ASSEMBLY INSTRUCTIONS
13
DI
DI
17
A
B
14
EA
EA
CK
CK

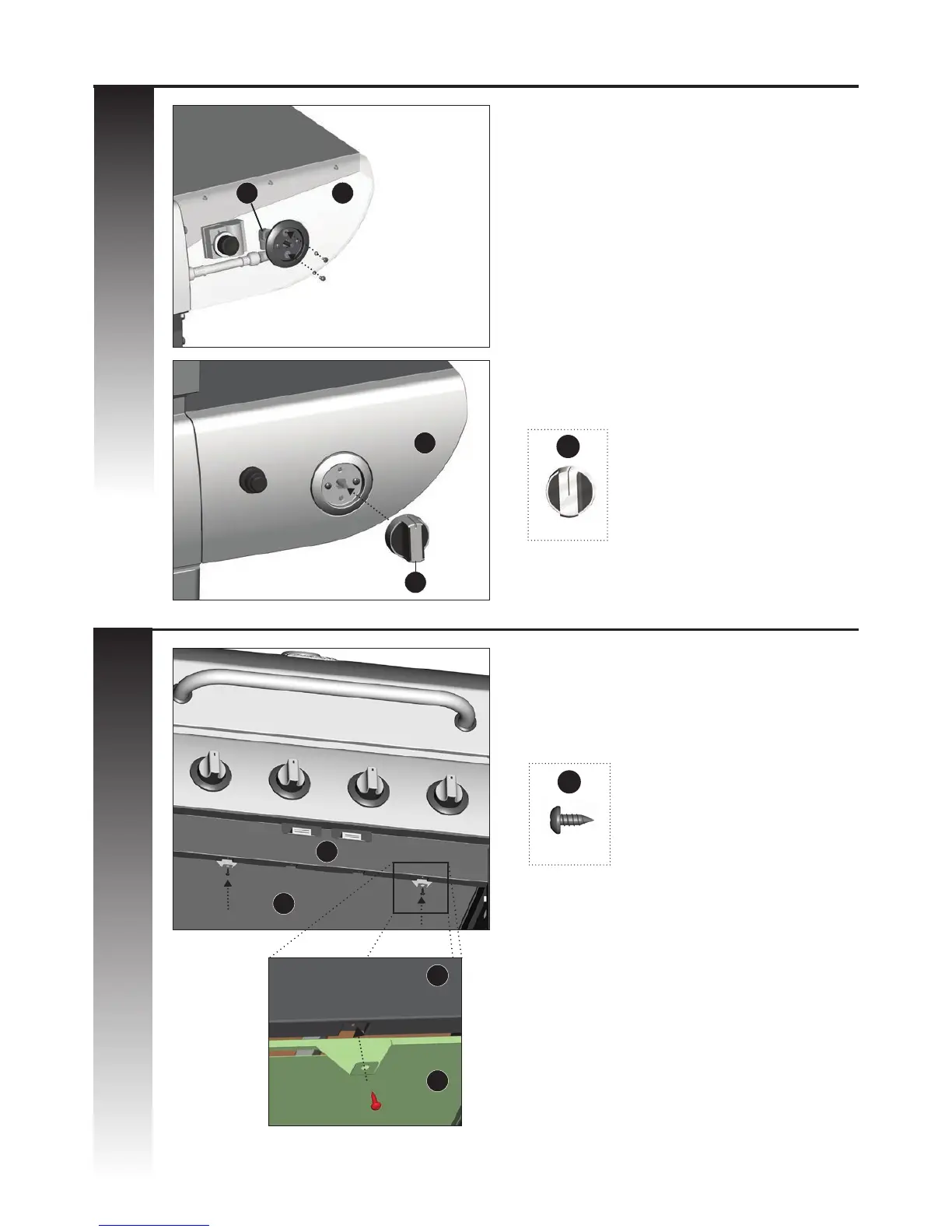

Assemble the Heat Shield (CK) to the bottom of
the Door Support Rail (EA) and the Upper back
panel (BH), as shown in gure A and B.
YOU WILL NEED:
15
X 2
Front view
Close up
A
YOU WILL NEED:
17
X 1
a. Remove the hardware that is pre-assembled
to the Rotisserie Burner Valve (BN), as shown in
gure A
Assemble the Rotisserie Burner Valve (BN)
to the Right Side Shelf Fascia (DI), using the
hardware removed.
b. Assemble the Side Burner Control Knob (#17)
to the Rotisserie Burner Valve (BN).
BN
To Next Page
