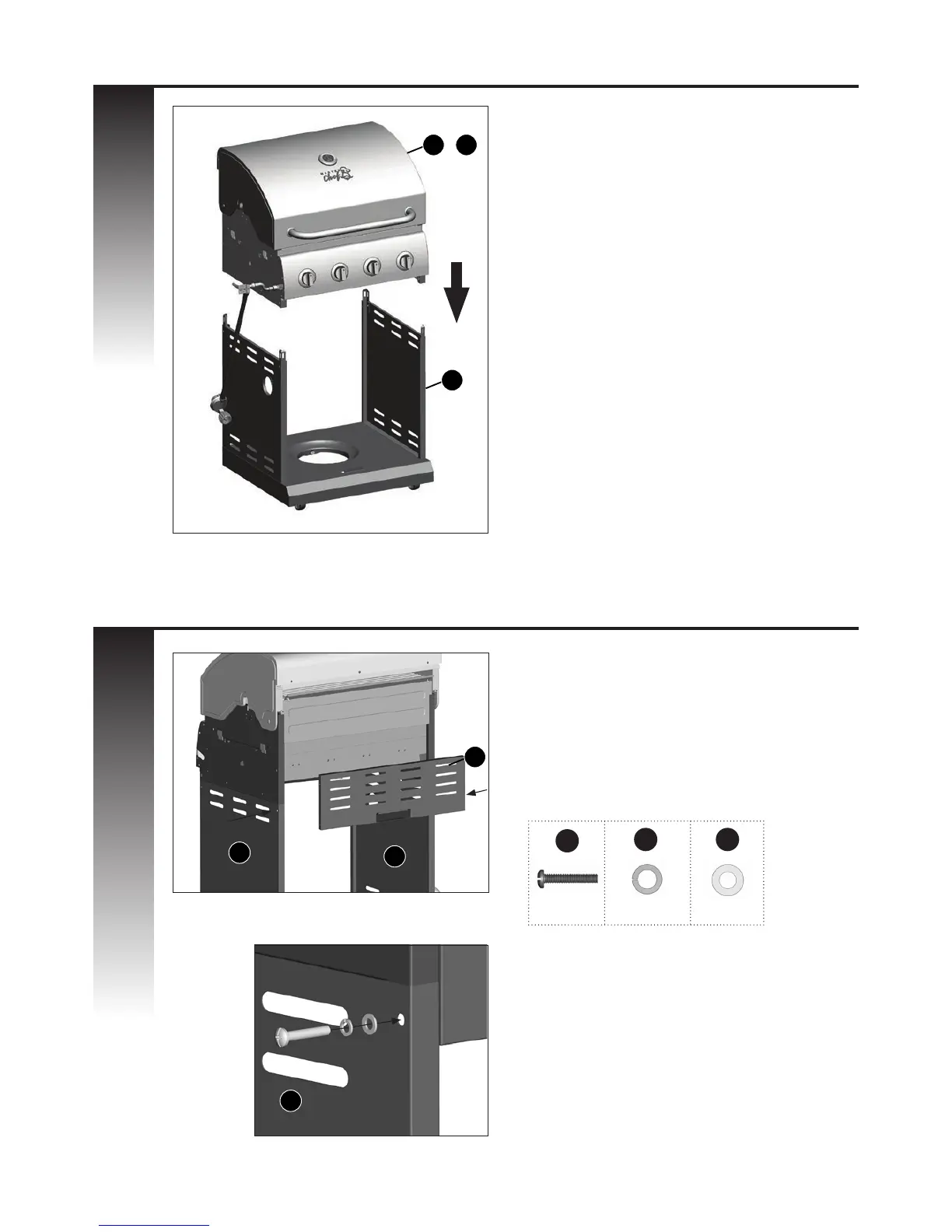

ASSEMBLY INSTRUCTIONS
Front View
THIS STEP REQUIRES 3 PEOPLE. DO NOT
ATTEMPT ALONE. EXTREMELY HEAVY!
Position the Top Lid Assembly and Burner Box
Assembly (A & B) onto the Cart Assembly (C), as
shown.
A
C
B
+
Back View
Close Up
BH
EB
EC
EC
Attach the Upper Back Panel (BH) to both the
Left And Right Side Panels (EB & EC).
Attention: Assembly of the Upper Back Panel
(BH) will be completed in Step 8 and 11.
876
YOU WILL NEED:
1
X 2
6
X 2
5
X 2
