10. MOUNTING INSTRUCTIONS
MOUNTING THE CHARGER TO THE FENDER WELL:
The charger can be mounted directly to the fender well of your vehicle,
as shown, using the double-sided adhesive and cable tie (included).

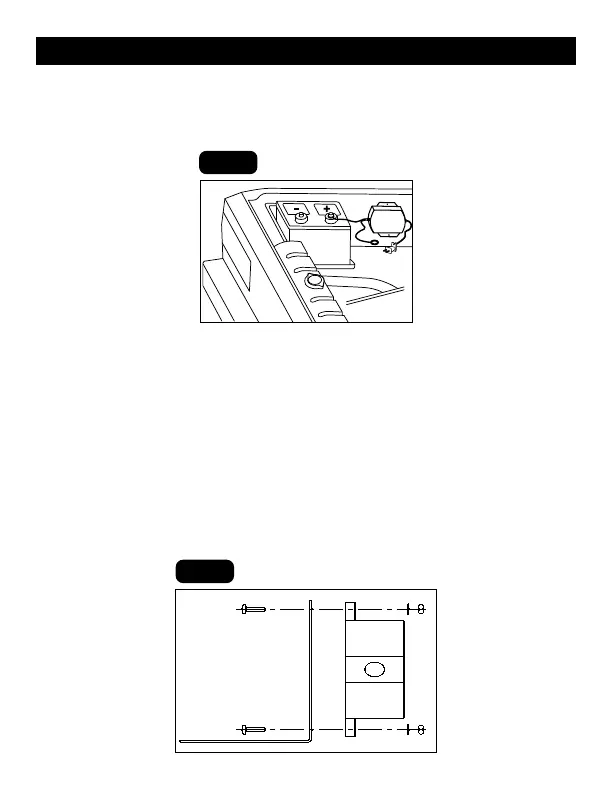

Fig. 1
MOUNTING THE CHARGER ALONGSIDE THE BATTERY:
The charger can also be mounted alongside your vehicle’s battery,
using the bracket (sold separately). If possible, mount the charger
to the side of the battery away from the engine and fan blades.
Mount the bracket to the charger as shown using the nuts and
bolts provided with the bracket. Loosen the battery retaining hard-
ware enough that you can insert the bracket between the bottom
of the battery and the battery mounting tray as shown. Position
the charger so that it will not rub against the battery or any other
part of the vehicle, and then tighten the battery retaining hardware.
NOTE: Do not drill or puncture the battery.
Mounting bracket
(sold separately)
Fig. 2
