ELECTRICAL INSTALLATION:
The output leads of the charger are terminated with 3/8˝ dia. ring
lugs. Route and secure the AC cord and the output wiring away from
the gas line, carburetor or other hot, sharp, moving or pinch parts to
avoid damage to the insulation. Secure the AC cord using a cable
tie or equivalent. If you have difficulty connecting the output leads,
consult your local auto supply store, they may assist you in finding a
connecting device for your application.

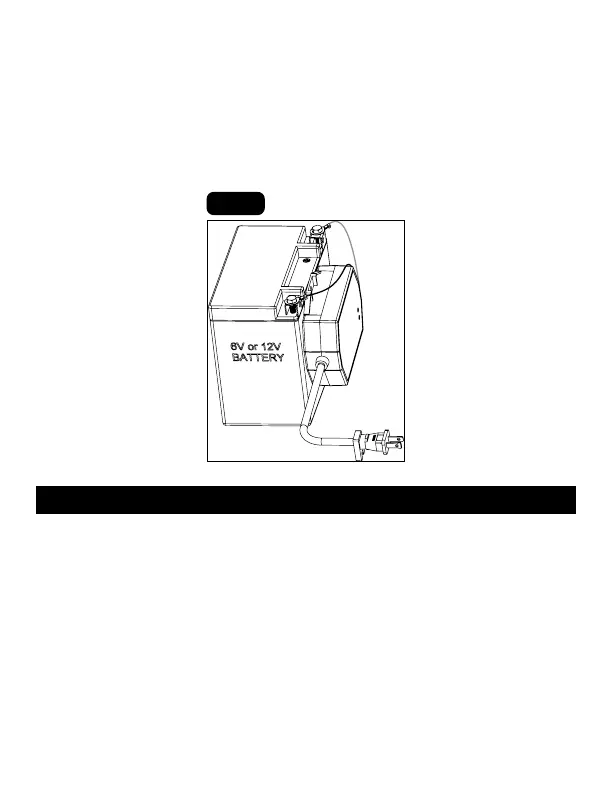

Fig. 3
11. LED INDICATORS
RED LED (solid): The charger is charging the battery.
RED LED (flashing): The connections are reversed or the battery is bad.
GREEN LED (solid): The battery is fully charged and the charger is in
maintain mode.
NOTE: See Operating Instructions for a complete description of the
charger modes.
