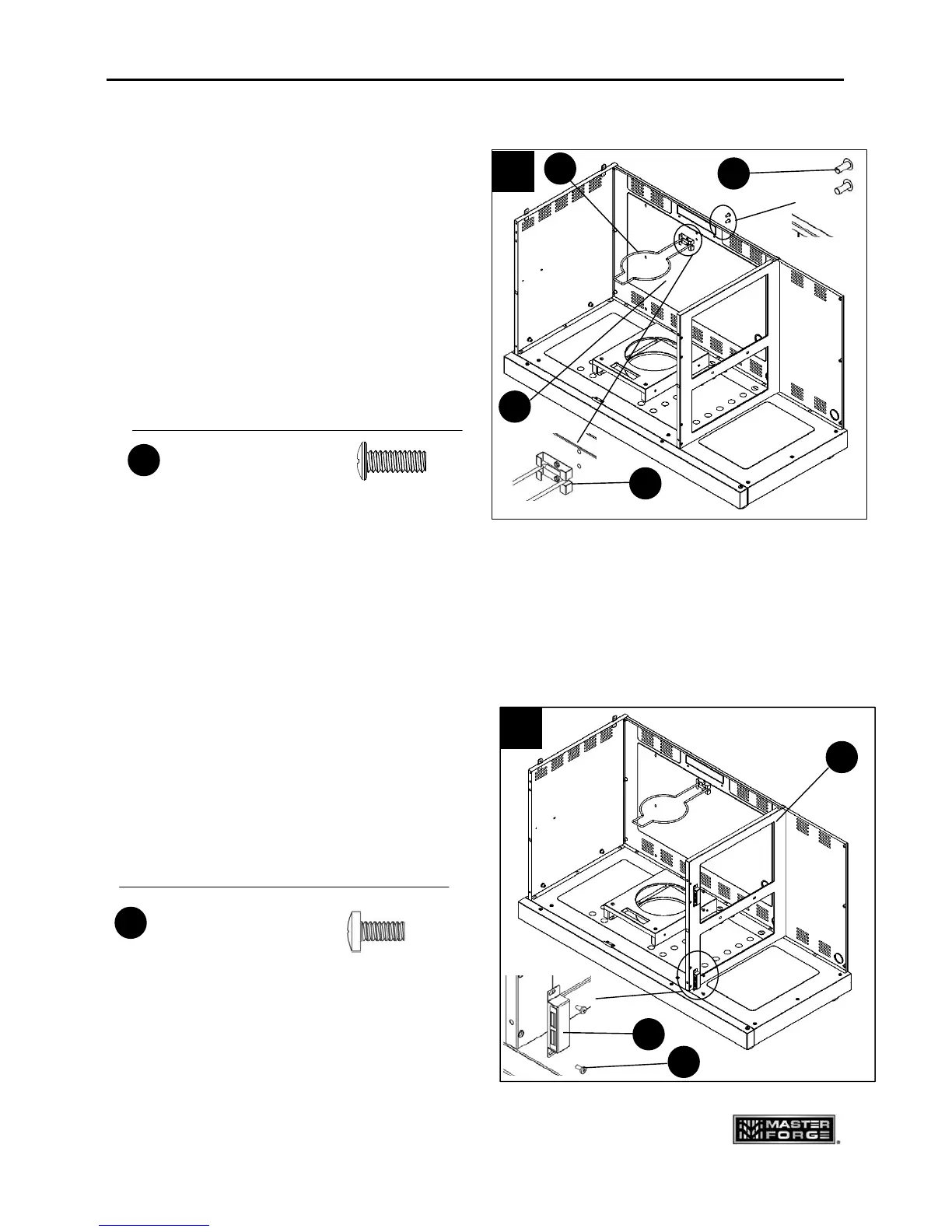

7. Slide the tank ring bracket (M) to the end
of the patented safety tank ring (AC) as shown.
Then align the holes in the ring bracket with
left rear panel (I), insert screws (BB)
into the holes from outside of grill, and then
tighten completely.
(Fig. 7)
8. For the door magnet (L), there are four
screws (CC) to connect to the center panel (K).
Insert the screws into the aligned holes and
tighten them. (Fig. 8)
Hardware Used
1/4-20 x 5/8 in.
Screw
X 2
BB
7
BB
M
AC
I
8
CC
L
K
CC
Hardware Used
5/32-32 x 3/8 in.
Screw
X 4
To Next Page
