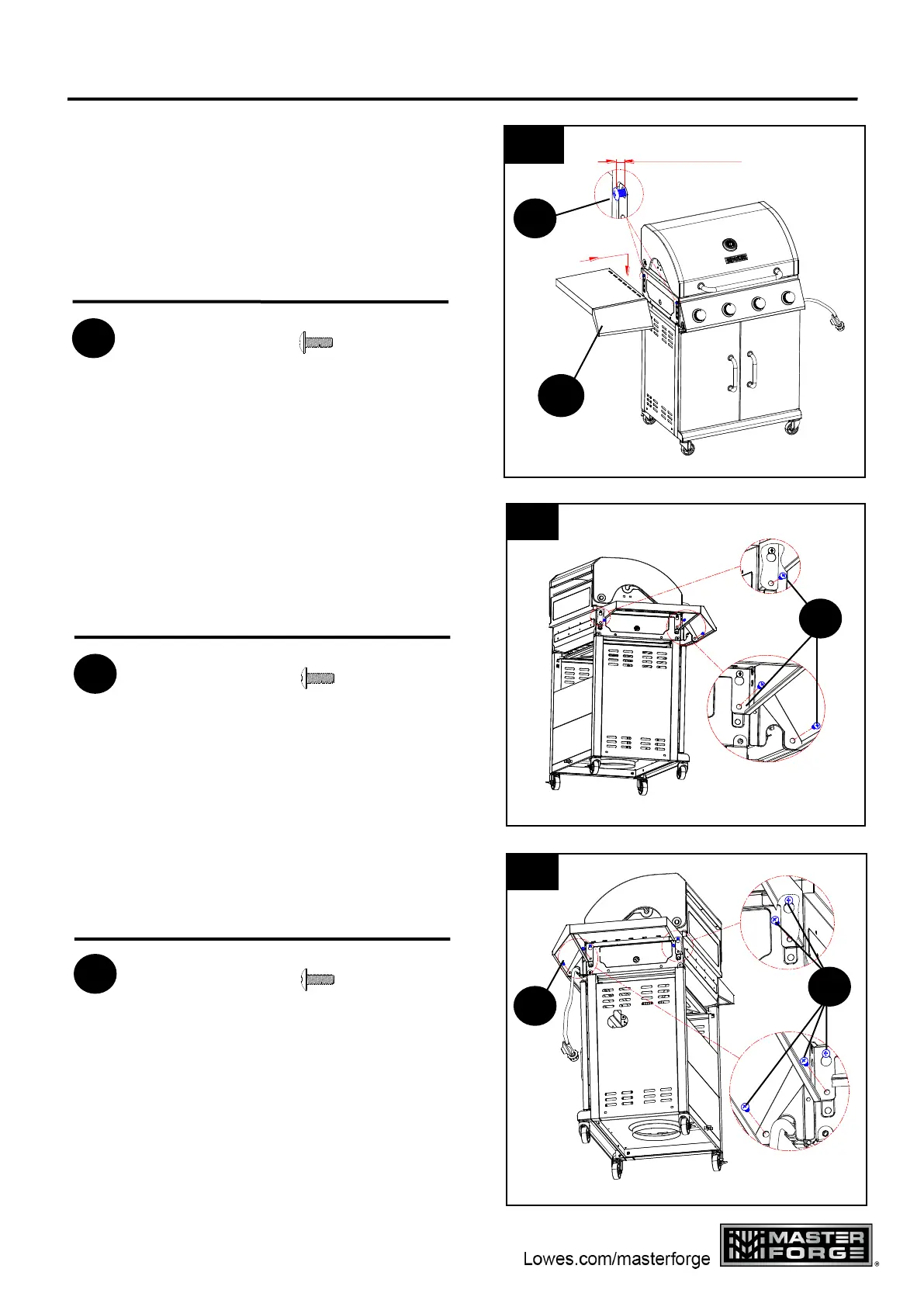

ASSEMBLY INSTRUCTIONS
14. Insert 3 M6 x 16 mm screws (BB) where
shown to secure the left shelf (K) to the
firebox. Fully tighten all screws from this step
and Step 13.
Hardware Used
M6 x 16 mm Screw
X 6
AA M4X8mm Screw
x 3
BB
5mm
BB
14
Attach Left Side Shelf to the Firebox
13. Insert 2 M6 x 16 mm screws (BB) into the
upper holes on the left side of the firebox,
leaving approximately 0.2 in. of the screw
heads protruding outward. Hang left shelf (K)
onto the screw heads.
Hardware Used
M6 x 16 mm Screw
X 6
AA M4X8mm Screw
x 2
BB
0.2 inches
BB
K
13
15. Repeat Steps 13 and 14 on the right side of
the firebox for the right shelf (U).
Hardware Used
M6 x 16 mm Screw
X 6
AA M4X8mm Screw
x 5
BB
BB
U
