Master Forge BG2724B-L User Manual

12

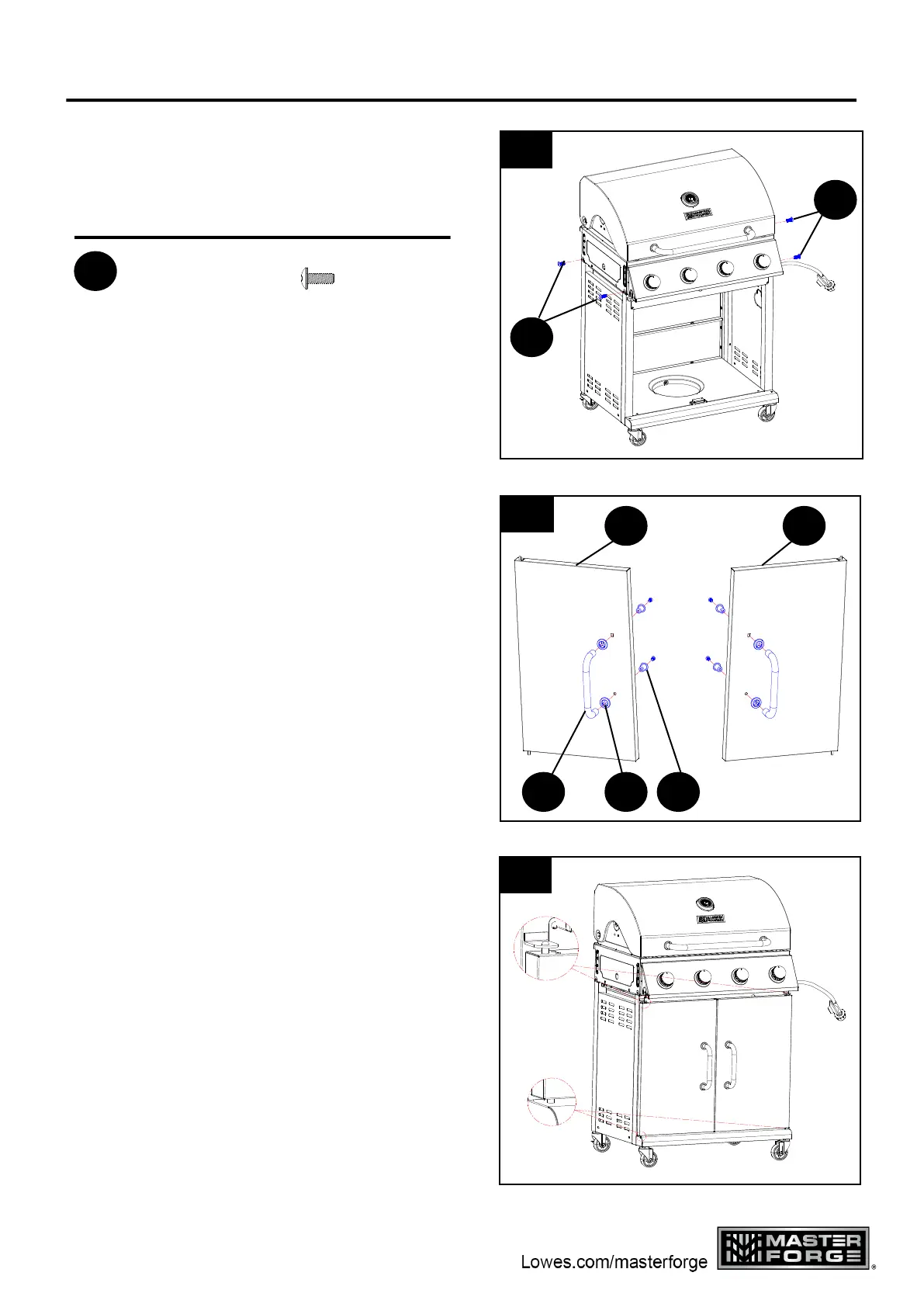

ASSEMBLY INSTRUCTIONS
12. Attach the door assemblies to the front of
the item, ensuring the spring clips
preassembled to the doors are facing upward.
12
11. Remove the preassembled M5 x 16 mm
screws, door handle sleeves (A2) and door
handle bezels (A3) from door handles (A4).
Then, attach a door handle (A4) to left door
assembly (A5) and right door assembly (A1)
where shown using the M5 x 16 mm screws
and door handle sleeves (A2) on the inside.
A1
A5
A2
A3
A4
11
BB
BB
10
M6 x 16 mm Screw
X 6
AA M4X8mm Screw
x 4
10. Attach the assembly from Step 9 to the
base assembly using M6 x 16 mm screws
(BB) where shown.
Hardware Used
BB
