Service and Drain Piping:
1. Pipe Filter into the service lines .The inlet and outlet connections of the
control valve are 1” copper or PVC and are located on the back of the
valve body. As you face the timer the inlet is on the left and the outlet is
on the right. Always follow local plumbing codes when installing our
water treatment equipment.
2. If sweat fittings are used, be sure soldering is done in such a manner
as not to allow heat to reach the control valve or bypass. (If Schedule
80 PVC is used make sure to follow the proper primer and solvent
instructions.)
3. The drain line connection is located on the back of the control valve as
you face the timer. It is recommended you install a 3/4” union on the
drain line for servicing. The drain line must be of adequate size to allow
for full regeneration flow.

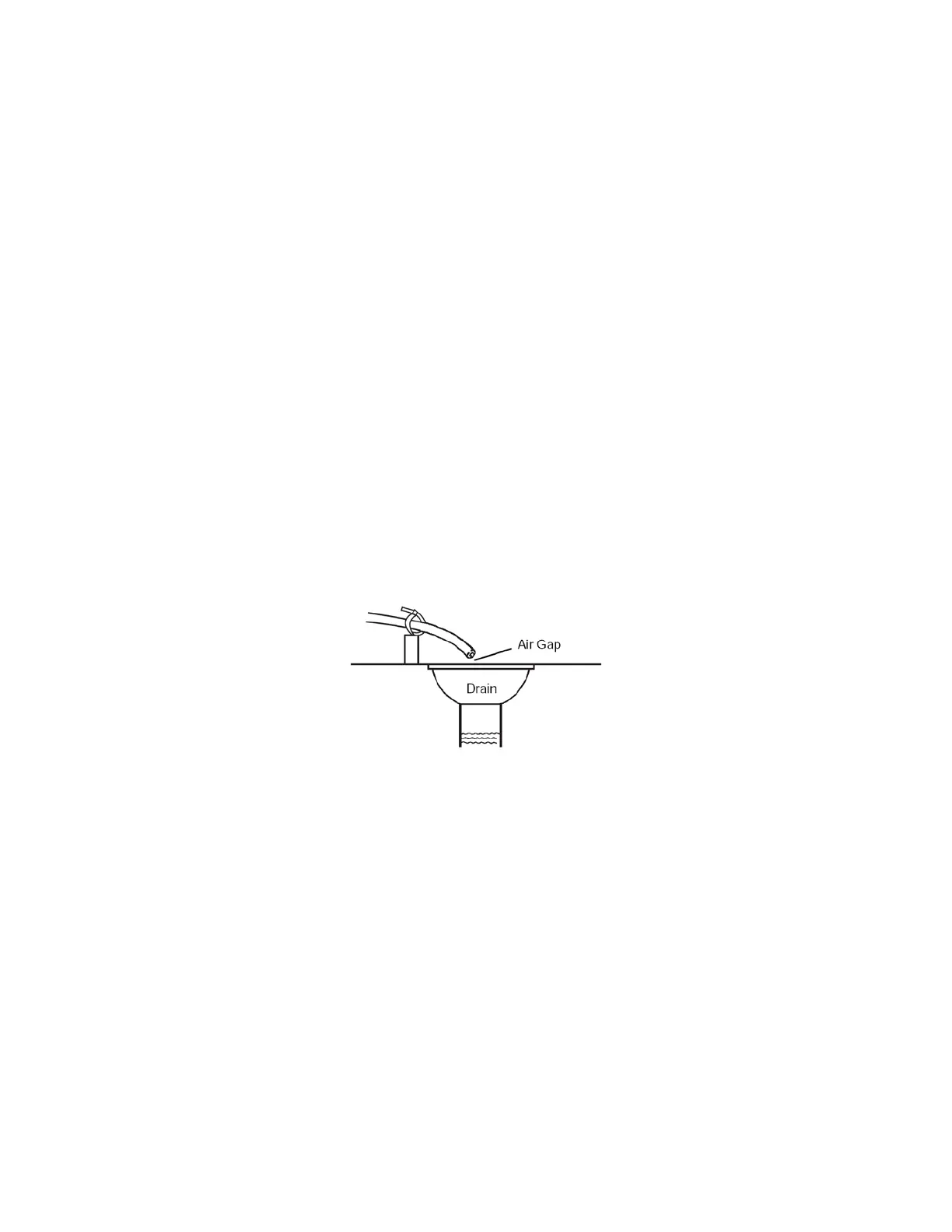

Figure 3
• The control valve drain connection is 3/4" npt.
• Never decrease the drain piping size to below 3/4”
• Maximum drain line length is 20 feet.
• Maximum drain line height is 6 feet above the control
valve.
• The drain line must be piped to an open air gap (See
Figure 3)
• Always follow local plumbing codes.
UNDER NO CIRCUMSTANCES SHOULD THERE BE A DIRECT
CONNECTION WITH SANITARY SEWAGE FACILITIES.
