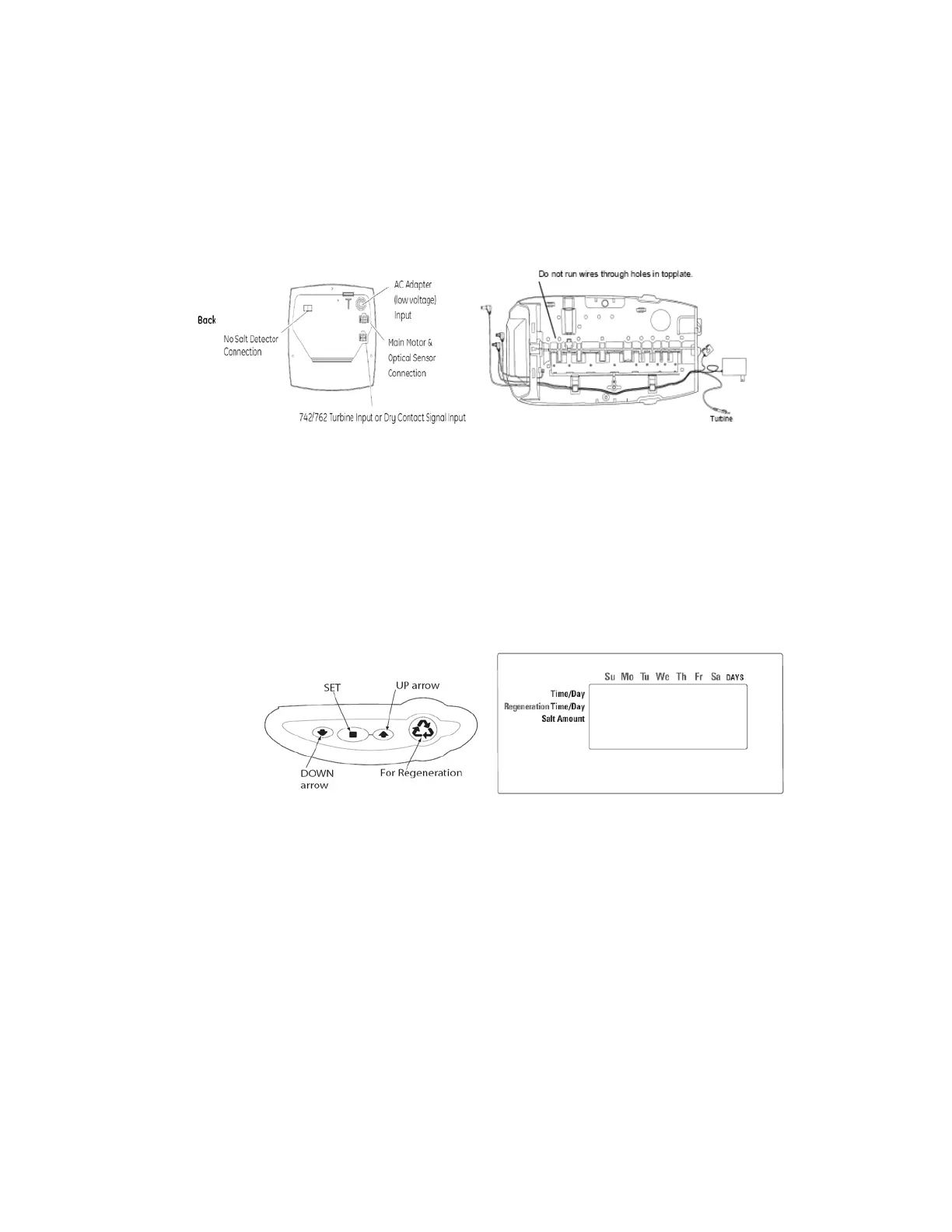

Logix Control Valve Electrical Connection:
Note: Do not touch the wiring harness between the Logix timer and
the motor, it’s positioning is critical and therefore already installed
at the factory.
1. Remove plastic control valve cover by spreading sides while lifting.
2. Plug transformer into back of timer following existing wires.
3. Plug transformer into a properly grounded 120V/60 HZ electrical outlet.
4. The screen will now display “263” then the “Time of Day”.
Filling Simplus with Water:
Figure 4
1. Push the FOR REGENERATION button (Figure 4) on the controller
down for 5 seconds. This will initiate a manual regeneration. You will
notice a flashing hour glass during regeneration.
The controller will indicate that the motor is turning the camshaft
to cycle C1 (BACKWASH). The controller will indicate the total
regeneration time remaining. Filling tank in this position allows air
to escape from drain.
Open the bypass inlet valve ¼ turn and allow water to flow into the
mineral tank at a slow rate.
Warning: IF WATER ENTERS THE TANK TOO FAST, ALL THE
MEDIA WILL BE FLUSHED TO DRAIN DURING START UP.
