ARMADO
9
20
19
13
22
ST4x10

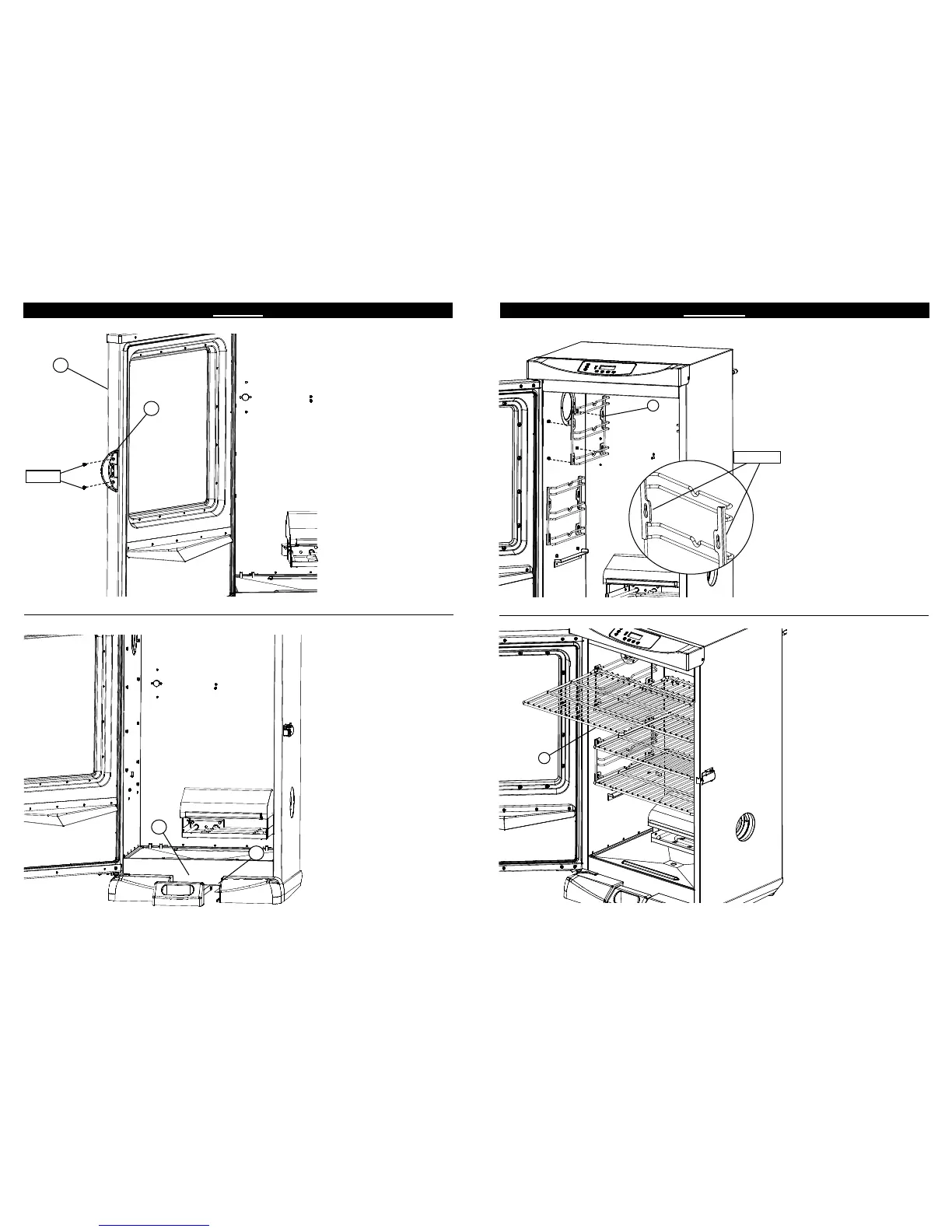

PASO 7
Coloque la manilla de la puerta
(20) sobre la puerta con ventanilla
(19) como se ilustra. Fíjela con
ST4x10 tornillo de cabeza plana.
PASO 8
Deslice la bandeja para la grasa
(13) sobre las piezas de apoyo
de la bandeja para la grasa
(22).
ASSEMBLY
STEP 9
Align keyholes on grate sup-
ports (6) with studs on the in-
side of smoker body as shown.
Press grate support down to
secure in place.
Repeat step for remaining grate
supports on both sides.
STEP 10
Place smoking racks (4) inside
smoker as shown.
10
4
6
KEYHOLES
