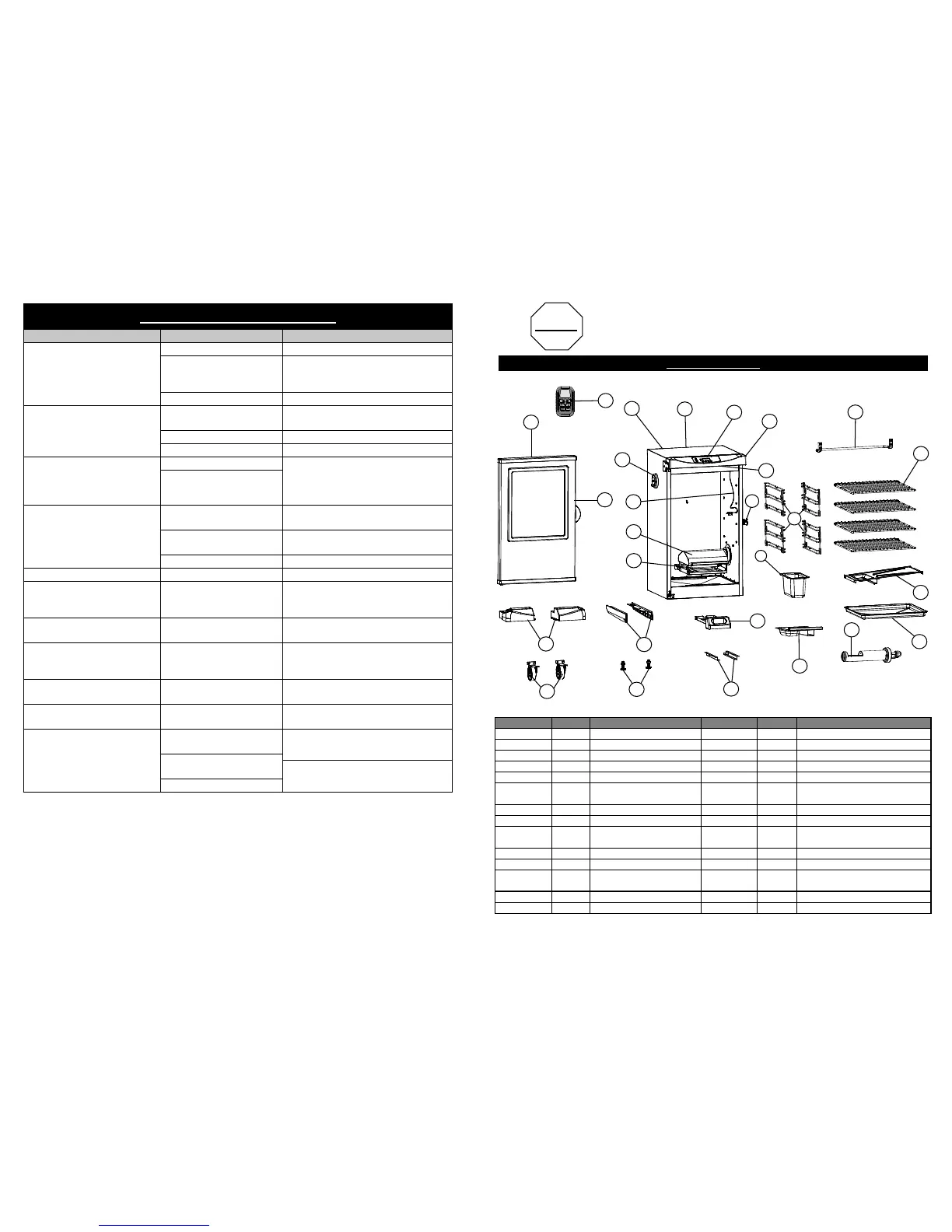

Masterbuilt 20073012 User Manual

TROUBLESHOOTING GUIDE
SYMPTOM CAUSE POSSIBLE SOLUTION
Power light won’t come on Not plugged into wall Check wall connection
House fuse tripped Make sure other appliances are not
operating on the same electrical
circuit. Check household fuses.
Controller malfunctioning Contact Masterbuilt at 1.800.489.1581
Unit takes excessive amount
of time to heat up
(longer than 60-70 min)
Unit plugged into an exten-
sion cord
Set unit so an extension cord does
not have to be used
Door not closed properly Close door and fasten latch securely
Controller malfunctioning Contact Masterbuilt at 1.800.489.1581
There is a gap between the
door and the smoker when
in use and door latch has no
more adjustment
Door alignment Contact Masterbuilt at 1.800.489.1581
Damaged door seal
Grease is leaking out of smok-
er through door and legs
Drip pan not in place Reposition so hole lines up with drain
hole in bottom of unit
Excess grease or oil build-
up in unit
Clean unit
Drain tube is not draining Check drain tube
No smoke No wood chips Add wood chips (See Page 12)
Temperature rapidly de-
creased or shut down after
few hours of use
Faulty control unit Contact Masterbuilt at 1.800.489.1581
Controller displaying error
message
Controller malfunctioning Contact Masterbuilt at 1.800.489.1581
Power light is on, unit isn’t
heating
Controller/unit malfunction-
ing
Contact Masterbuilt at 1.800.489.1581
Controller does not adjust heat Controller/unit malfunction-
ing
Contact Masterbuilt at 1.800.489.1581
Meat probe temperature does
not show on display
Probe malfunctioning Contact Masterbuilt at 1.800.489.1581
Remote will not control smoker Batteries are weak or in-
stalled wrong
Refer to page 13 instructions
Remote is not linked prop-
erly to controller
Contact Masterbuilt at 1.800.489.1581
Remote malfunctioning
15
4
LISTA DE PIEZAS
¡ALTO!
NO DEVUELVA EL PRODUCTO AL MINORISTA: Si necesita asistencia
con el armado, le faltan piezas o tiene piezas dañadas, llame al Servicio
de atención al cliente de MASTERBUILT, al 1-800-489-1581.
Cuando llame, tenga a mano el número de modelo y el número de serie.
Estos números fi guran en una etiqueta plateada ubicada en la parte trasera de la unidad.
PIEZA No. CANT. DESCRIPCIÓN PIEZA No. CANT. DESCRIPCIÓN
1 1 Cuerpo del ahumador 14 2 Rueda
2 1 Tablero de control 15 1 Elemento
3 1 Manilla trasera 16 1 Tapa para los trocitos de madera
4 4 Rejilla de ahumado 17 1 Termómetro para la carne
51Defl ector de residuos 18 1 Regulador de ventilación
64
Piezas de apoyo de de las
rejillas
19 1 Puerta con ventanilla
7 1 Cerrojo de la puerta 20 1 Manilla de la puerta
8 1 Recipiente para el agua 21 2 Pata delantera
91
Bandeja para trocitos de
madera
22 2
Pieza de apoyo de la bandeja
para la grasa
10 1 Colector de residuos 23 2 Panel lateral
11 2 Pata roscada ajustable 24 1 Bisagra de la puerta
12 1
Cargador de trocitos de
madera
25 1 Cubierta del tablero de control
13 1 Bandeja para la grasa 26 1 Luz de LED
27 1 Control Remoto
8
10
11
12
18
14
19
20
21
22
13
23
24
1
2
27
26
15
16
17
25
3
4
7
5
9
6

Masterbuilt 20073012 Specifications
