13

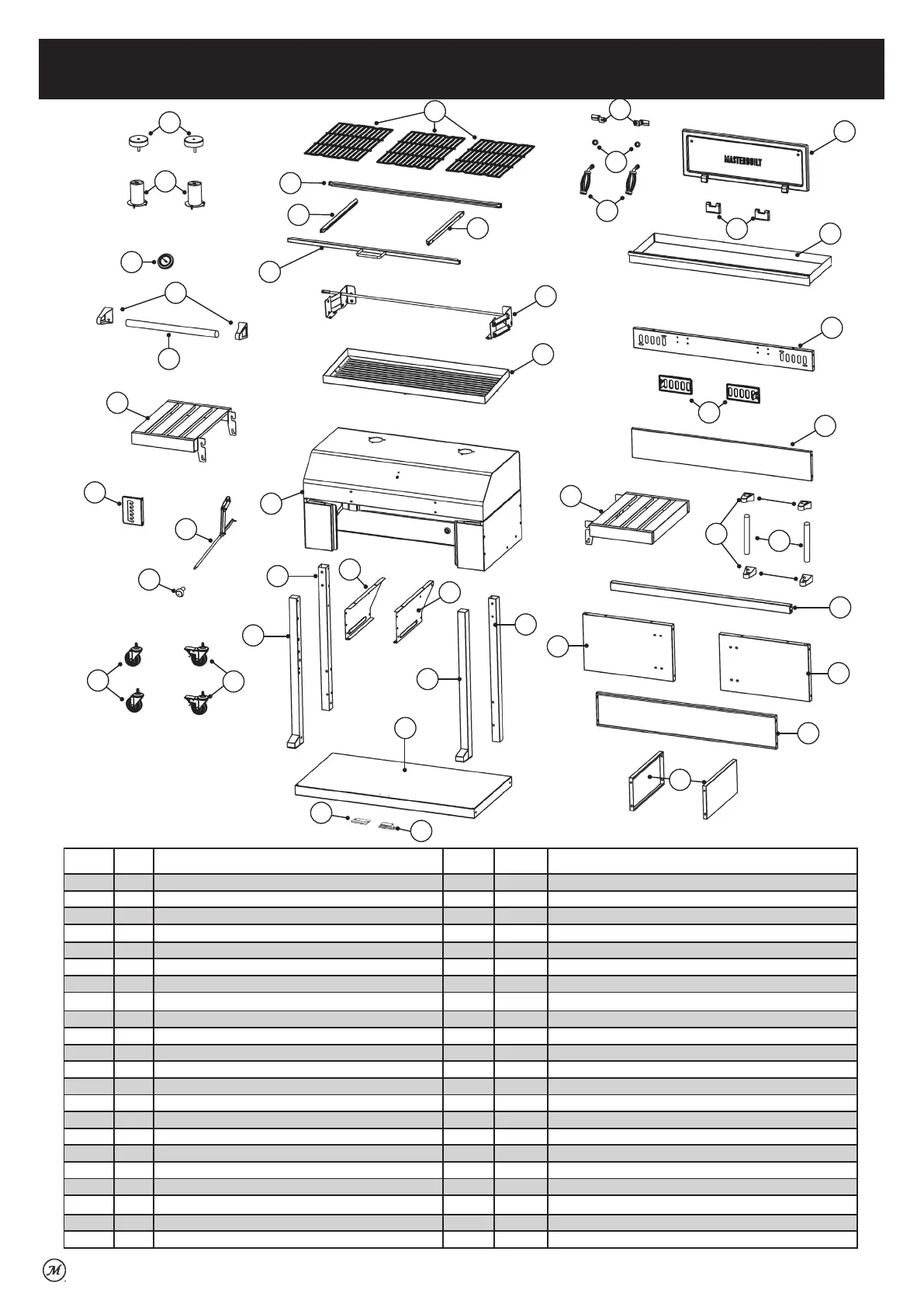

Parts List | Liste des pièces | Lista de partes
Actual product may differ
from picture shown.
13
14
15
1
2
36
33
31
30
29
3
4
5
6
7
24
27
28
8
9
6
16
12
21
44
41
26
20
23
10
11
19
22
43
42
40
38
39
35
25
17
18
37
34
32
Item #
Qty Description
Item #
Qty Description
1 2 Smoke Stack Cap 23 1 Right Front Leg #2
2 2 Smoke Stack 24 1 Firebox Left Lower Panel
3 1 Temperature Gauge 25 1 Firebox Right Lower Panel
4 2 Lid Handle Stand-Off 26 1 Cart Bottom Shelf
5 1 Lid Handle 27 1 Door Stopper
6 2 Side Shelf 28 1 Door Magnet
7 1 Slotted Adjustment Panel 29 2 Charcoal Door Locking Latch
8 1 Charcoal Tray Linkage Assembly 30 2 Charcoal Door Handle Washer
9 1 Charcoal Tray Linkage Knob 31 2 Charcoal Door Handle
10 2 Caster Wheels 32 1 Charcoal Door
11 2 Locking Caster Wheels 33 2 Charcoal Door Hinge
12 3 Cooking Grate 34 1 Ash Tray
13 1 Cooking Grate Rear Frame 35 1 Cart Front Panel
14 1 Cooking Grate Left Side Frame 36 2 Air Damper
15 1 Cooking Grate Right Side Frame 37 1 Cart Rear Panel
16 1
Cooking Grate Front Frame with Handle
38 4 Door Handle Stand-Off
17 1 Charcoal Tray Lift Assembly 39 2 Door Handle
18 1 Charcoal Tray 40 1 Cabinet Top Panel
19 1 Lid and Firebox Assembly 41 1 Cabinet Left Door
20 1 Left Rear Leg #3 42 1 Cabinet Right Door
21 1 Left Front Leg #2 43 1 Cabinet Rear Panel
22 1 Right Rear Leg #1 44 2 Cabinet Panel
