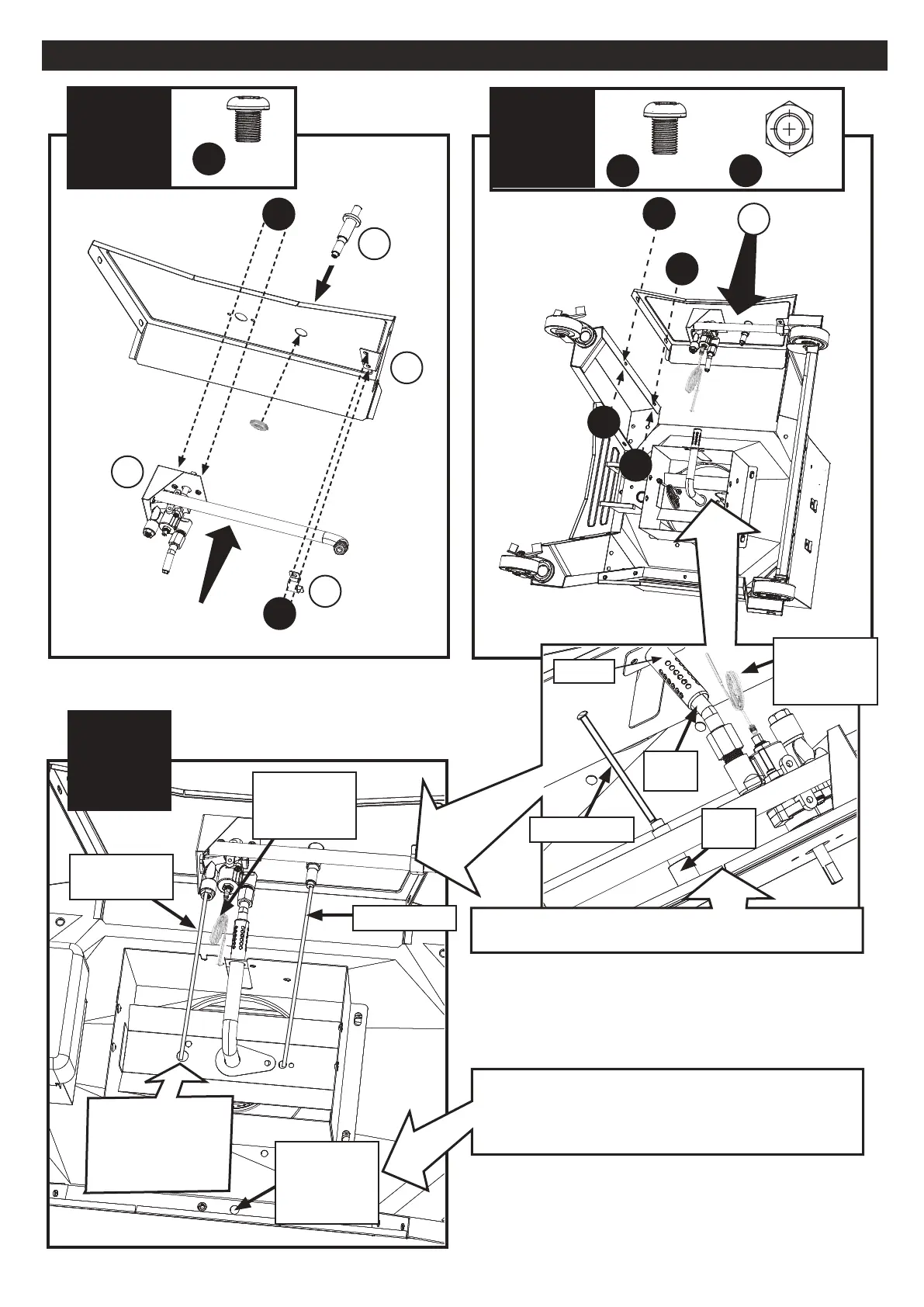

Masterbuilt MPS 330G - Smoker Assembly - Burner and Controls; Install Burner, Valve, Ignition, Sensors

14
D
D
19
21
37
17
ASSEMBLY
7
D
x4
9
Hole for
Cabinet
Temperature
Sensor
A
A
F
F
FA
x4x4
19
8
Valve
Orice
Piezo
Ignitor
Venturi
Ignition Wire
Carefully uncoil the cabinet temperature sensor wire and locate
the hole at the back of the smoker body (shown here). USE
EXTREME CARE NOT TO CRIMP OR BREAK THE CABINET
TEMPERATURE SENSOR WIRE (oil lled).
Align venturi over valve orices and attach ignition wire to piezo
ignitor on control panel.
Ignition Wire
CAUTION: Over bending the cabinet temperature sensor wire
could result in damage.
Cabinet
Temperature
Sensor Wire
Carefully attach the
ame sensor wire to the
valve as shown. Ensure
fully tightened.
Flame
Sensor Wire
Cabinet
Temperature
Sensor Wire
