Masterbuilt SIGNATURE Series User Manual

7
ASSEMBLAGE
Y
CC
A
CC
Quincaillerie utilisée

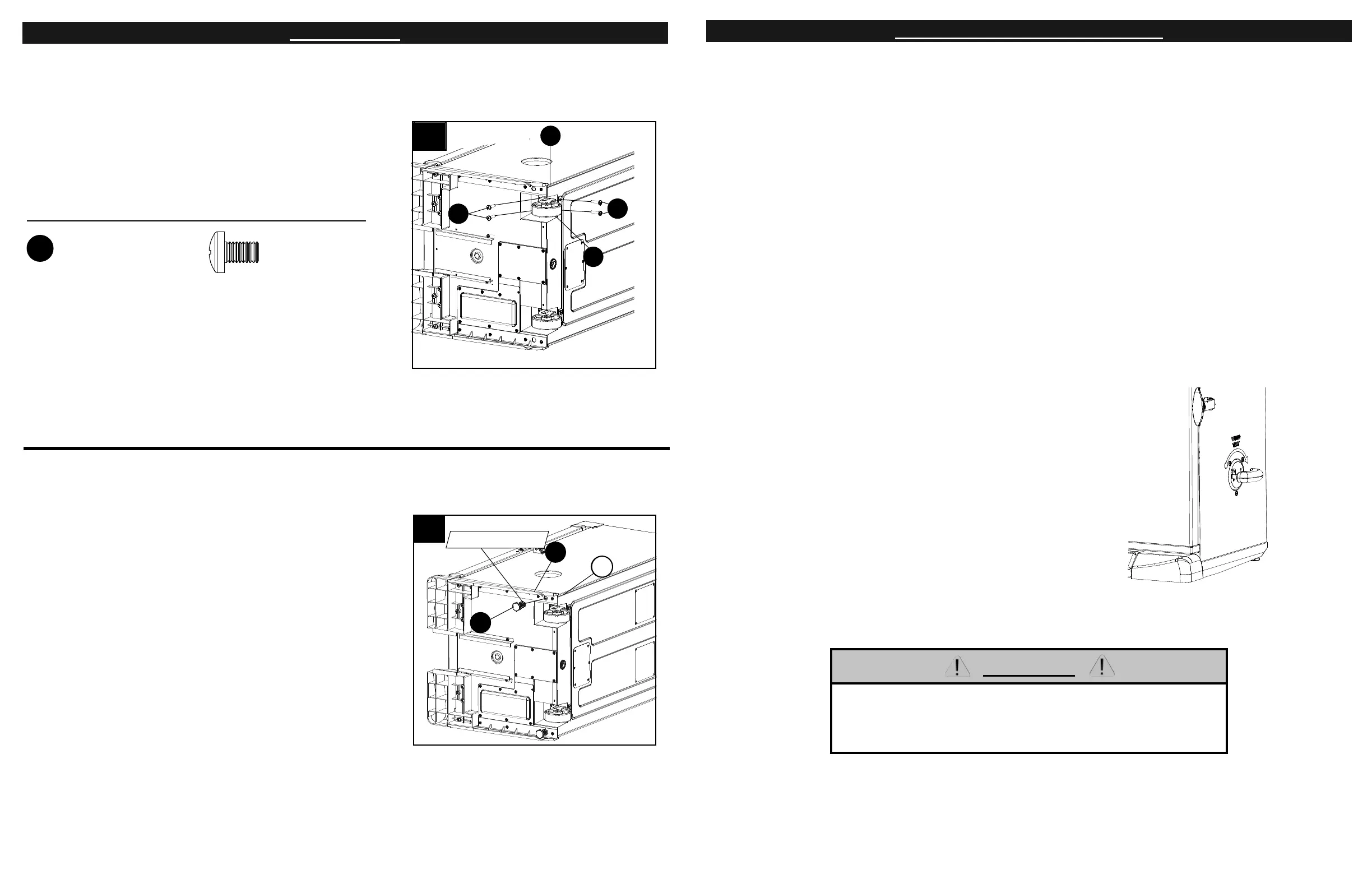

ÉTAPE 3
Placez la roulette (Y) au bas du corps du fumoir (A). Fixez
le tout à l’aide de vis M6 de 9 mm (CC). Répétez cette
étape de l’autre côté pour l’autre roulette (Y).
ÉTAPE 4
Insérez le pied à visser réglable (M) dans le bas du panneau
latéral (L) et fi xez-le au corps du fumoir (A). Répétez cette
étape de l’autre côté pour l’autre pied à visser réglable (M).
Remarque : Une fois le fumoir à l’endroit, réglez la hauteur
du pied à visser réglable (M) en le tournant dans le sens des
aiguilles d’une montre ou dans le sens contraire des aiguilles
d’une montre afi n que le fumoir soit de niveau. Une fois le
fumoir de niveau, fi xez la position des pieds en serrant les
écrous de serrage.
Vis M6 de 9 mm
x 8
CC
3
4
TENSION NUT
M
L
A
ÉCROUS DE SERRAGE
1
12
HOW TO USE WOOD CHIP LOADER
How to use wood chip loader:
• Before starting unit, place ½ cup of wood chips in chip loader.
• Never use more than ½ cup of wood chips at a time. Never use wood chunks.
• Insert wood chip loader into smoker. Wood chips should be level with top rim of wood chip loader.
• Turn handle clockwise in direction of arrow mark on smoker to unload wood. Wood will drop into
wood chip tray. Turn handle counterclockwise, to the upright position, and leave wood chip loader in
place.
• Check wood chip tray periodically to see if wood has burned down by removing wood chip loader and
looking into smoker through hole. Add more chips as needed.
• Wood chip loader must be pulled out completely from smoker when checking wood chip level.
Adding more wood during smoking process:
• Pull wood chip loader from smoker.
• Place wood chips in wood chip loader and insert into smoker.
• Turn handle clockwise in direction of arrow mark on smoker to unload wood. Wood will drop into wood
chip tray.
• Temperature may spike briefl y after wood is added. It will stabilize after a short time. Do not adjust
temperature setting.
Caution:
• Keep smoker door closed when adding wood chips.
• Wood chip loader will be HOT even if handle is not.
CAUTION
When door is opened a fl are up may occur. Should wood
chips fl are up, immediately close door, wait for wood chips
to burn down then open door again. Do not spray with water.

Masterbuilt SIGNATURE Series Specifications

General

Fuel Type	Charcoal
Material	Steel
Adjustable Damper	Yes
Wheels	Yes
Additional Features	Removable ash pan
Temperature Gauge	Yes
