Attaching the router to the table
WARNING!
Unplug the router before attaching the router to the table. Attach the router to the router
table after assembling the table.
1. Place the router table upright, with the front edge closest to the operator.
2. Be sure that the table is stable, and that it rests on both legs.
3. Remove the sub-base from the fixed-based router.
4. Hold the router upside down and align the
three holes in the centre of the table with the
holes in the router, as shown in fig 3. Position
the router so that the screw holes used for the
attachment are not directly above either of the
router handles.
5. Insert a flat-head screw through each of the
three holes in the router table and into the
holes in the router.
6. Hold the router with one hand, and use the
other hand to tighten each flat-head screw (9)
securely.
If a different router is installed (one that is not
included with the table), ensure that the diameter
of the router sub-base does not exceed
6 7/8" (17.5 cm). There are six mounting holes for
the router located in the centre of the table; the
distance between two opposite holes is
5 3/8" (13.7 cm). Select three appropriate holes to
mount the router to the table (fig4).
The adjusting hole in the table, as shown in fig 4, is
for adjusting the cutting height of the router that is
included (Model No. 054-6908-8) or CTC Model No.
054-6810-8.
OPERATING INSTRUCTIONS

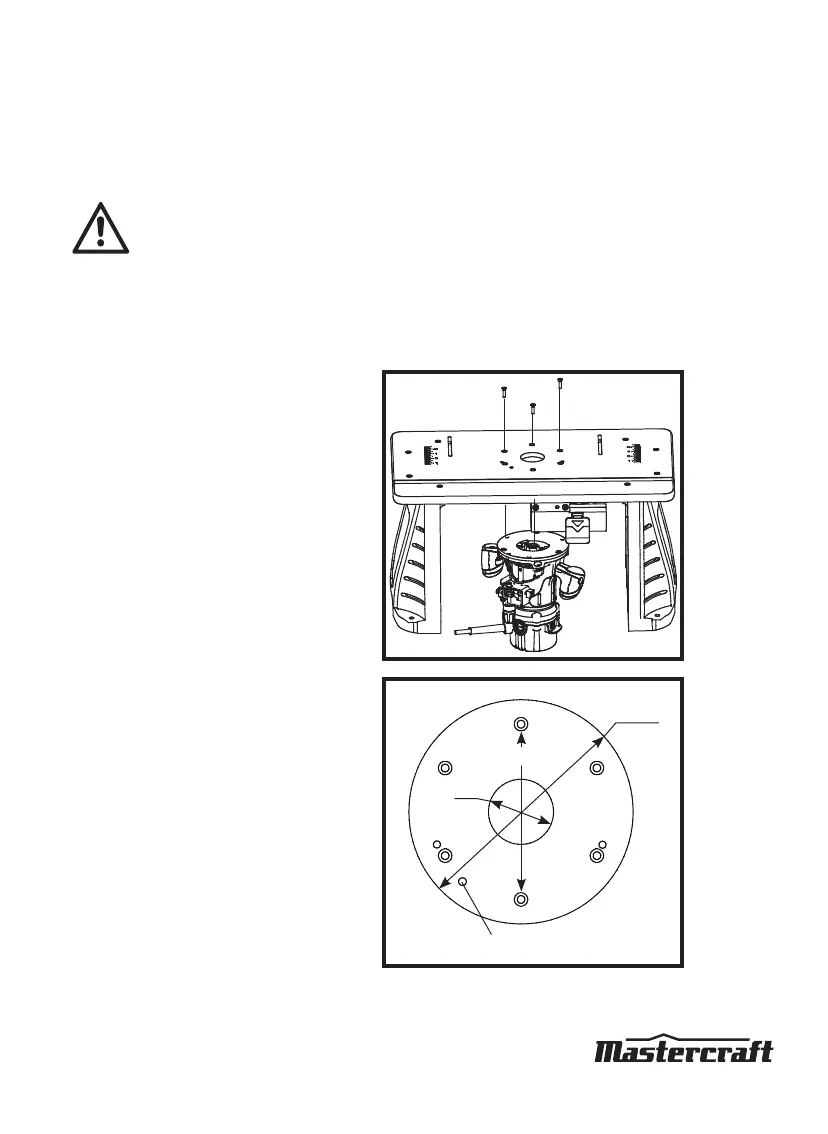

fig 3
fig 4
6-7/8"
5-3/8"
2"
Adjusting Hole
