OPERATING INSTRUCTIONS
TRIGGER SWITCH (fig 4)
1. To turn the impact driver ON, depress the
variable-speed trigger switch.
2. To turn it OFF, release the variable-speed trigger
switch.
VARIABLE SPEED (fig 4)
The variable-speed trigger switch delivers higher
speed with increased trigger pressure and lower
speed with decreased trigger pressure.
DIRECTION-OF-ROTATION
SELECTOR (fig 5)
The direction of rotation of the bit is reversible and is
controlled by a selector located above the variable-
speed trigger switch. With the impact driver held in
normal operating position:
Position the direction-of-rotation selector to the left
of the tool for forward rotation.
Position the direction-of-rotation selector to the right
of the tool for reverse rotation.
Position the direction-of-rotation selector in the centre to lock the tool off.
ELECTRIC BRAKE
To stop the impact driver, release the variable-speed trigger switch and allow the tool to come to a
complete stop. The electric brake quickly stops the rotation. This feature engages automatically when
you release the variable-speed trigger switch.

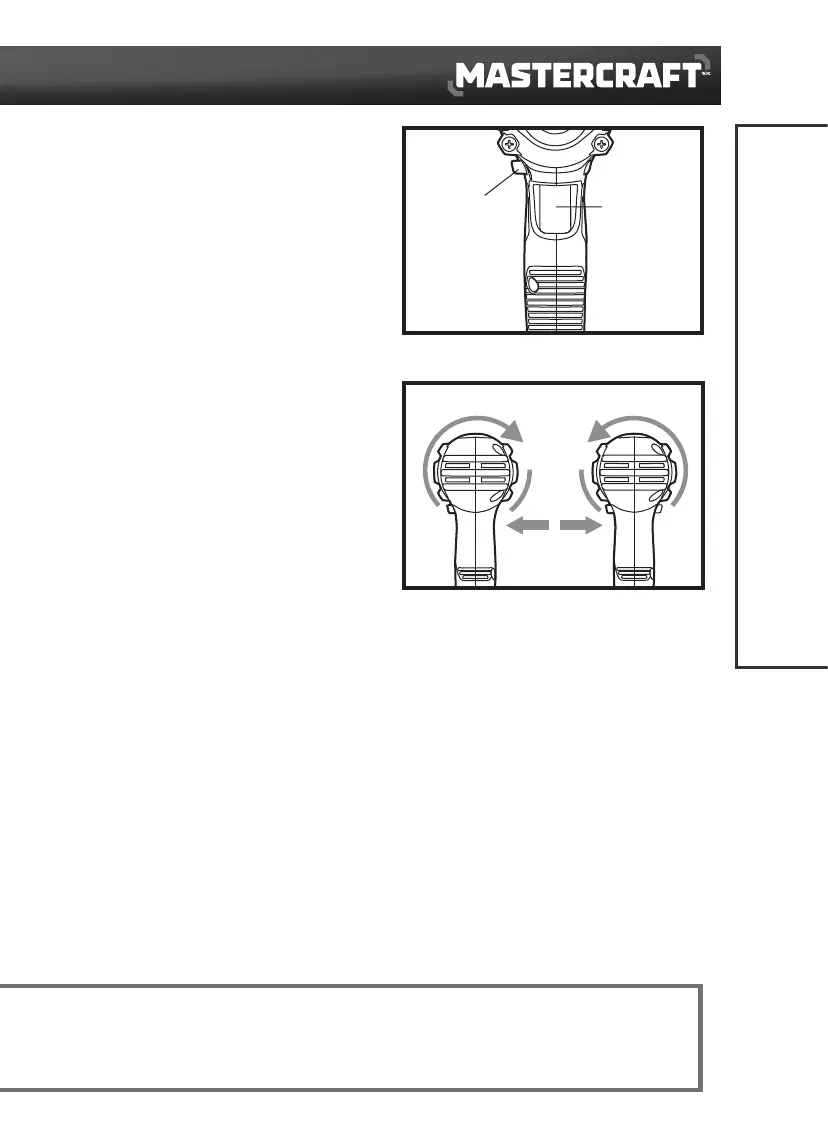

fig 4
Direction-of-
rotation selector
Variable-speed
trigger switch
fig 5
Forward Reverse
NOTICE:
• To prevent gear damage, always allow the impact driver to come to a complete stop before changing the direction of
rotation.
• The impact driver will not run unless the direction-of-rotation selector is engaged fully to the left or right.

MasterCraft 054-7520-2 Specifications

General

Brand	MasterCraft
Model	054-7520-2
Category	Drill
Language	English
