OPERATING INSTRUCTIONS
INSTALLING A DRIVER BIT OR SOCKET
BIT (fig 8)
1. Lock the variable-speed trigger switch by placing
the direction-of-rotation selector in the OFF
(centre) position.
2. With one hand, pull the sleeve toward the front of
the tool, and hold it in place.
3. With the other hand, insert the 1/4” (6.4 mm) bit
into the hex chuck in the bit retainer.
4. Release the sleeve, and verify that it returns to its original position.
REMOVING A DRIVER BIT OR SOCKET BIT (fig 8)
1. Lock the variable-speed trigger switch by placing the direction-of-rotation selector in the OFF
(centre) position.
2. Pull the sleeve toward the front of the tool, and hold it in place.
3. Remove the bit from the hex chuck in the bit retainer.
4. Release the sleeve.

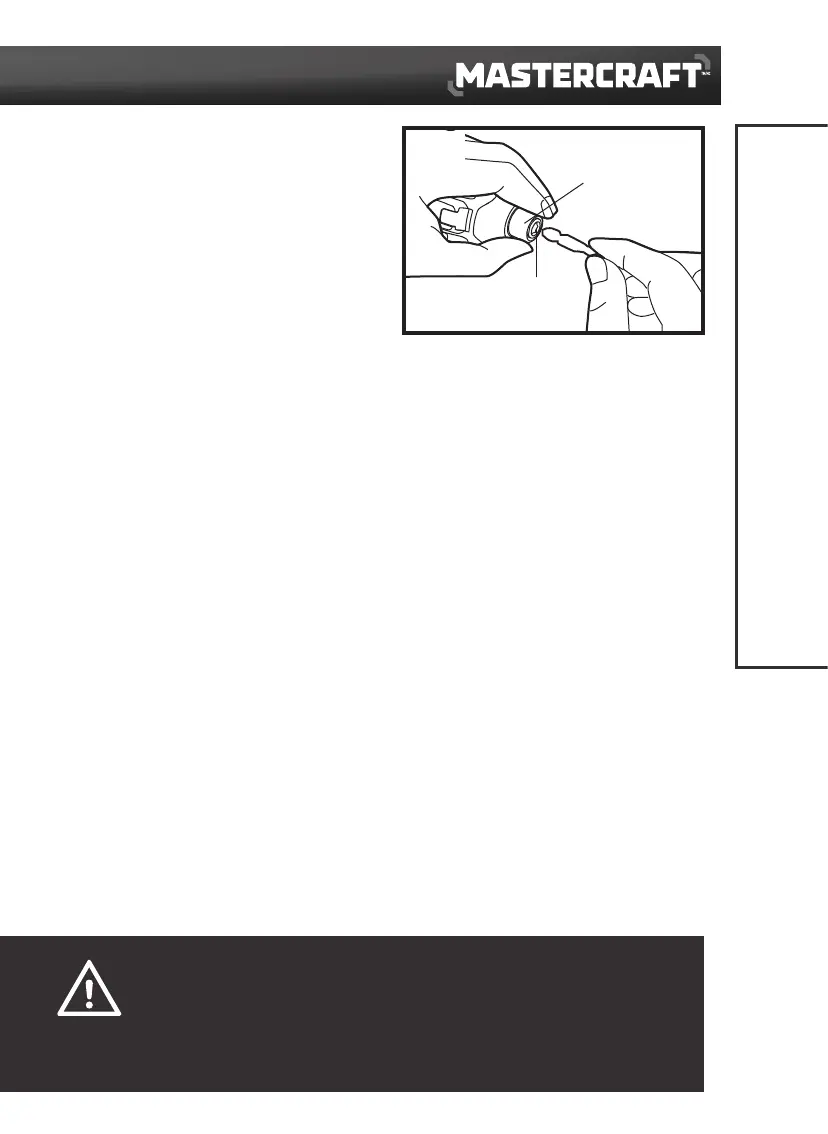

fig 8
Sleeve
Hex Chuck
WARNING!
• If the sleeve does not return to its original position, the bit is not correctly installed. Retry until the bit is
properly installed.
• Only use sockets designed for impact drivers. Sockets not designed for impact drivers could break and result
in user injury. Inspect sockets prior to use to ensure that they have no cracks or other visible damage.
• Use protective gloves when removing the bit from the tool, or allow the bit to cool down first. The bit may be
hot after prolonged use.
